Product Description

ℹ️ Basic Info
Model NO.
SW80
Material
Aluminum Alloy
Type
Swing
Open Style
Swing
Opening Type
Induced
Special Function
Security
Color
Silver
Certification
TUV, ISO9001, CE, En16005
Position
Interior
Surface Finishing
Finished
Transport Package
Cartons
Specification
555*55*83mm
Production Capacity
10000 Per Month
📦 Product Description

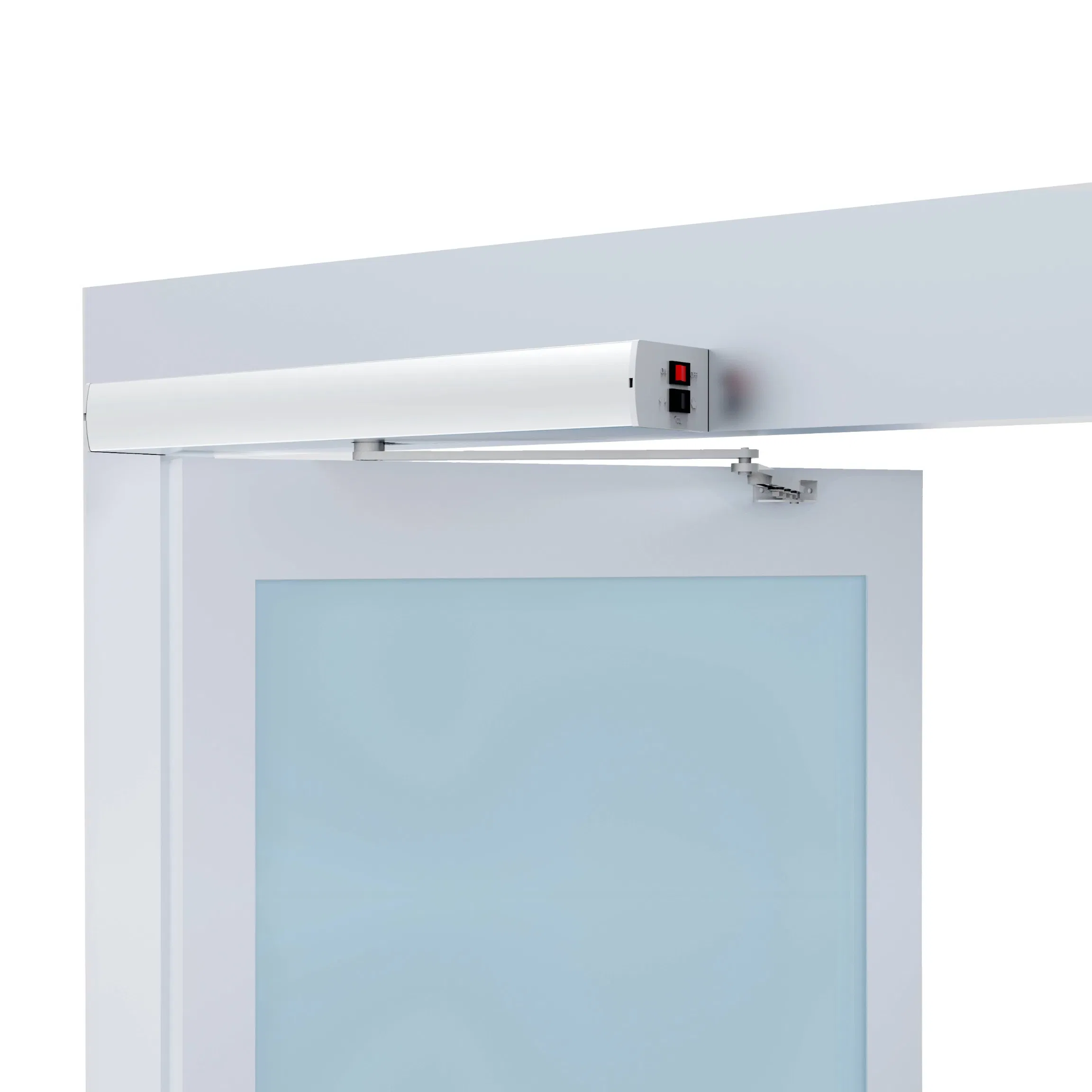

SW80 Automatic Swing Door Operator

⚡

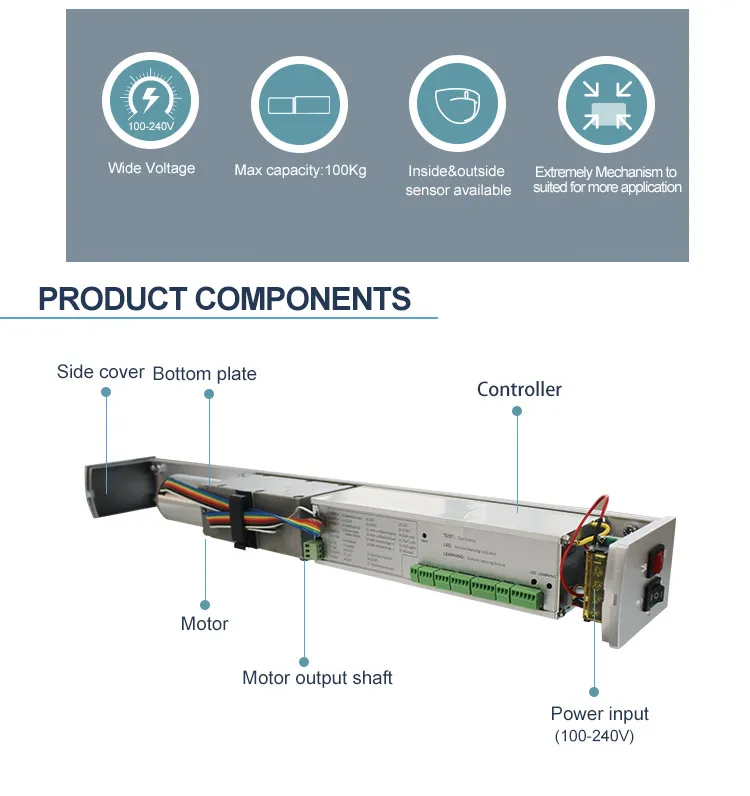

Wide voltage support.
⚖️
Max capacity: 100kg.
🔍

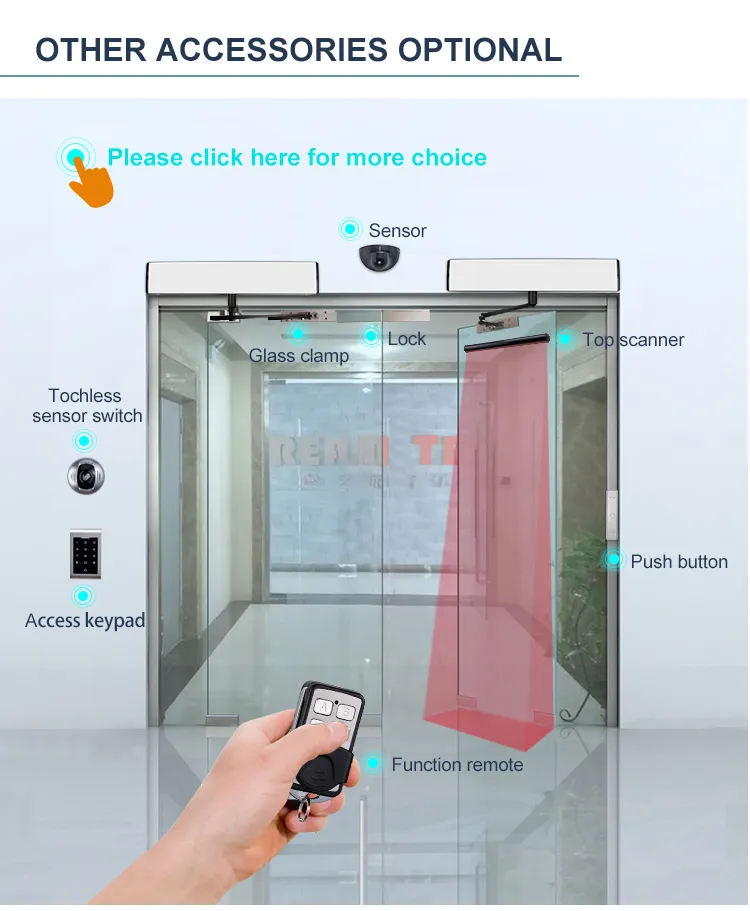

Outside and inside sensor available.
🛠️

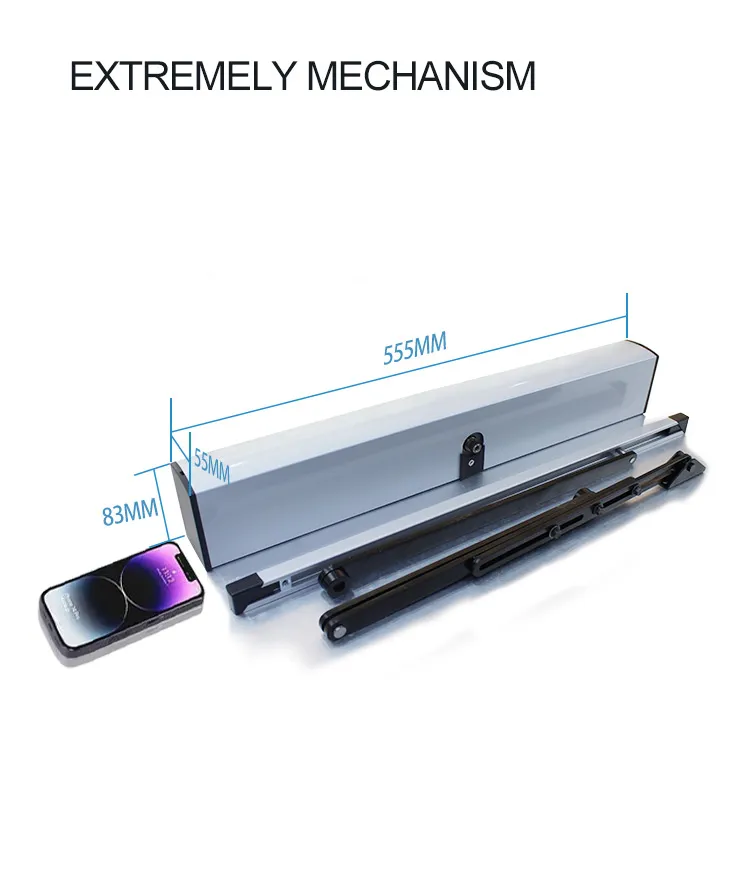

Extremely mechanism suited for multiple applications.
✨
Operator width just 55mm - powerful, simple, and beautiful.

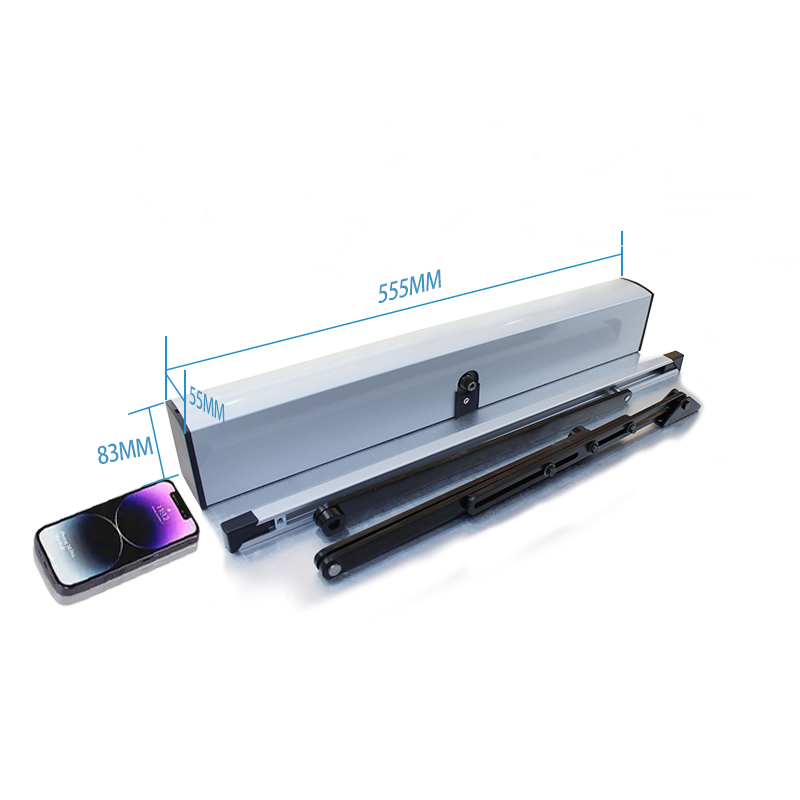

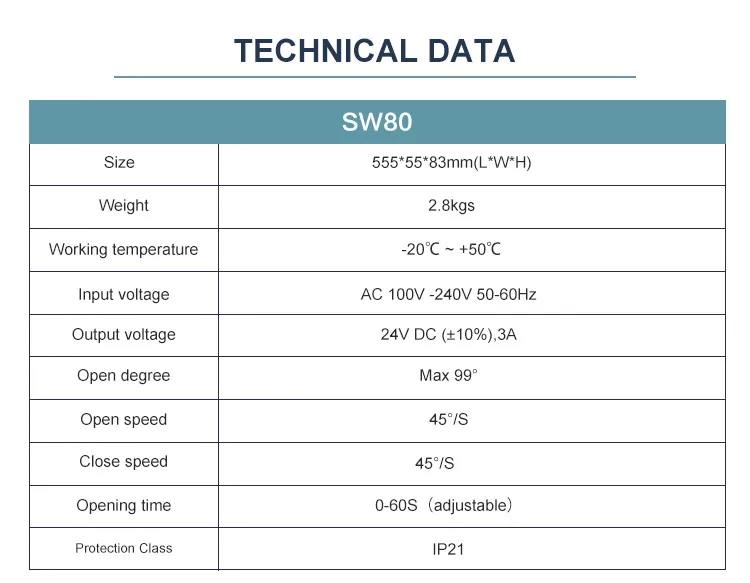

Size555*55*83mm
Weight2.8kgs
Working temperature-20ºC~+60ºC

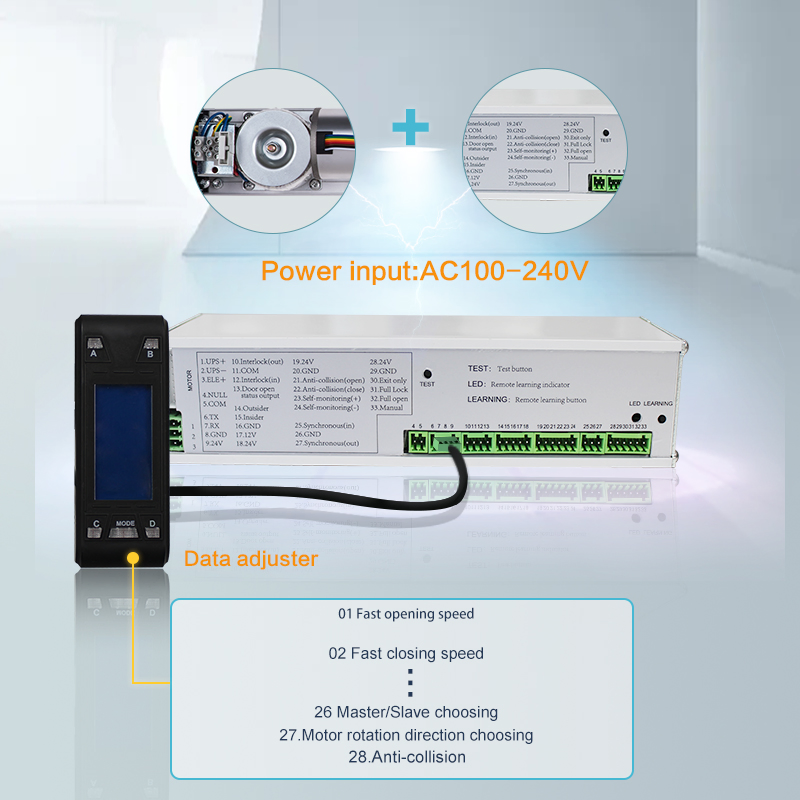

Input voltageAC 100V-240V 50-60Hz
Output voltage24V DC(±10%), 3A
Open degreeMax 99°
Open speed45°/S
Close speed45°/S
Opening time0-60S (adjustable)
Protection classIP21
Automatic Door System 1
Automatic Door System 2
Automatic Door System 3
Automatic Door System 4
Automatic Door System 5
Automatic Door System 6
Automatic Door System 7
Automatic Door System 8
Automatic Door System 9
Automatic Door System 10
Automatic Door System 11
Automatic Door System 12
Automatic Door System 13
Automatic Door System 14
🏢 Profile Summary

Specializing in automatic door research, development, production, and sales. The product range includes automatic sliding doors, automatic swing doors, telescopic sliding doors, hermetic doors, breakout systems, and related accessories. With over 13 years of focus in the automatic door industry, products are distributed globally to Europe, America, the Middle East, South America, and Southeast Asia. The manufacturing processes and products have obtained certifications including CE, TUV, EN16005, UKCA, CB, and RoHS.

❓ Frequently Asked Questions
1. What is the maximum door weight the SW80 operator can handle?
The SW80 automatic swing door operator has a maximum capacity of 100kg.
2. Does the SW80 support different input voltages?
Yes, it features wide voltage support, compatible with AC 100V-240V at 50-60Hz.
3. Can the opening and closing speeds be adjusted?
The standard speed is 45°/S, and the opening time can be adjusted between 0-60 seconds to suit your specific application.
4. What is the protection rating for this door operator?
The device has an IP21 protection class rating, making it suitable for interior installations.
5. What certifications does this product hold?
The product is highly certified, meeting TUV, ISO9001, CE, and En16005 standards.
6. What are the physical dimensions of the operator?
The operator is compact with dimensions of 555*55*83mm, and a slim width of only 55mm for a sleek installation.
