Basic Information
Model NO.
Scenic-Air Shower
Structure
Bilateral Air Shower
Feature
Automatic Door Air Shower
Raw Material
SUS304, SUS201, Galvanized Steel
Product Description

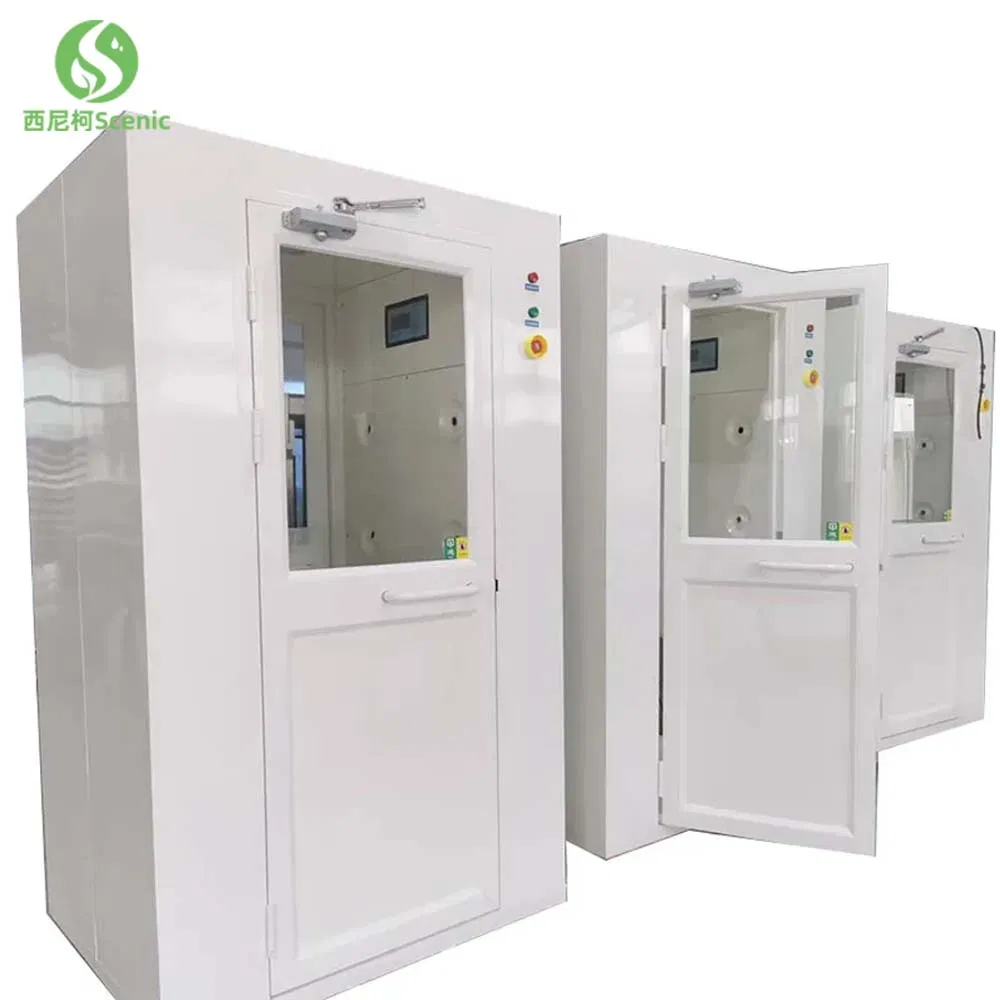

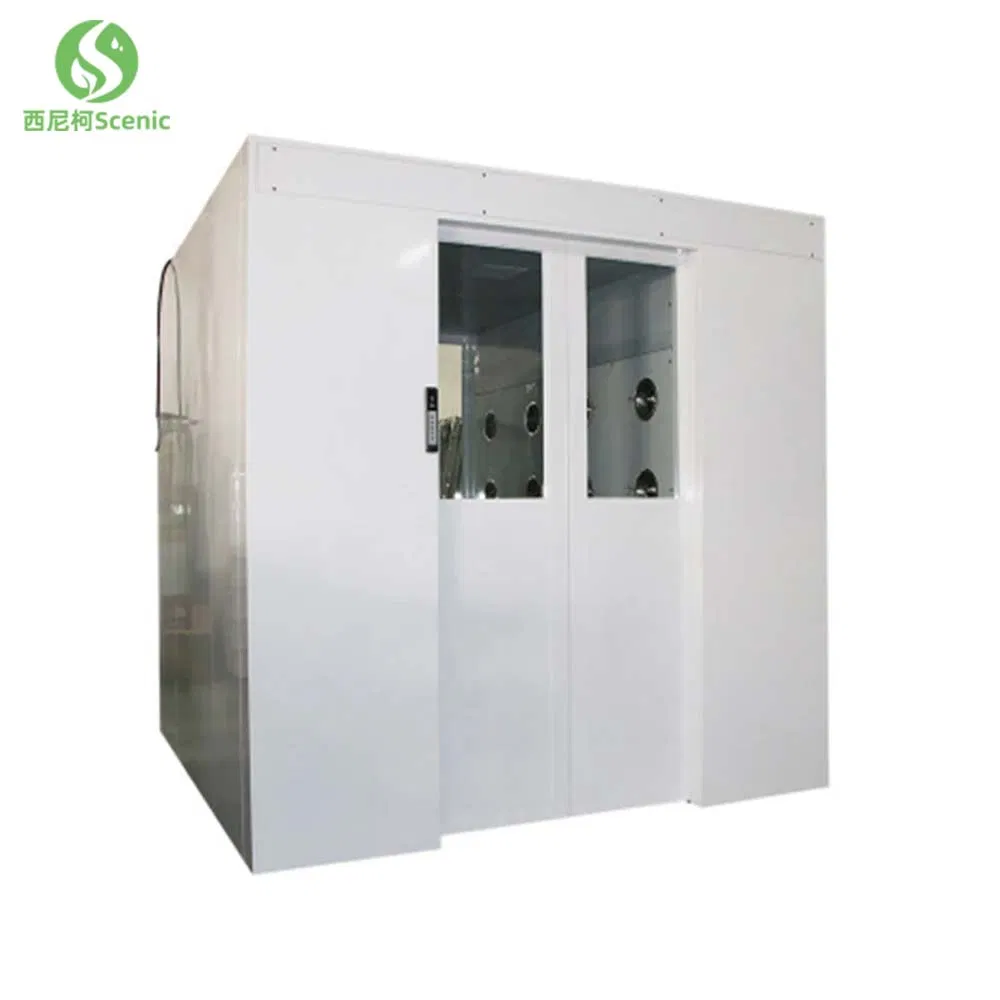

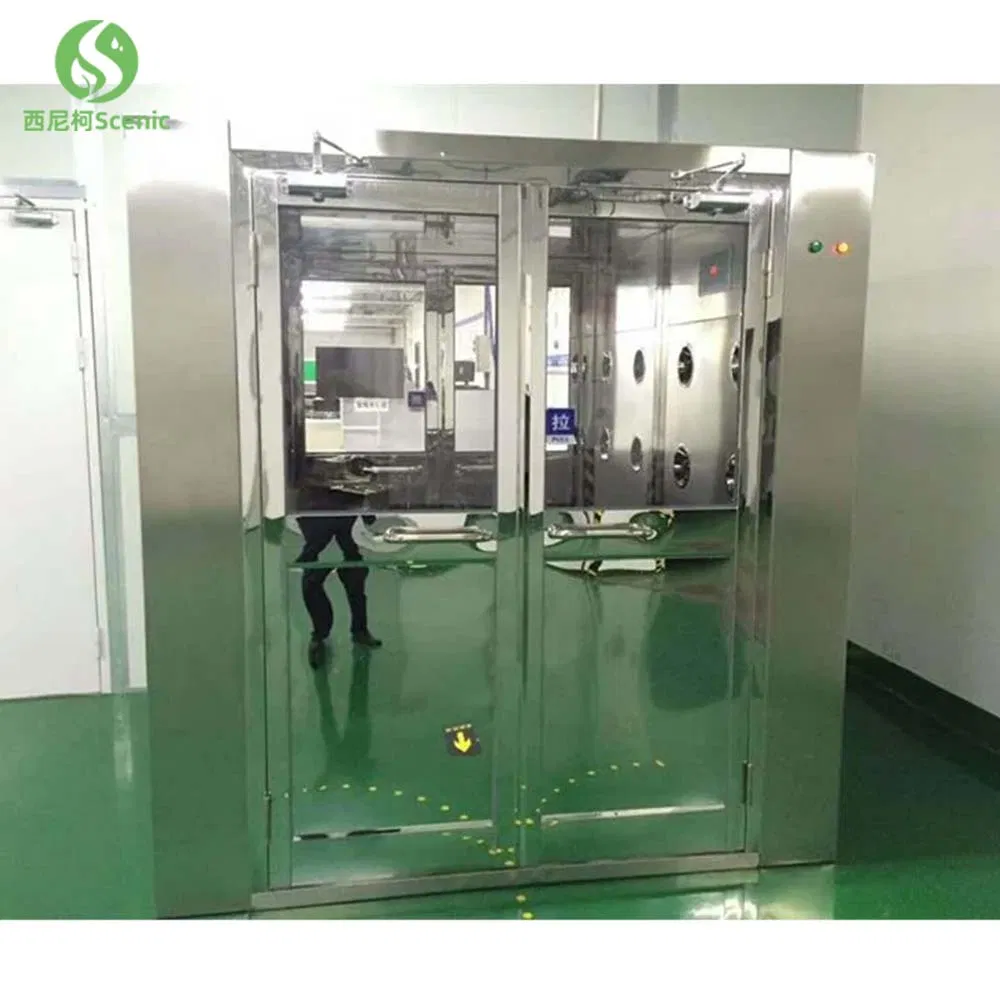

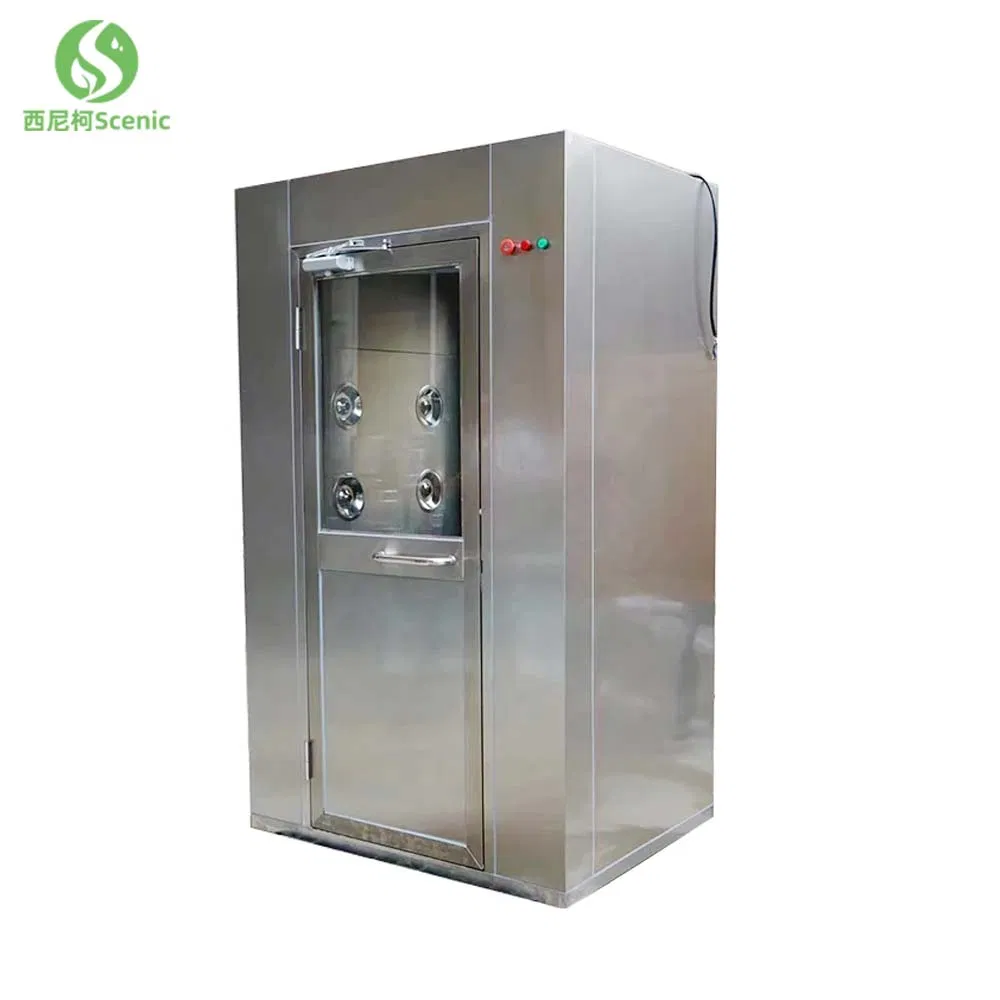

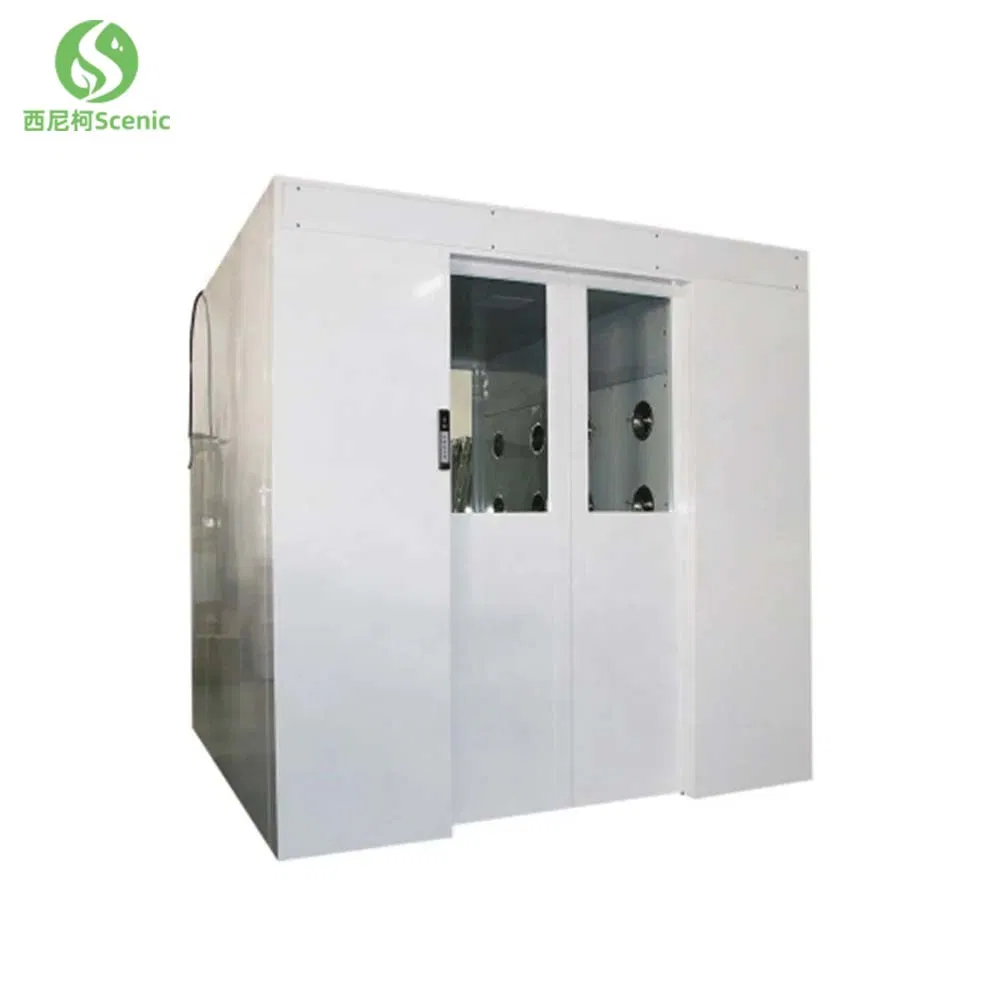

The Air Shower Room serves as an essential purifying apparatus strategically installed between the clean room and the unclean room. Its purpose is to provide a shower effect and efficiently remove dust from personnel or objects entering the pristine environment. This system can effectively minimize dust sources, ensuring a spotless atmosphere.
Shower Methods: Versatile options include Single-side, Double-side, Three-side, and Top shower, catering to various industrial needs.

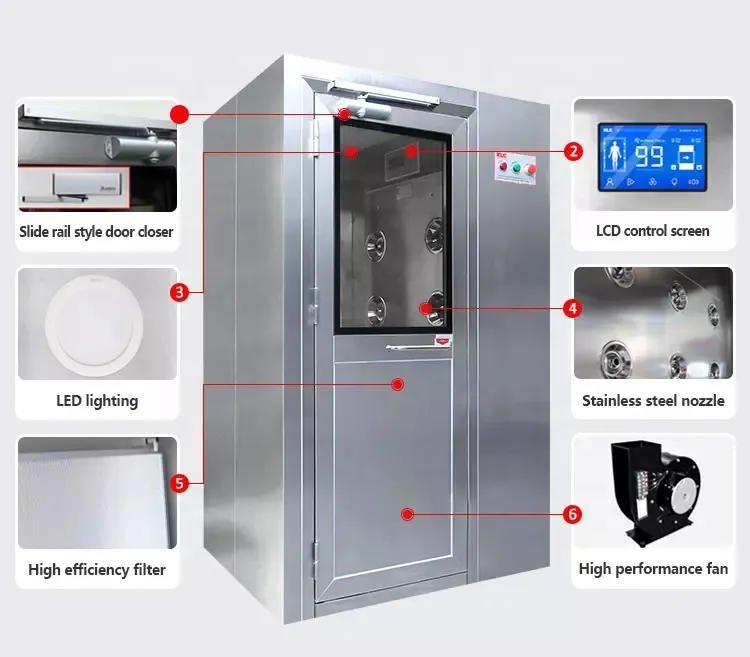

Core Specifications & Features
- Material: Robust and durable Stainless Steel SUS304 or Galvanized Steel.

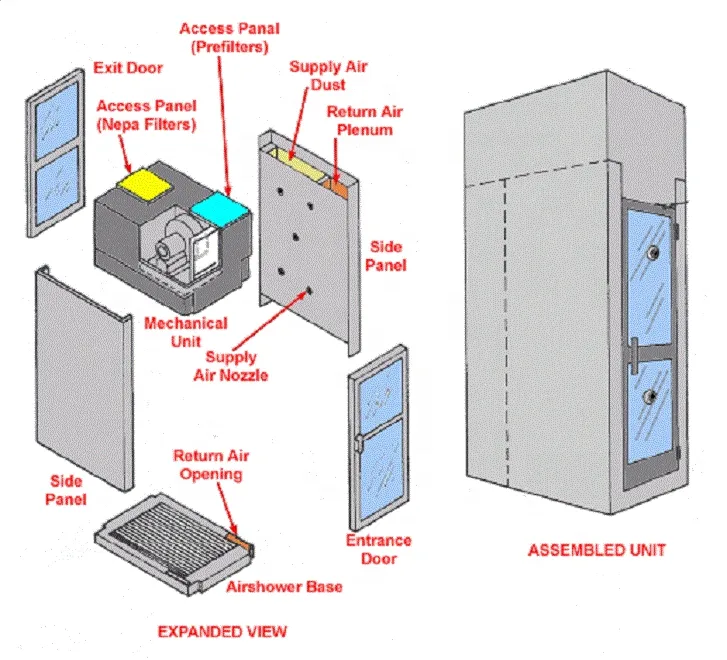

- Electronic Interlock System: When Door A is open, Door B is securely locked. Neither can be opened during blowing.
- Emergency Off Button: Instant opening of both doors for urgent situations.

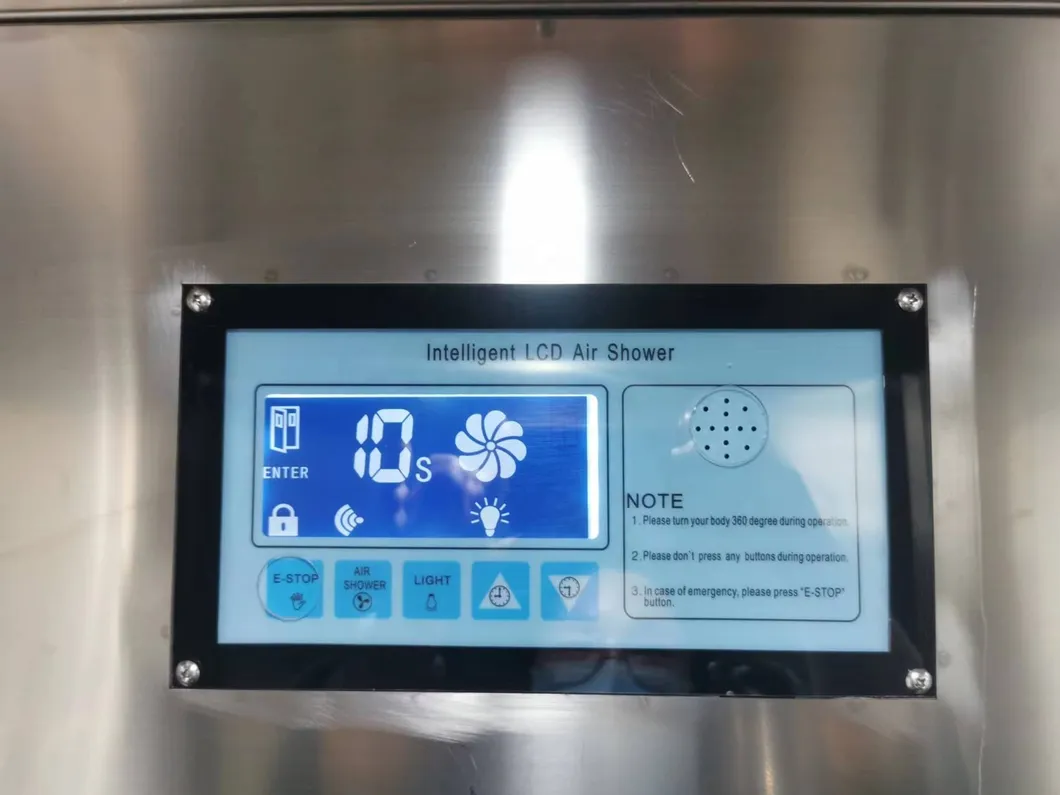

- Color LCD Screen: Touch-point control for blowing time, lamp settings, and HEPA filter reminders.
- Infrared Sensor: Enables automatic blowing and cessation for hands-free operation.

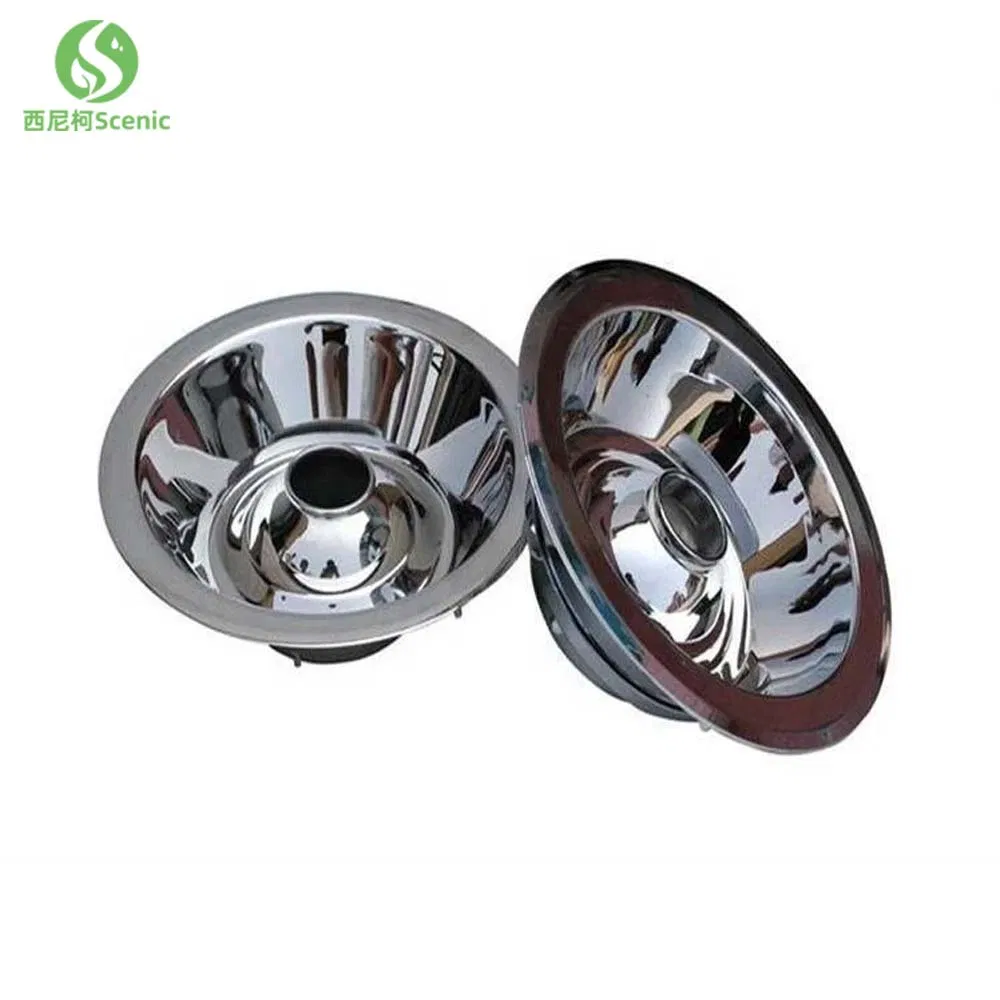

- 360-Degree Nozzles: Rotatable stainless steel nozzles for optimal particle removal.
- High-Quality Hardware: Features Germany Dorma Door Closers for reliability and stability.
- Dual-Side Blowing: High-velocity wind speed (25m/s+) at the nozzle outlet.
Component Highlights

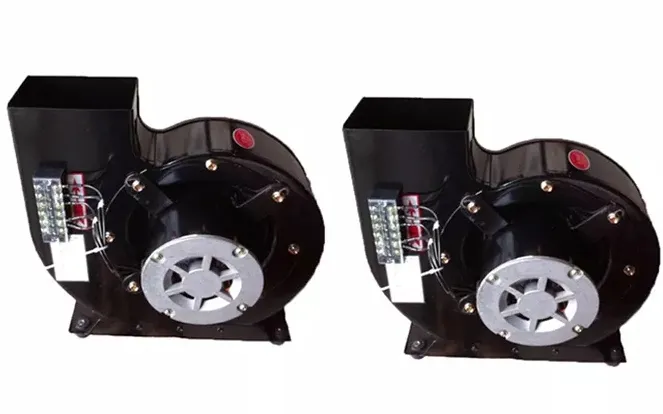

Infrared Sensor Blower: Engineered to deliver a large air volume with minimal noise. It boasts an impressive wind speed exceeding 25m/s at the nozzle outlet and over 18m/s on personnel.
Technical Parameters
| Model |
Scenic-AR-1160 |
Scenic-AR-1500 |
Scenic-AR-2000 |
Scenic-AR-2500 |
| External Size (mm) |
1160*1000*2050 |
1290*1500*2050 |
1390*2000*2050 |
1390*2500*2050 |
| Internal Size (mm) |
790*1000*1950 |
790*1500*1950 |
790*2000*1950 |
800*2500*1950 |
| Consumed Power |
1100w |
1500w |
2200w |
2500w |
| No. of Nozzles |
12pcs |
18pcs |
24pcs |
48pcs |
| HEPA Filter |
H13 or H14, 99.99%@0.3um |
| Capacity (Persons) |
1-2 |
2-3 |
3-4 |
4-6 |
Frequently Asked Questions
What is the primary function of an air shower?
It acts as a buffer and purification barrier between clean and non-clean areas, using high-velocity air to blow away dust and particles from personnel and cargo.
How does the electronic interlock system ensure safety?
The system prevents both doors from being opened simultaneously. If one door is open, the other remains locked, maintaining the air pressure and cleanliness of the clean room.
Can the air shower duration be adjusted?
Yes, the air shower time is fully adjustable via the LCD control panel, typically ranging from 0 to 99 seconds, with a standard factory setting of 10 seconds.
What materials are used for the nozzles and body?
The nozzles are made of 360-degree rotatable stainless steel. The main body can be constructed from SUS304 stainless steel, SUS201, or galvanized steel with a baked finish.
Are custom sizes available for specific facility needs?
Absolutely. While we offer standard models (Scenic-AR-1160 to 2500), all specifications and dimensions can be customized according to specific customer requirements.
What type of filtration efficiency should I expect?
Our units utilize H13 or H14 HEPA filters, providing a filtration efficiency of 99.99% to 99.995% for particles as small as 0.3 micrometers.
