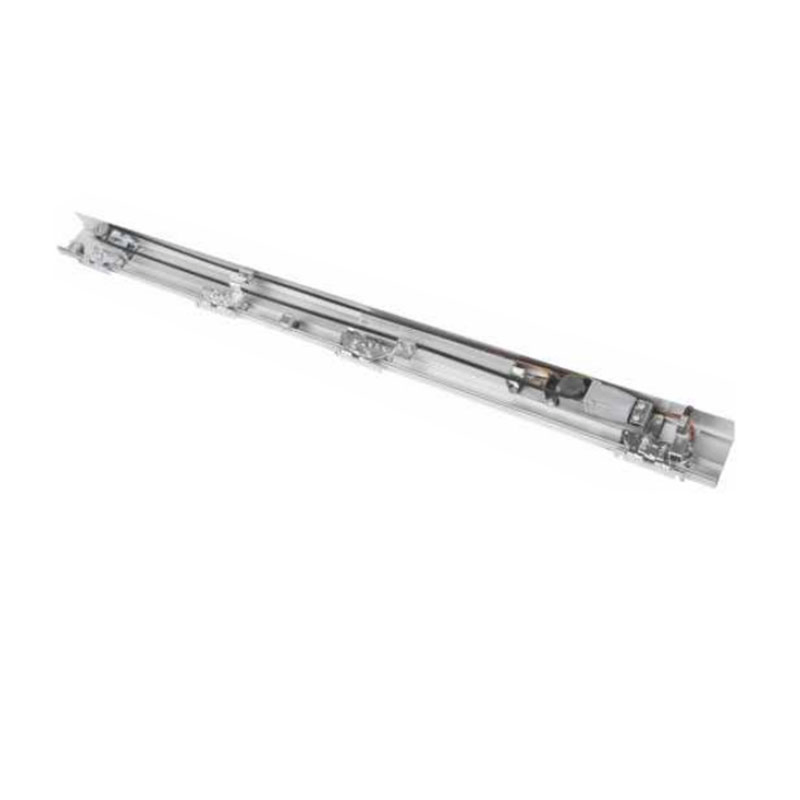

Hh-150 Unit Automatic Sliding Door Operating System
Hh-150 Unit Automatic Sliding Door Operating System
Hh-150 Unit Automatic Sliding Door Operating System
Hh-150 Unit Automatic Sliding Door Operating System
Hh-150 Unit Automatic Sliding Door Operating System
1 / 5
Hh-150 Unit Automatic Sliding Door Operating System
Hh-150 Unit Automatic Sliding Door Operating System
Hh-150 Unit Automatic Sliding Door Operating System
Hh-150 Unit Automatic Sliding Door Operating System
Hh-150 Unit Automatic Sliding Door Operating System

Hh-150 Unit Automatic Sliding Door Operating System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
NF-HH150Unit
Material
Aluminum Alloy
Type
Sliding
Open Style
Sliding
Opening Type
With Remote Control
Special Function
Security
Color
Silver
Certification
RoHS, CE
Position
Commercial
Maximum Load
Single Door 150kg
Control Method
Sensor Activation, Adjustment
Safety Features
Anti-Fall, Rebound on Obstruction, Anti-Pinch
Origin
China
Production Capacity
50000/Year
Packaging & Delivery
Package Size
150.00cm * 90.00cm * 30.00cm
Gross Weight
5.600kg
Lead Time
3 days (1 - 1 Sets); To be negotiated (> 1 Sets)
Product Characteristic

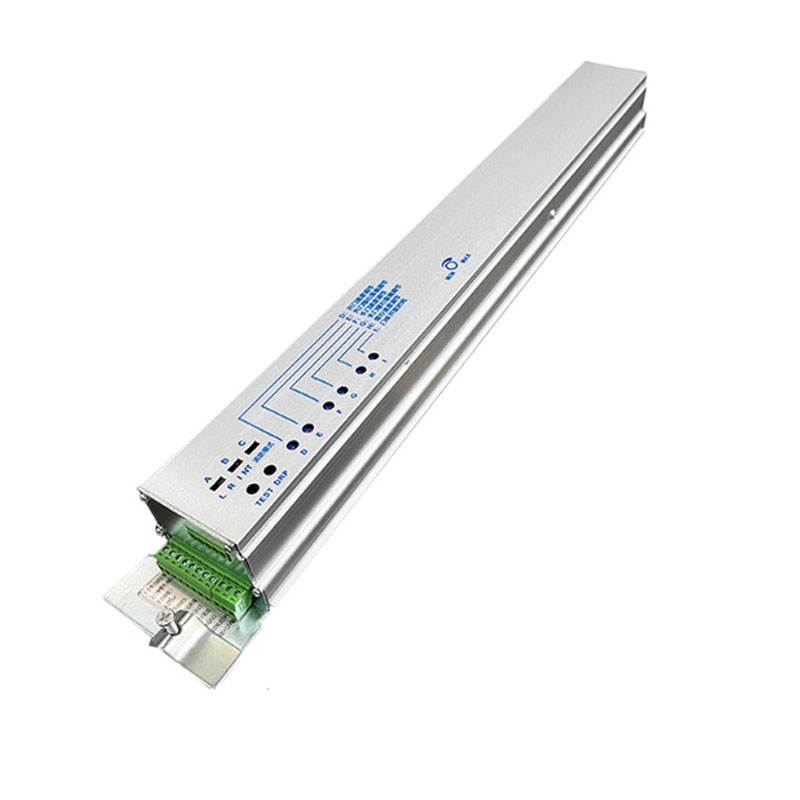

The microcomputer control system drives the motor and controls the door to operate in the set manner. Wide voltage power supply design, dual door interlock and multiple sets of interfaces.
Adopting an integrated design of European motors and gearboxes, it has strong driving power, smooth operation, and high output power for large doors.
Special lubrication measures, silent wheels, and professionally designed lifting components greatly reduce operating noise.
Power on self-test program: the door automatically rebounds when encountering obstacles to ensure personnel safety.
Technical Parameters
Parameter Single Door Double Door
Door leaf weight1x150kg2x150kg
Door leaf width750-1600mm650-1250mm
Installation methodSurface installation
Power supply voltageAC220V, 50Hz
Opening speed150mm/s-460mm/s (adjustable)
Closing speed130mm/s-460mm/s (adjustable)
Opening hours0-8s (adjustable)
Manual thrust<40N / <50N
Humidity range-20 ~ +50°C
Key Features

The automatic sliding door opener is widely used in hotels, airports, hospitals, shopping centers, and office buildings. It is quiet, safe, stable, sturdy, and efficient.

High performance and logical mechanical configuration
Backup battery option for power cuts
Intelligent microprocessor with self-learning functions
Easy to program, adjust, and maintain
Space-saving and user-friendly modern design
Suitable for offices, shops, cafes, and clubs
Product Display
Automatic Sliding Door Operating System 1

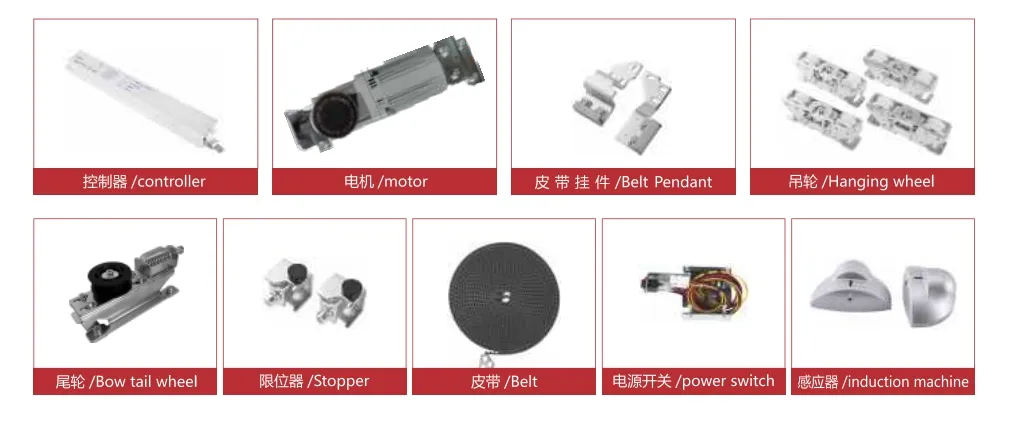

Automatic Sliding Door Operating System 2
Automatic Sliding Door Operating System 3

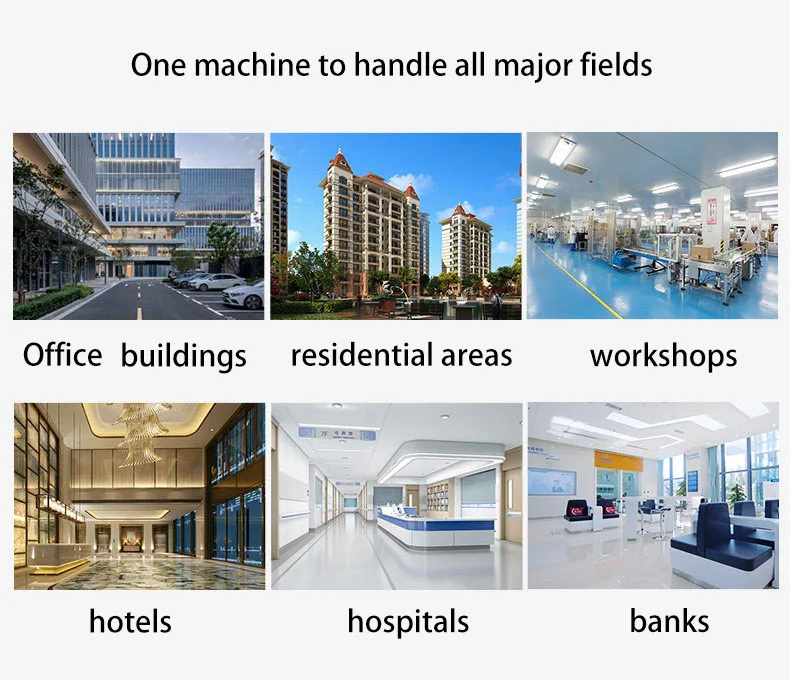

Automatic Sliding Door Operating System 4

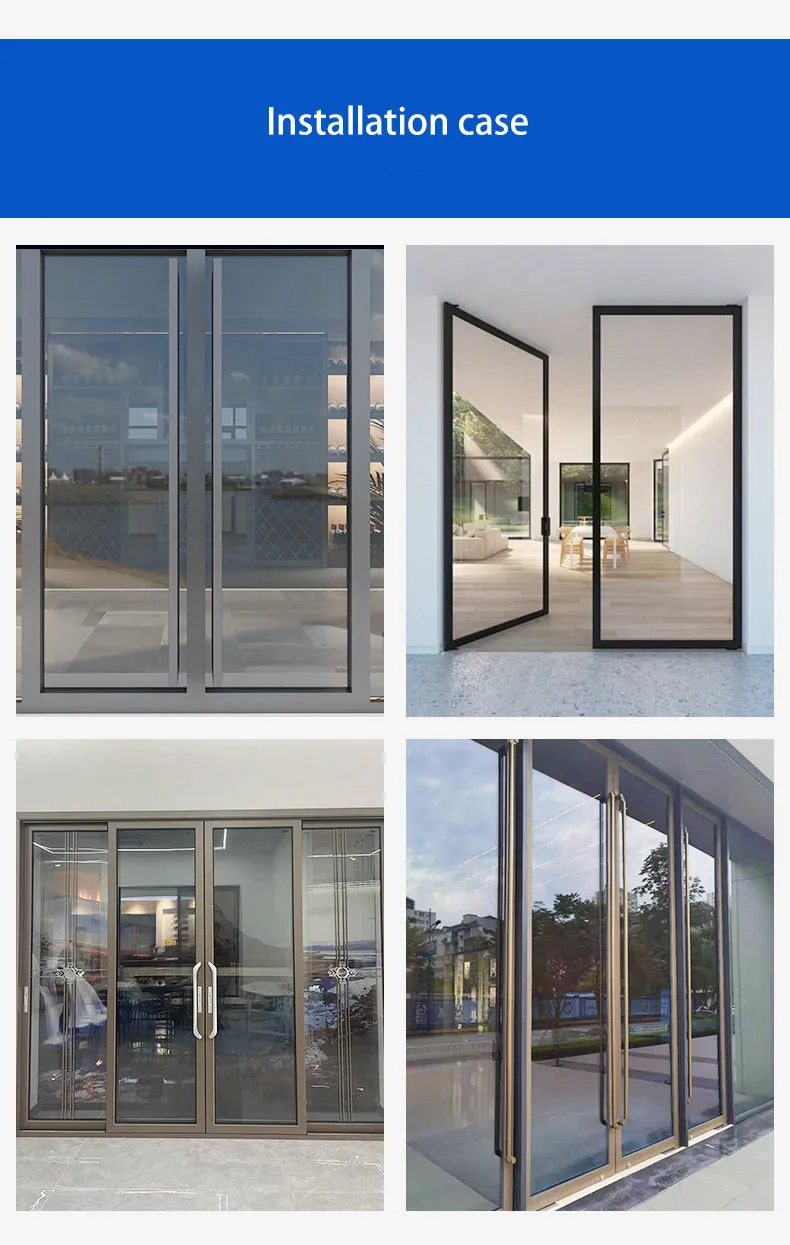

Automatic Sliding Door Operating System 5
Frequently Asked Questions
What is the maximum load capacity of the NF-HH150 system?
The system supports a maximum load of 150kg for a single door leaf, or 2x150kg for double door configurations.
Does the door operate during a power outage?
Yes, a backup battery can be selected to ensure the door continues to run normally when the main power is cut off.
What safety mechanisms are built into the operator?
The system includes a power-on self-test program and automatically rebounds when encountering obstacles. It also features anti-fall and anti-pinch designs.
Is the opening and closing speed adjustable?
Yes, the opening speed can be adjusted between 150mm/s and 460mm/s, and the closing speed between 130mm/s and 460mm/s.
What kind of environments is this sliding door system suitable for?
It is ideal for high-traffic commercial areas such as office buildings, hotels, airports, hospitals, shopping centers, and cafes.
How does the system ensure quiet operation?
The operator uses an integrated European motor and gearbox design, special lubrication, and silent wheels to significantly reduce mechanical noise.
