Stable and Silent Automatic Sliding Door System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

ML400S

Material

Aluminum Alloy

Type

Sliding

Open Style

Sliding

Opening Type

Power Driven

Special Function

Security

Color

Silver

Certification

TUV, CCC, ISO9001, RoHS, CE

Position

Commercial

Surface Finishing

Finished

Transport Package

Cartons

Specification

30KG

Origin

China

HS Code

9032899099

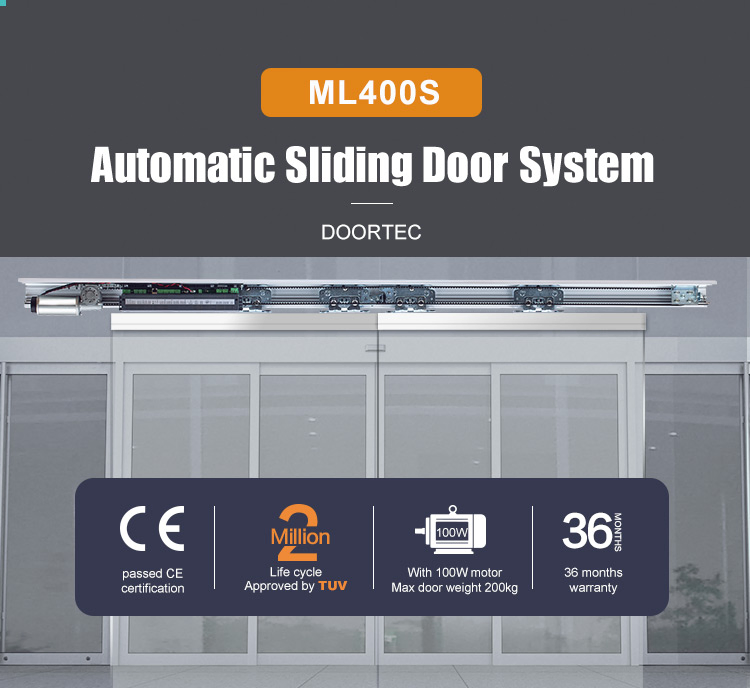

ML400S Automatic Sliding Door System

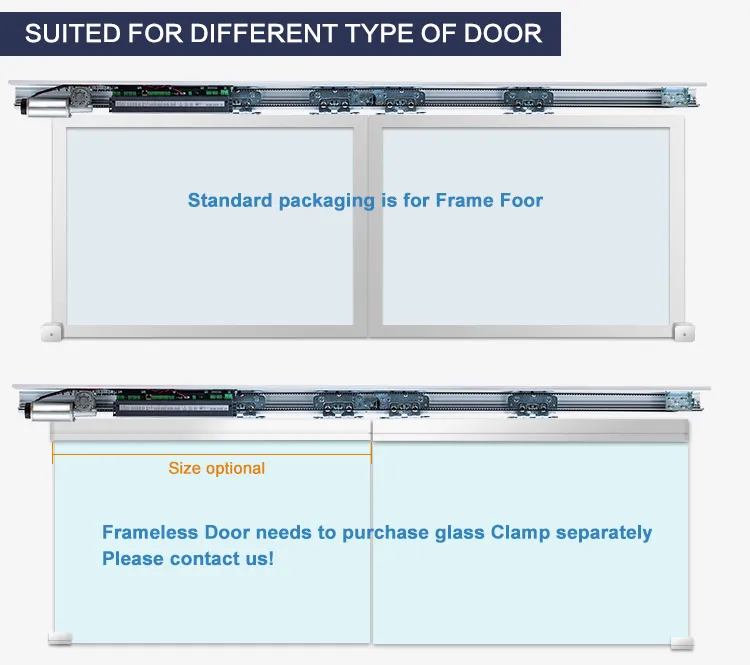

Automatic sliding door system for glass door

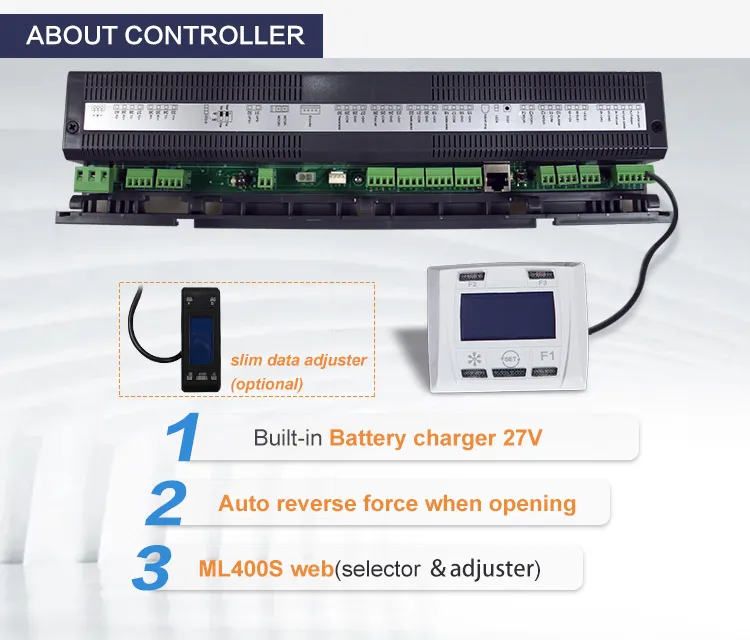

➔Intelligent micro control and precision machinery manufacturing

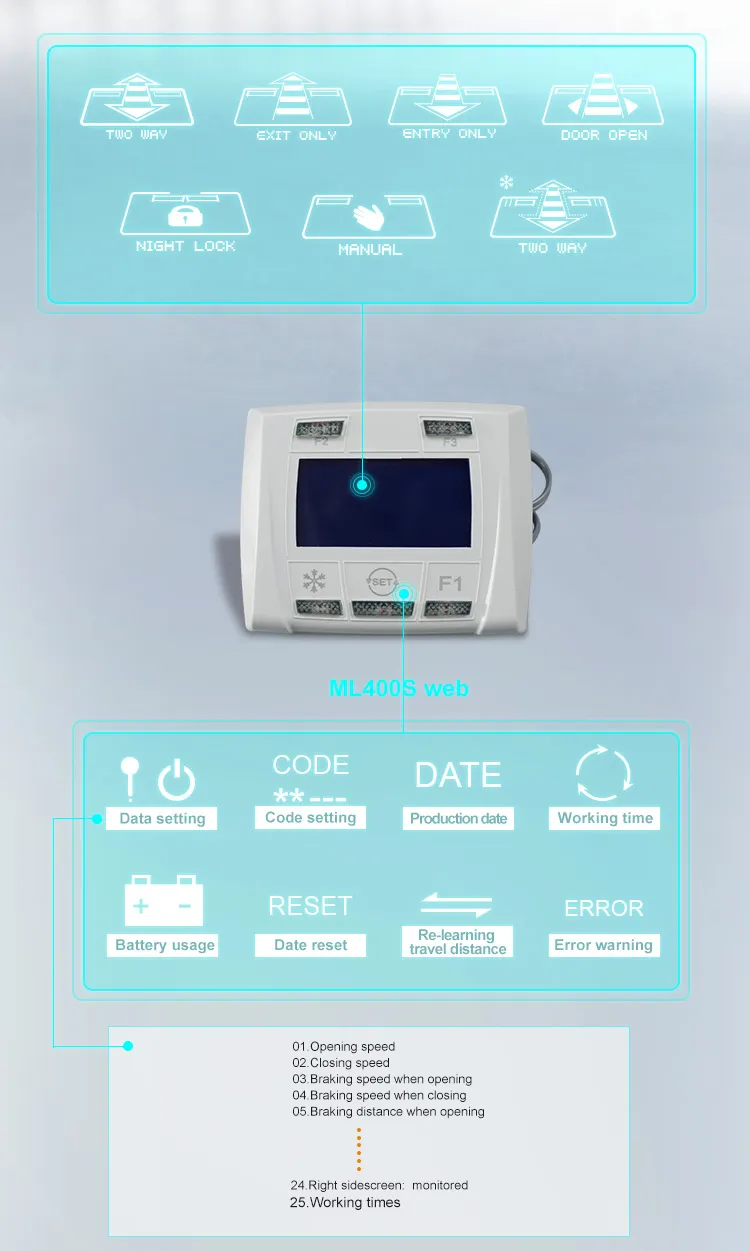

➔Smart self-learning system

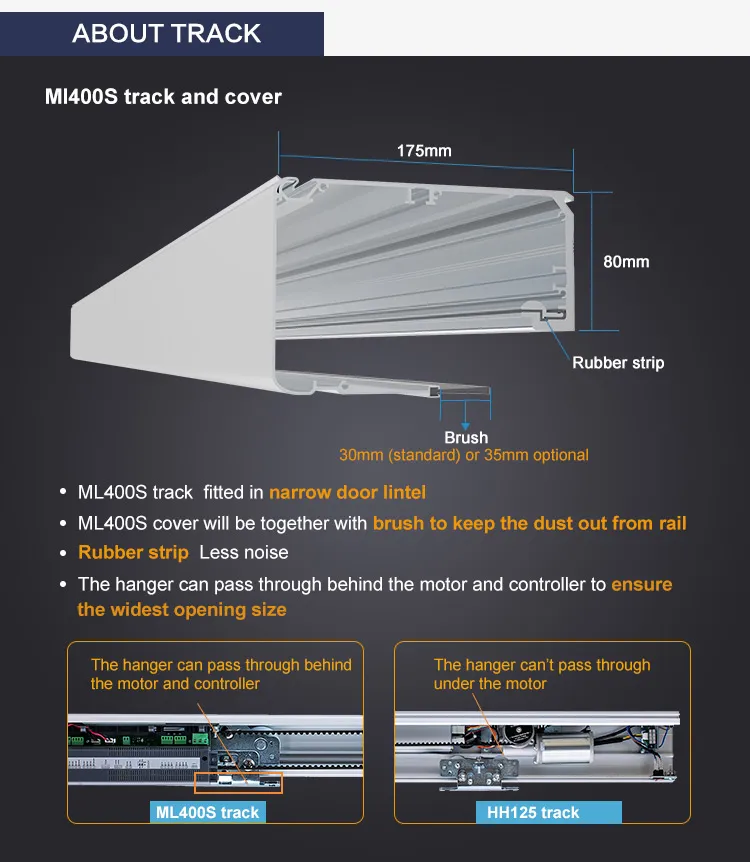

➔Double track and rubber design, low noise, open and close smoothly

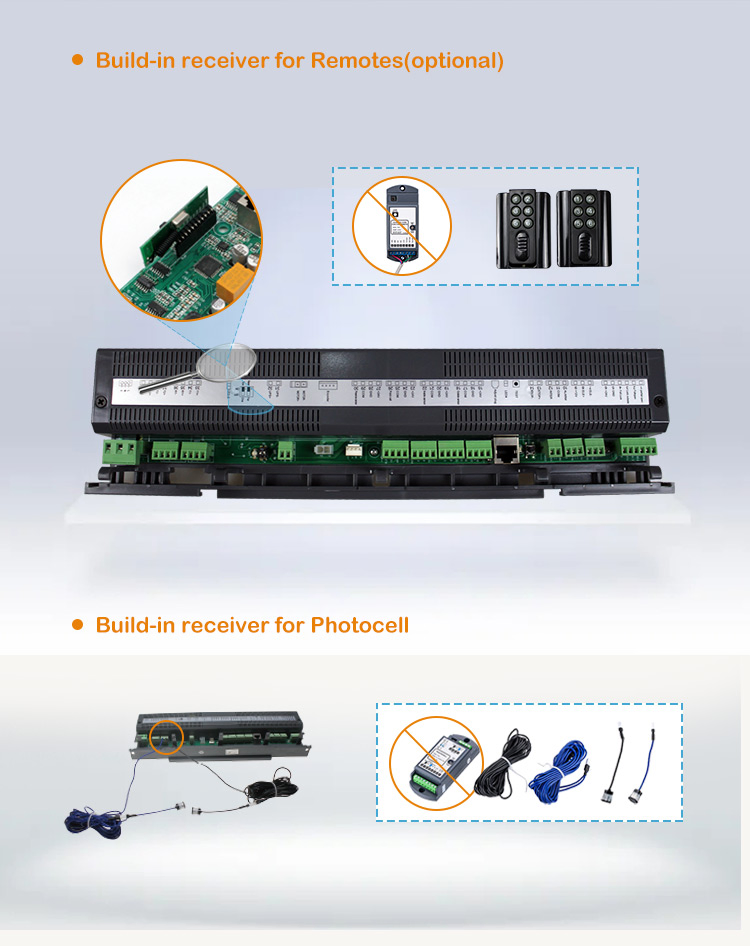

➔Built-in receiver working with learning code remote

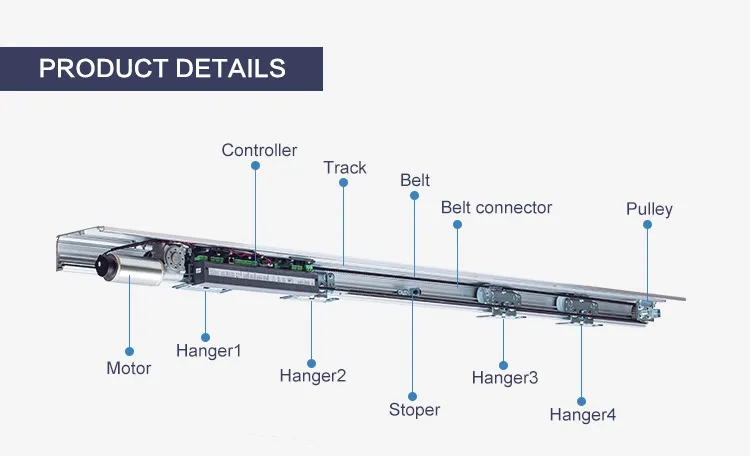

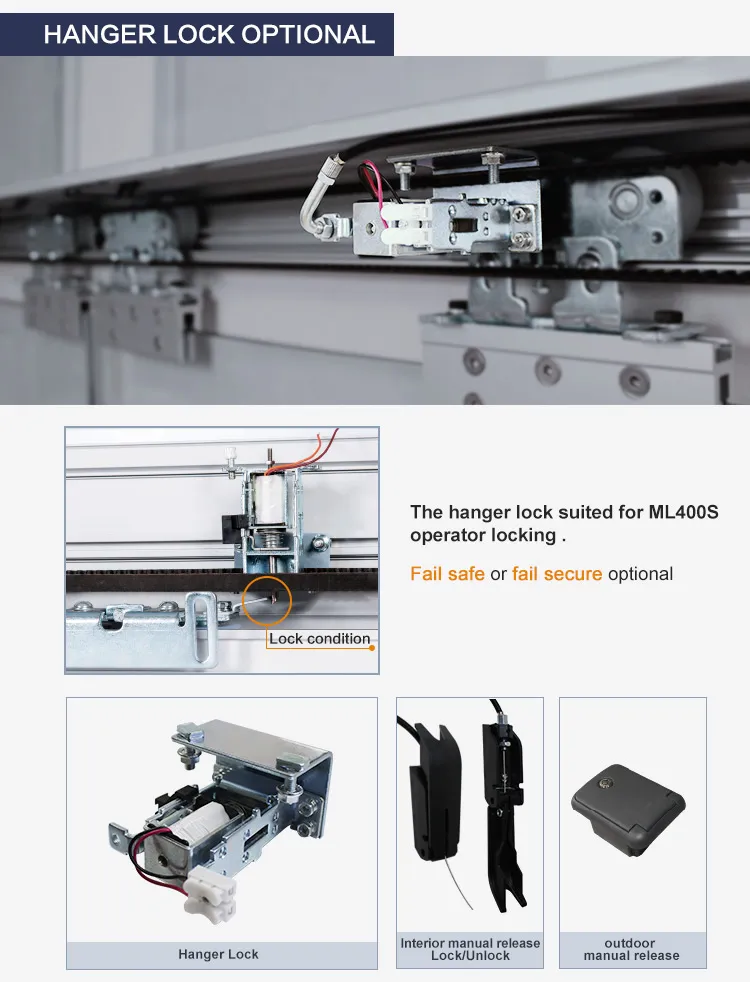

➔Special track and hanger design to make safe working

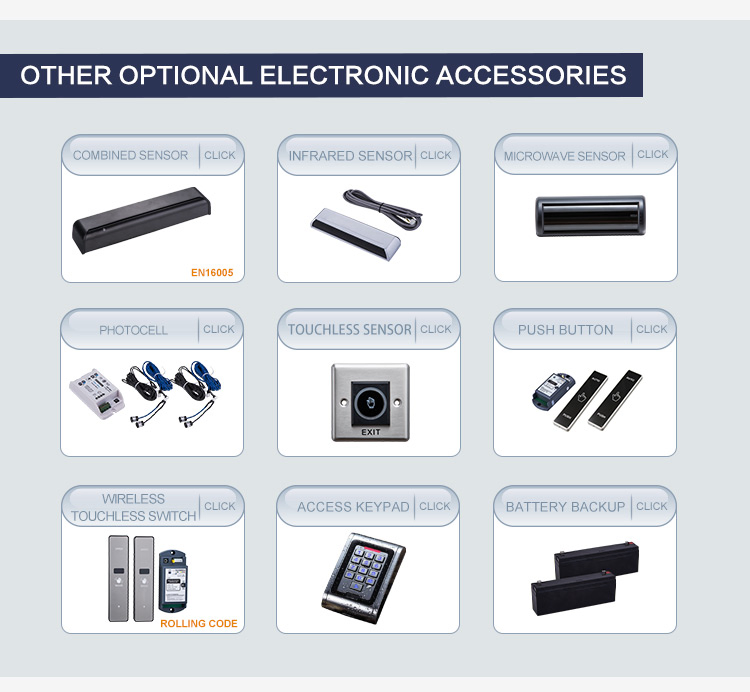

➔Various terminal, work with access keypad, photocell, UPS, interlock, function switch, and so on

➔Monitored battery backup with optional opening programs

➔Working times limit setting & Door working cycle memo

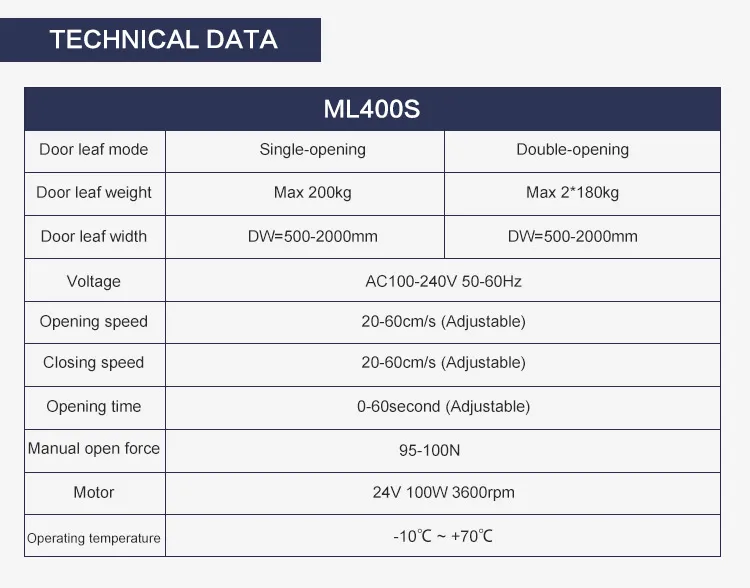

ML400S Data Sheet

Specifications	ML400S
Door leaf mode	Single-opening	Double-opening
Door leaf weight	Max 1*200kg	Max 2*180kg
Door leaf width	DW=500-2000mm	DW=500-2000mm
Voltage	AC100-240V 50-60Hz
Opening speed	17-45cm/s (Adjustable)
Closing speed	17-45cm/s (Adjustable)
Opening hold time	0-60second (Adjustable)
Manual open force	<95N	<100N

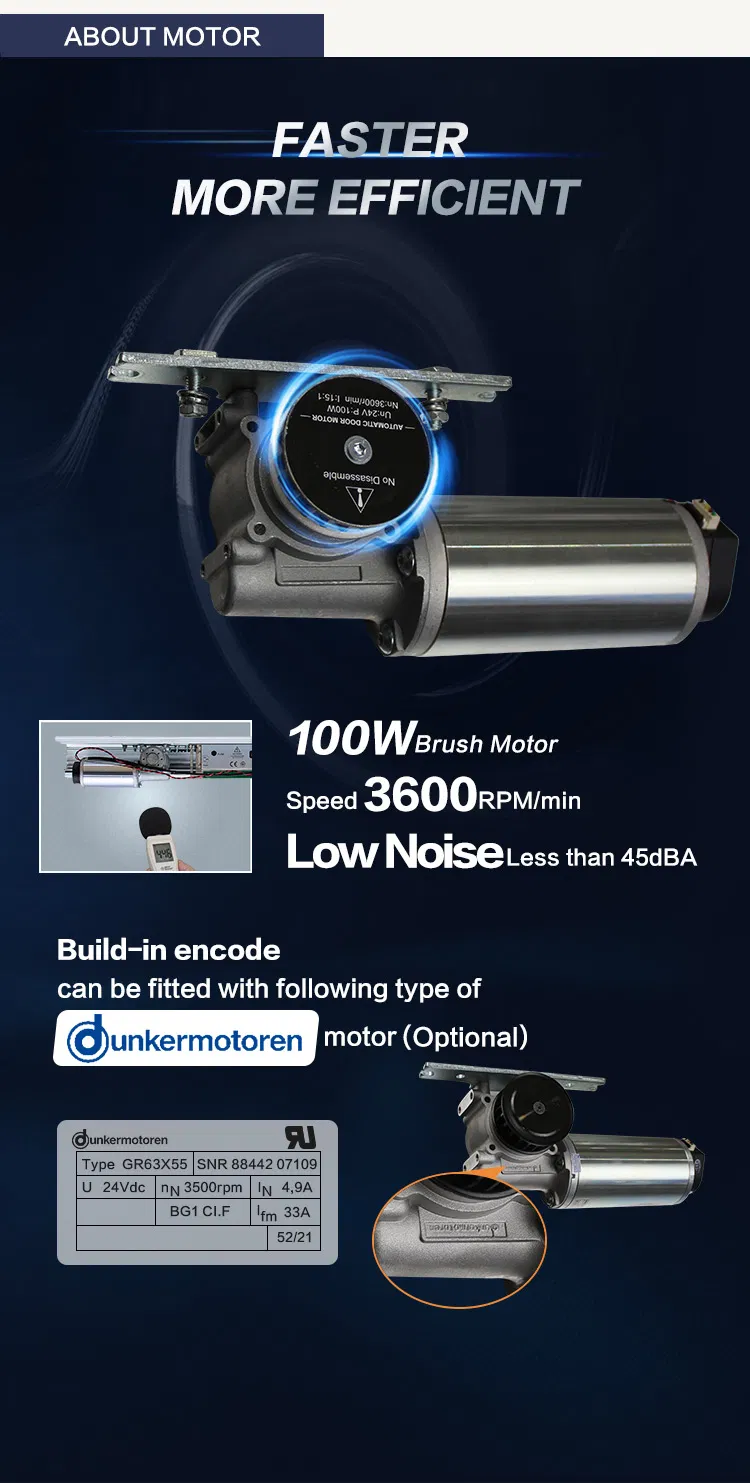

Motor	24V, 100W 3600Prm brush DC motor
Operating temperature	-10ºC ~ +70 ºC

Frequently Asked Questions

Q1: What is the maximum door weight the ML400S can handle? The system supports up to 200kg for a single-opening door and 2x180kg for double-opening doors.

Q2: Is the door opening and closing speed adjustable? Yes, both opening and closing speeds are adjustable between 17cm/s and 45cm/s.

Q3: What type of motor is used in the ML400S system? It uses a high-performance 24V, 100W 3600Prm brush DC motor for reliable operation.

Q4: Can this system work with access control devices? Yes, it features various terminals compatible with access keypads, photocells, UPS, interlocks, and function switches.

Q5: What is the operating temperature range for this door operator? The ML400S is designed to operate efficiently in temperatures ranging from -10ºC to +70 ºC.

Q6: Does the system include a self-learning feature? Yes, it is equipped with a smart self-learning system for optimized performance and intelligent control.
