Product Description

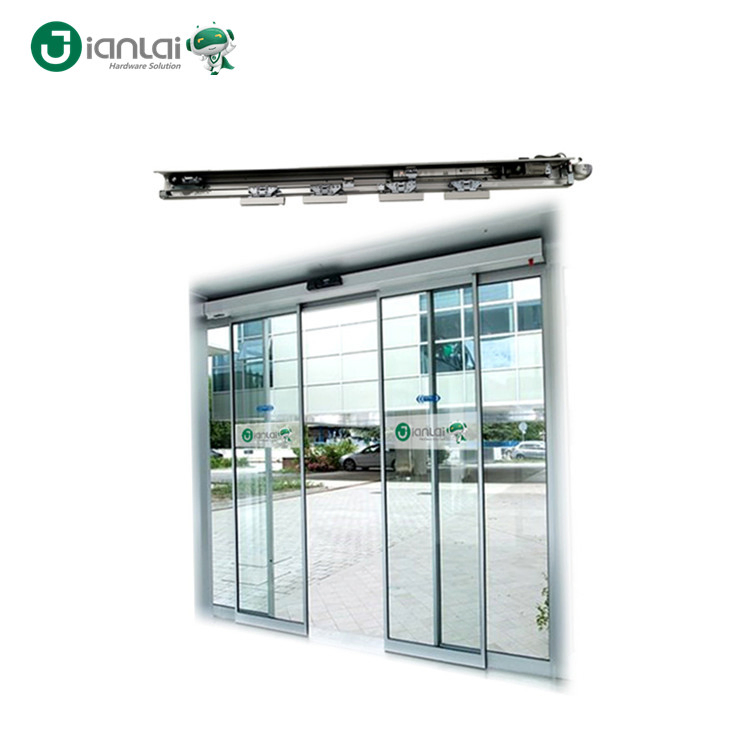

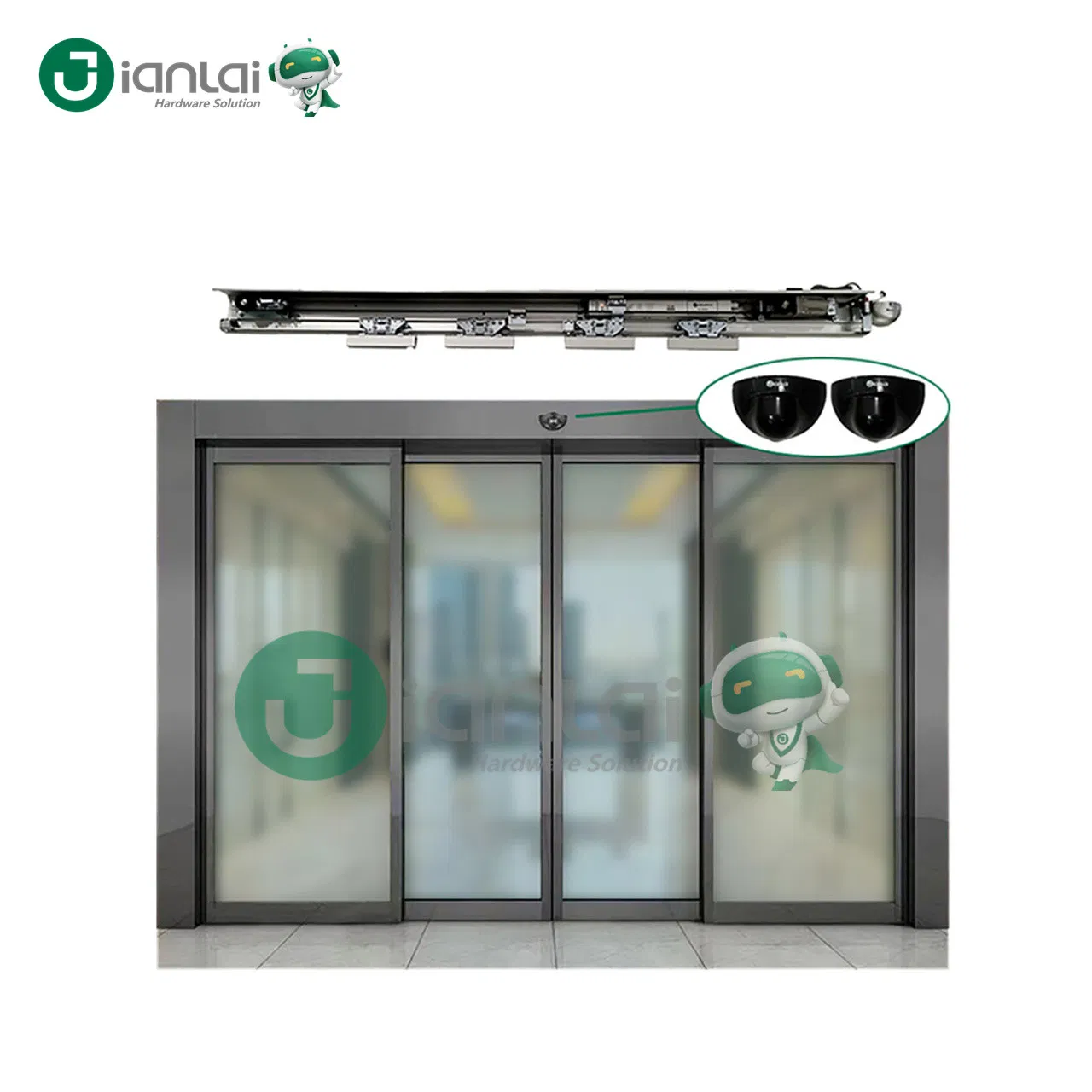

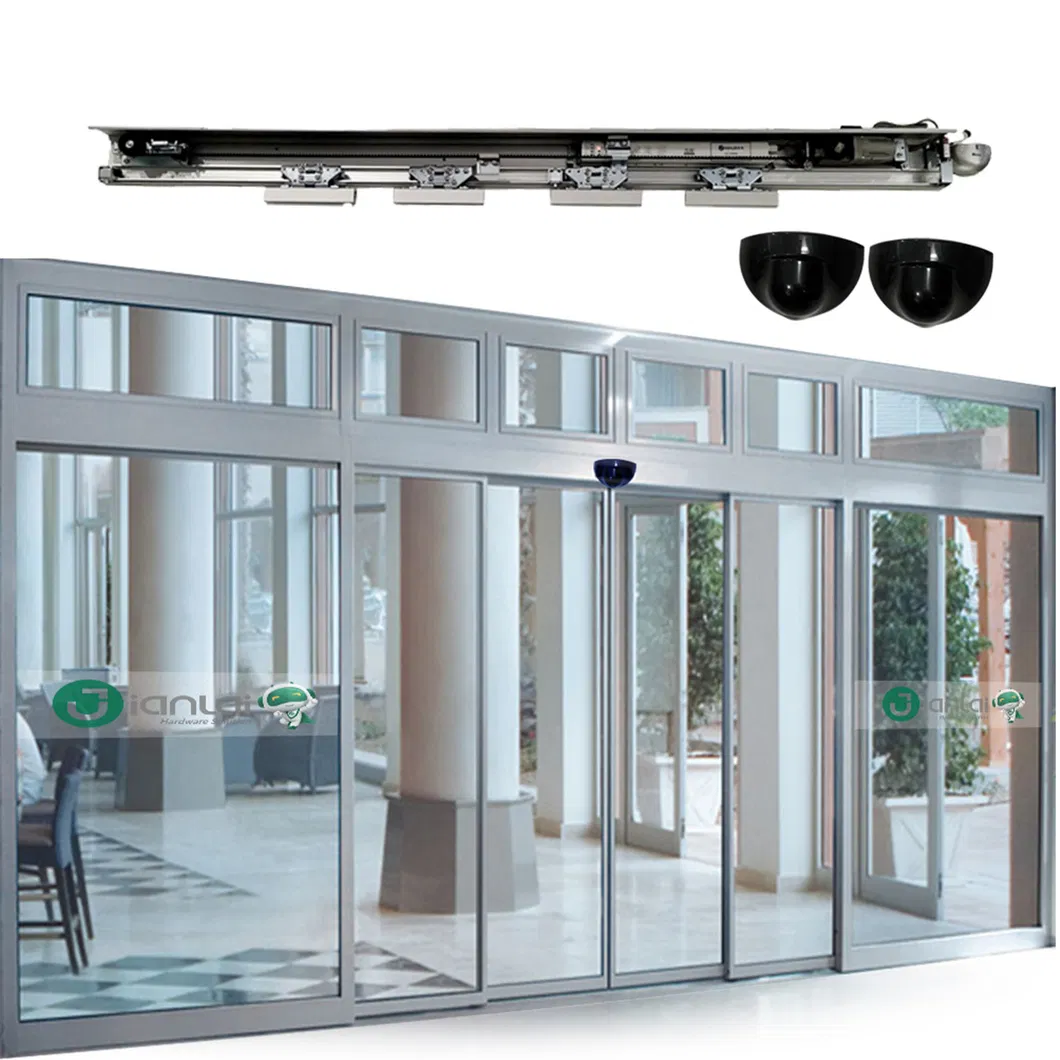

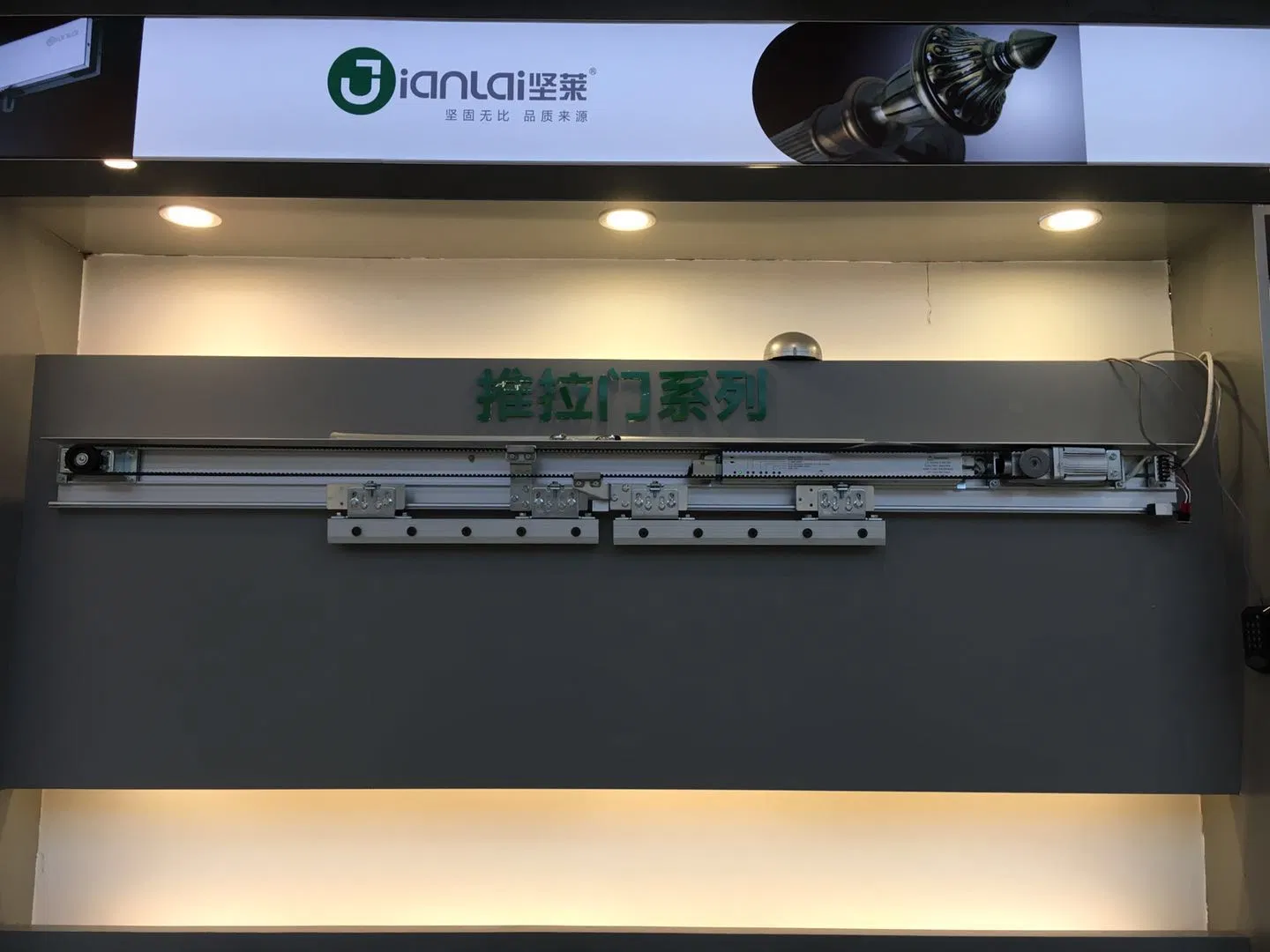

Frame automatic sliding door opening mechanism & automatic sliding door system:

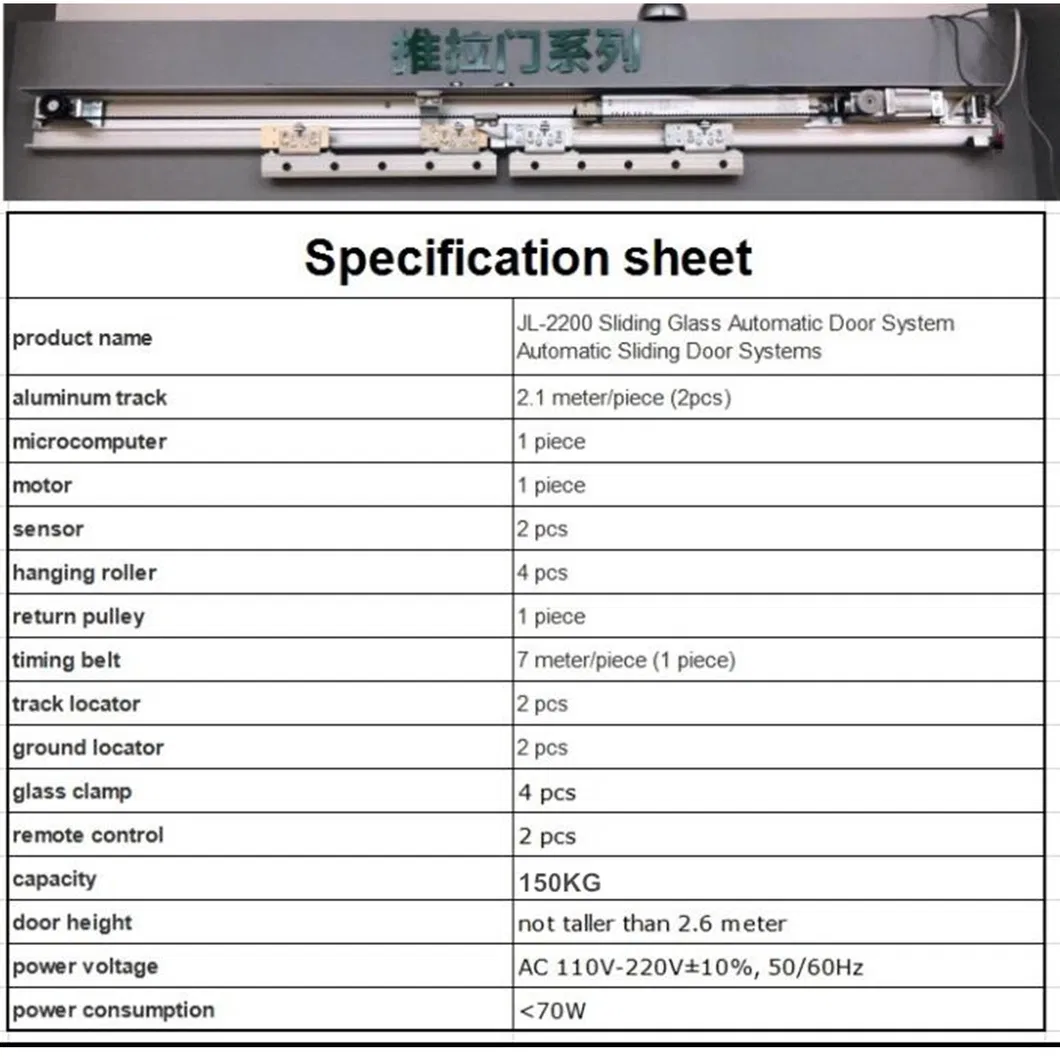

| Model number | JL-2200 |
| Product name | Automatic sliding door system |
| Application | Office building, hotels, supermarket, apartment, etc. |
| Door capacity | 2 * 150kg |
| Door width | 4200 - 6000mm |
| Open/Closing speed | Adjustable (10-45cm/s) |
🛠️

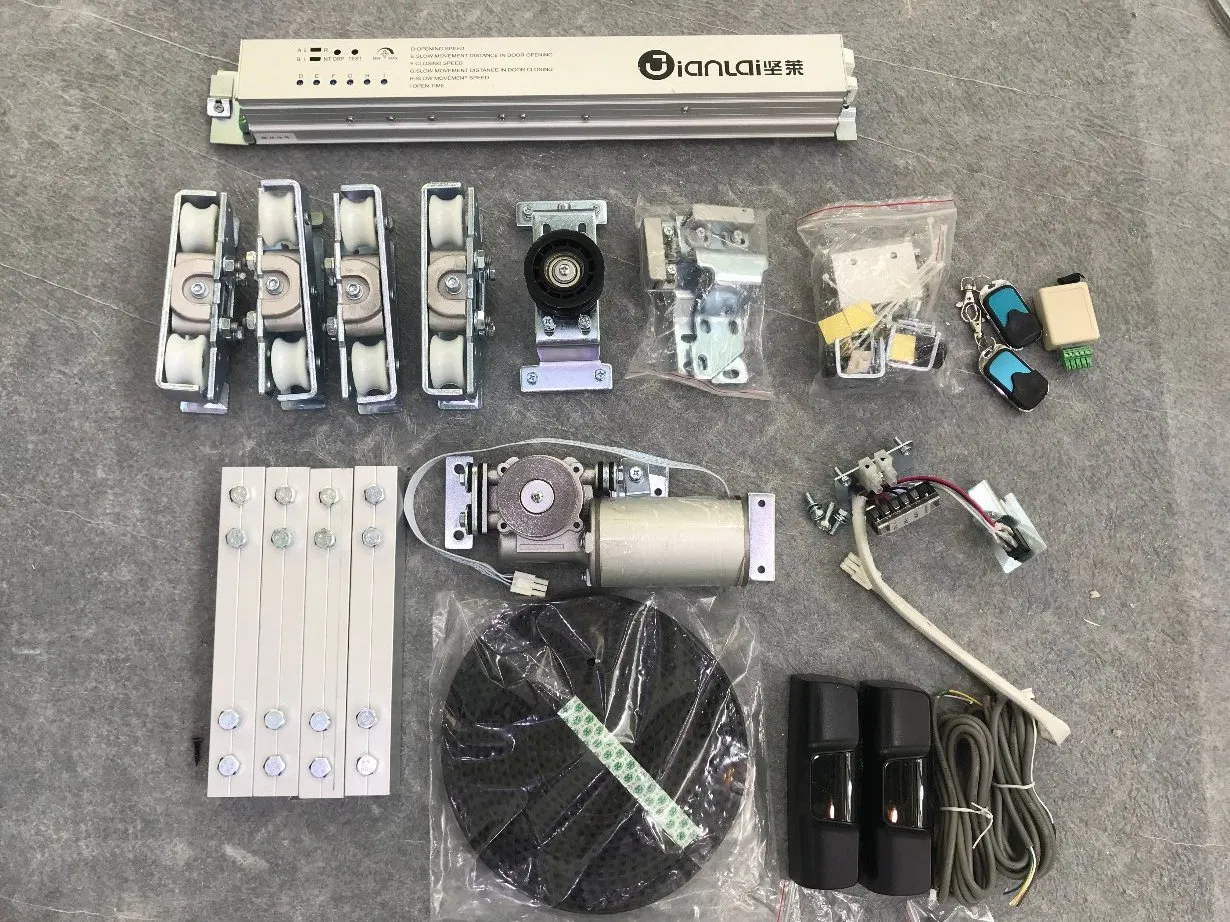

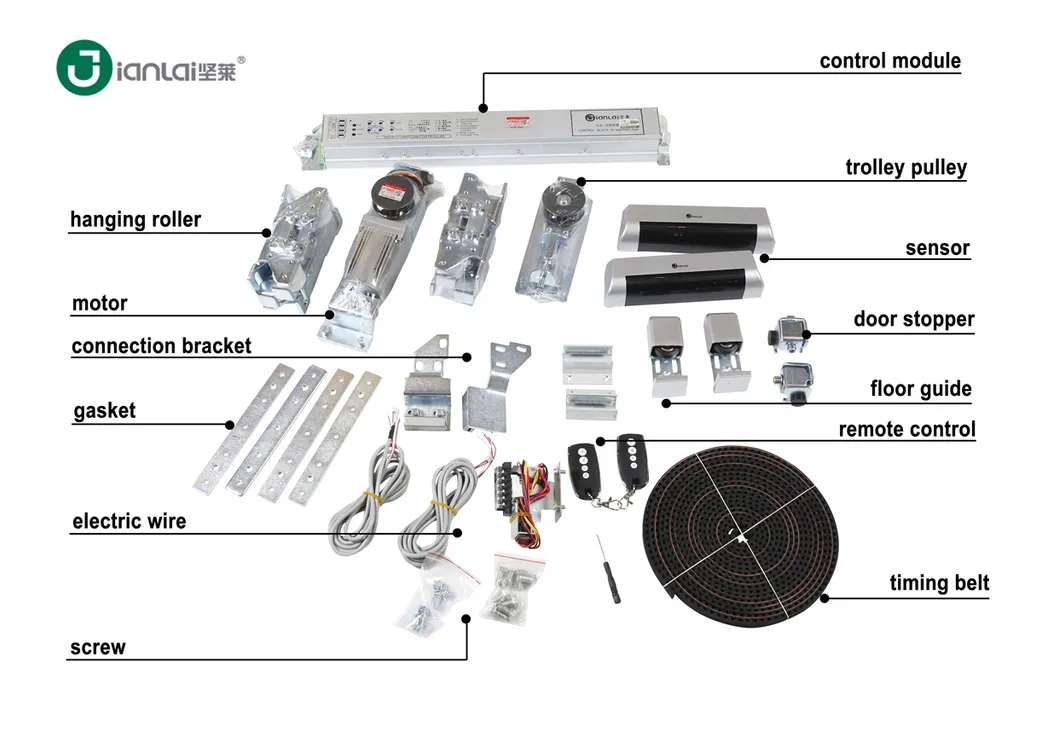

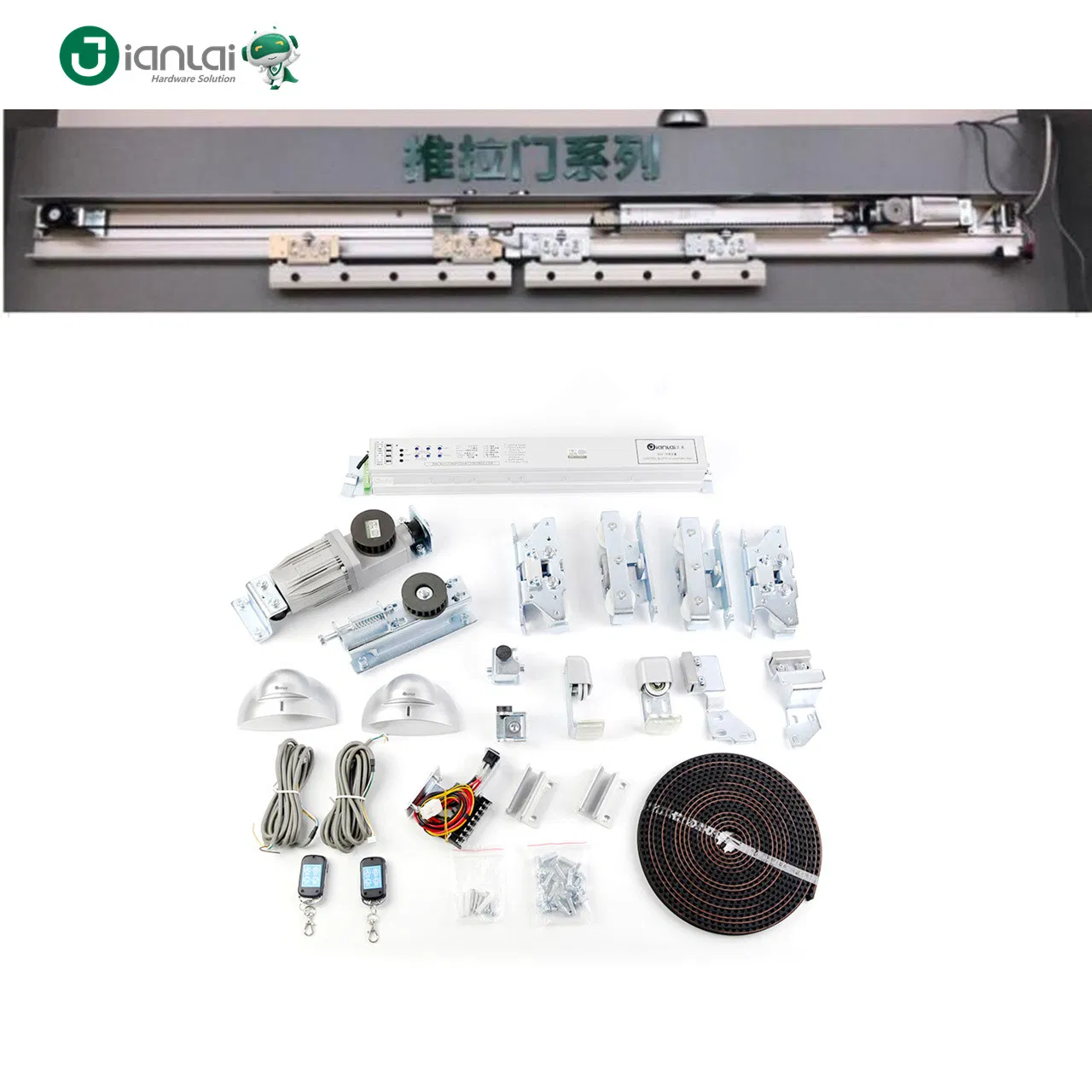

System Components
✓ 2 Aluminum tracks (3.0 meters)
✓ 2 High-efficiency Motors
✓ 1 Mini Computer Controller
✓ 2 Motion Sensors
✓ 2 Sliding Rails & 1 Driving Belt
✓ 2 Remote Controls & Glass Clamps
⭐
Key Features
1) Microprocessor control technology and advanced mechanical manufacturing.
2) Automatic adjustment of door leaf operation and manual adjustment when necessary.
3) Opening and closing smoothly with low noise operation.
4) Brushless motor ensures a long service life.
5) Two-door interlocking and electric lock function supporting multiple access systems.
6) Dual-purpose design for light and heavy door leaves.
❓
Frequently Asked Questions
What is the maximum weight capacity for this automatic door system?
The system can handle a double-open door capacity of up to 2*150kg, making it suitable for most commercial glass doors.
Is the opening and closing speed adjustable?
Yes, the opening speed is adjustable from 15 to 45 cm/s, and the closing speed can be set between 10 to 43 cm/s via the controller.
What happens if there is an obstacle in the doorway?
The system features an automatic safety stop and rotary function. If it detects a collision or obstacle, the door will automatically stop or reverse to ensure safety.
Does this motor require frequent maintenance?
This system uses a brushless DC motor, which is designed for a long service life and high efficiency with minimal maintenance requirements.
Can I integrate this with my building's security system?
Yes, the microprocessor controller supports multiple access control systems, electric locks, and two-door interlocking functions.
What power supply is required for installation?
The system is compatible with AC 110V-220V (±10%), 50/60 Hz, making it versatile for different regional power standards.
