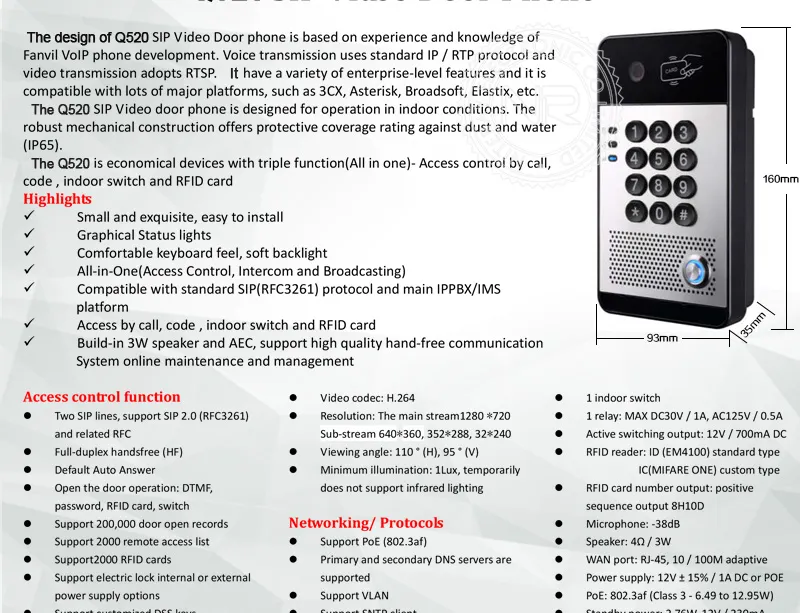

| Access Control Function | Networking / Protocols | Video & Audio |
|
• Two SIP lines, SIP 2.0 (RFC3261) • Full-duplex handsfree (HF) • Door open via: DTMF, password, RFID, switch • 200,000 door open records • 2000 remote access list / 2000 RFID cards • 1 Relay: MAX DC30V/1A, AC125V/0.5A |
• Support PoE (802.3af) • Primary and secondary DNS • Support VLAN, SNTP client • VPN L2TP / openVPN • HTTP / HTTPS web pages • Support SRTP, Qos (802.1p/q) |
• Video codec: H.264 • Resolution: 1280 * 720 (Main stream) • Viewing angle: 110° (H), 95° (V) • 1 million pixel CMOS sensor • Codecs: G.711a/u, G.723.1, G.726, G.729AB, G.722 • Echo Cancellation (AEC) |
| Physical Specifications | Hardware Interface | Environment |
|

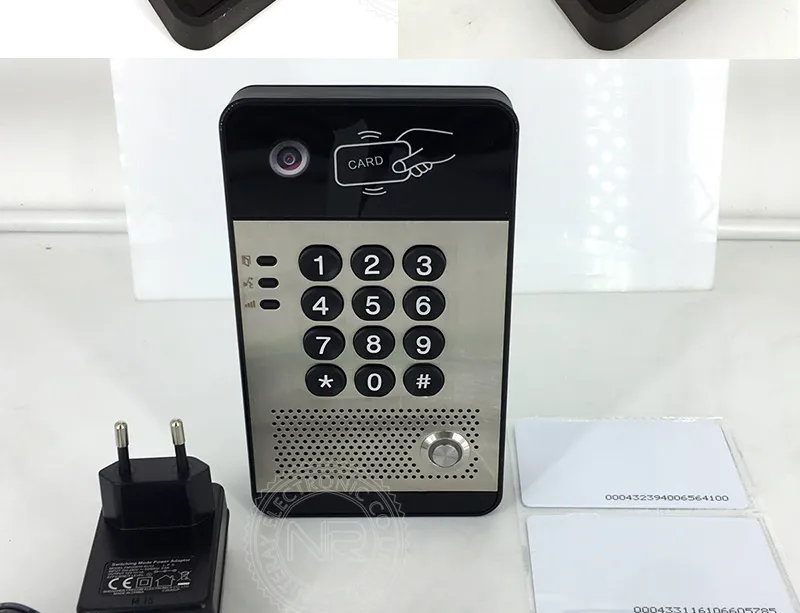

• Shell: Metal surface, ABS body • Equipment size: 160x93x35mm • Equipment weight: 530g • Protection class: IP65 |

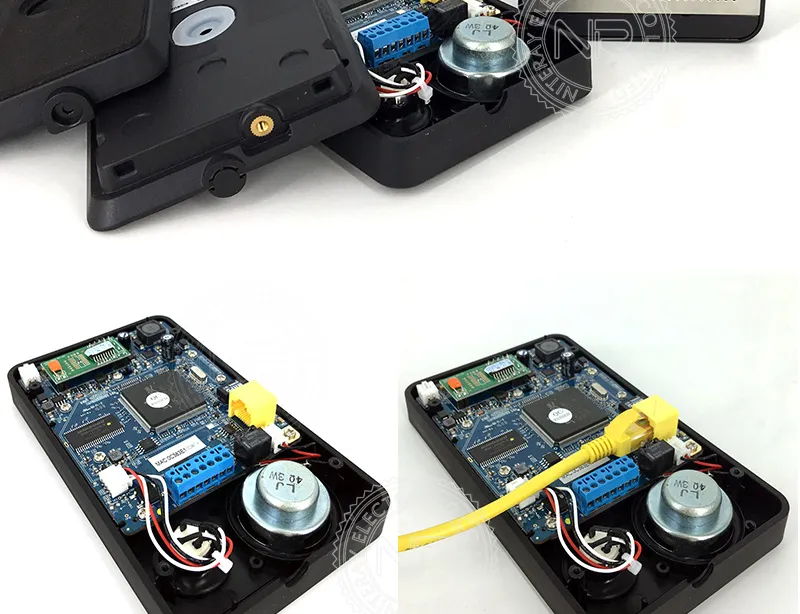

• 1 DSS speed dial button • 4 indicator lights • Numeric keypad • WAN port: RJ-45, 10/100M • Speaker: 4Ω / 3W • Microphone: -38dB |
• Op Temperature: -20 ~ 60 ºC • Storage Temperature: -40 ~ 70 ºC • Relative humidity: 10 ~ 90% • Power: 12V ± 15%/1A DC or POE |
