Electric Walk-in Cooler Cold Room Insulation Panel Sliding Door Copeland Engine Pump For Cold Storage BEIS 3 Year Warranty

1 / 5

Electric Walk-in Cooler Cold Room Insulation Panel Sliding Door Copeland Engine Pump For Cold Storage BEIS 3 Year Warranty

Send Inquiry

Product Description

Company Profile

Our projects and products serve domestic and overseas customers across the world. With thousands of completed cold room projects and commercial refrigerators, we deal with more than 40 countries globally.

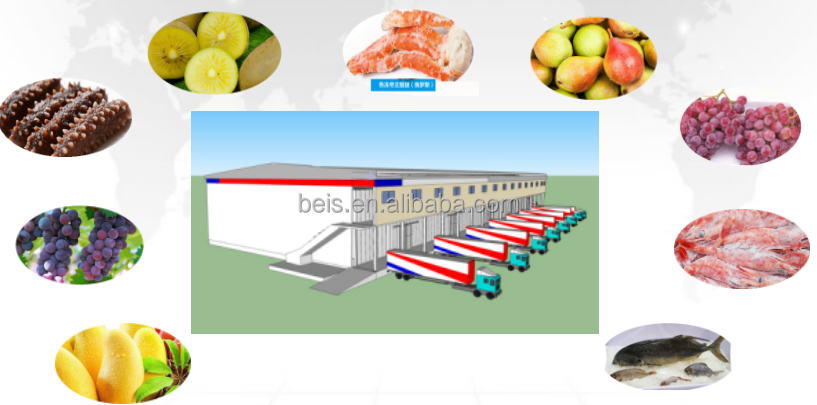

Application Areas

Cold Storage/Cold Room (PU panel, XPS flooring, Compressor condensing unit)

Hotels and Restaurant, hospitals and blood bank, poultry slaughter, aquaculture and mushroom cultivation.

Medical processing and logistics, beverage production and processing storage, beer production and cooling.

Large-scale logistics Storage, injection molding, machine cooling, chemical product cooling.

Main Components Specifics

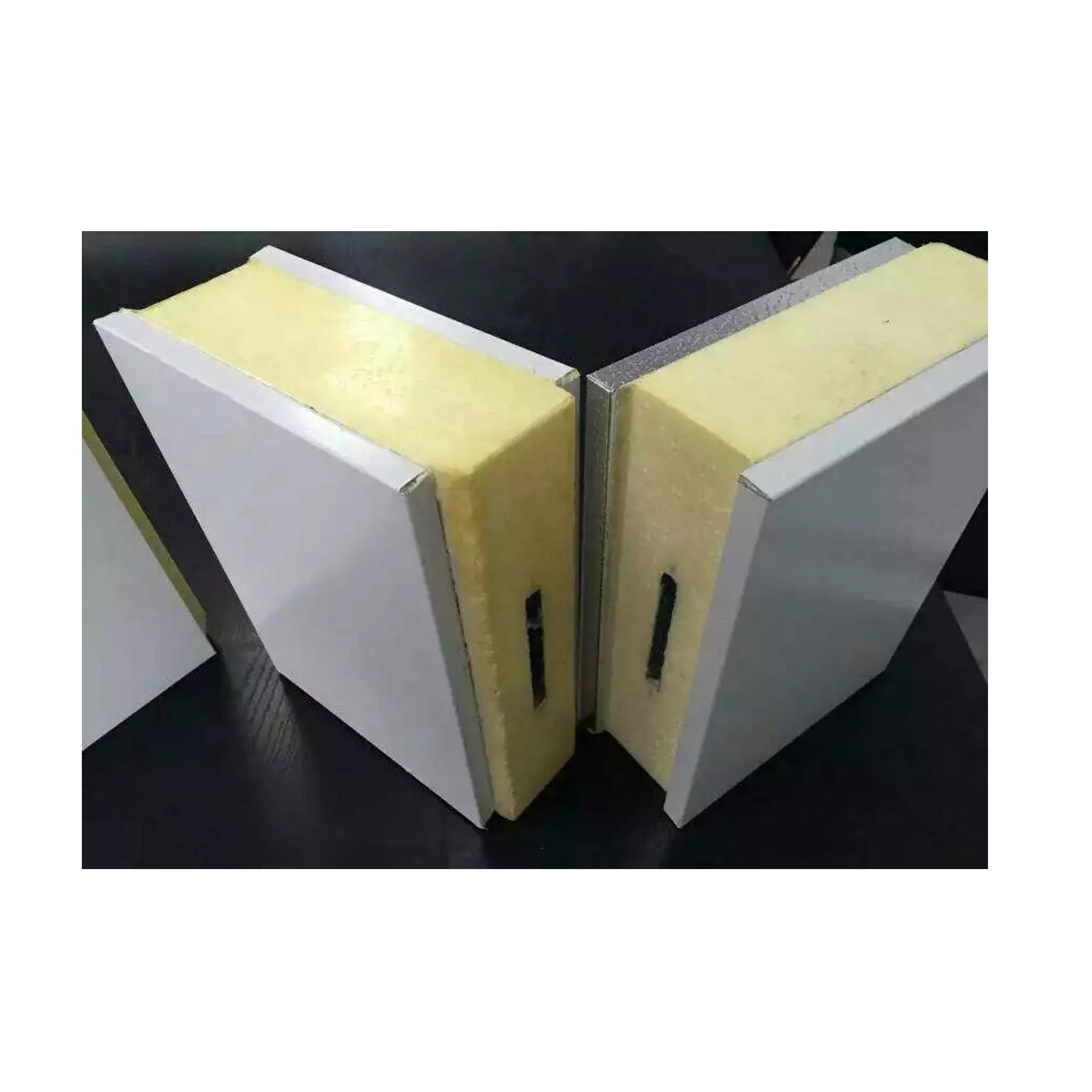

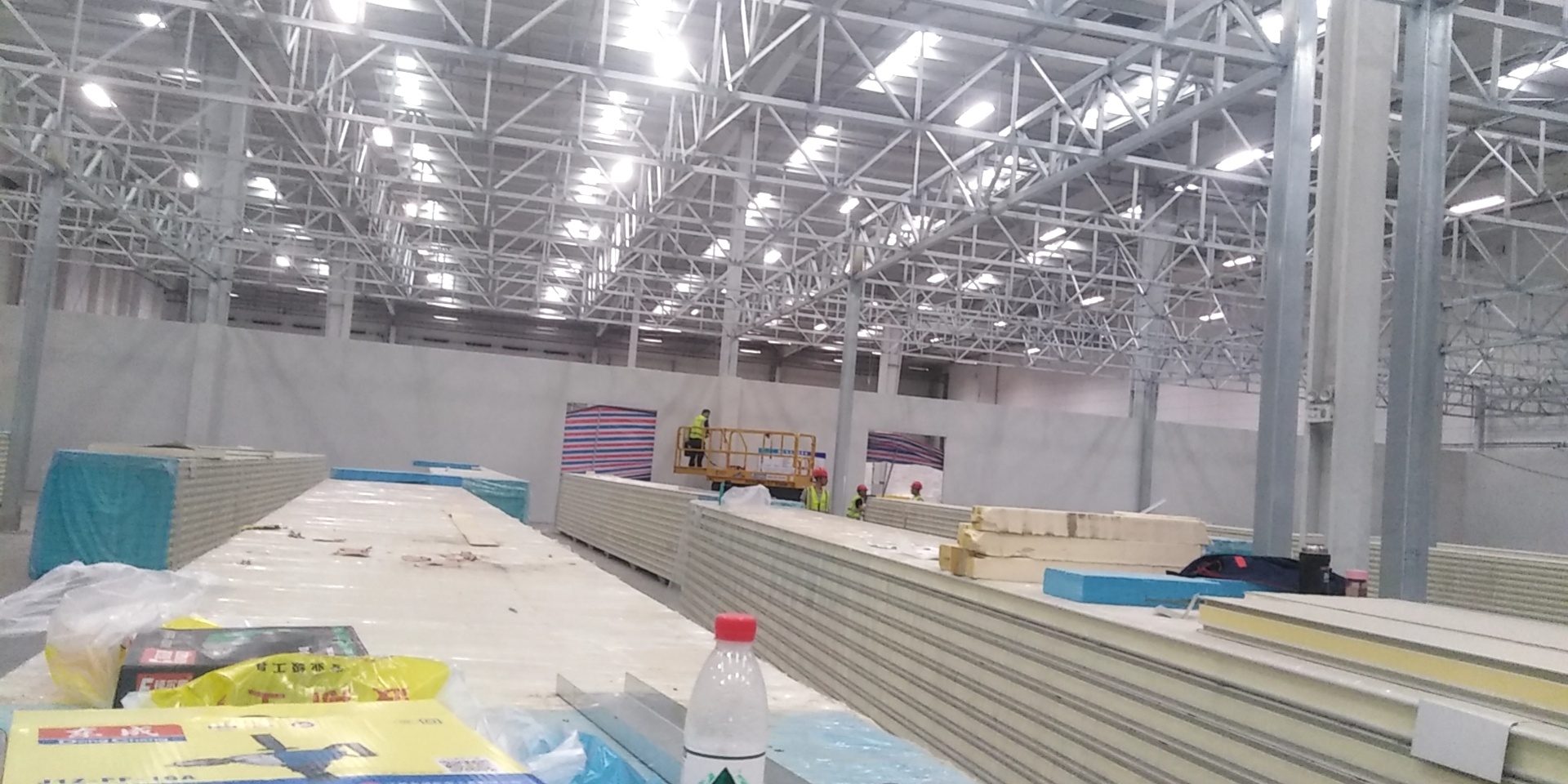

Cold Room PU and PIR Insulated Sandwich Panels:
The cold room is covered by polyurethane sandwich panels (PU or PIR), which offer excellent heat insulation and high intensity. This efficiently reduces heat transmission waste caused by internal and external temperature differences.

Key Features:

Fire proof grade: B1-B2 grade; Certification: FM and ISO 9001.

Waterproof rate <4%, 40-42kg/m3 density.

Thickness options: 50mm, 100mm, 150mm, 200mm.

Color steel or stainless steel sides (0.426mm or 0.5mm).

Equipped with Cam lock and Emboss style.

Panel Title	PU sandwich panel or PIR sandwich panel
Material	Polyurethane foam, color steel, stainless steel or aluminum sheet
Thickness	50 mm / 100 mm / 150 mm / 200 mm
Panel Length	Commonly under 12 meters (container compatible)
Density	42 kg/m³
Fire Retardant	B1 or B2 grade

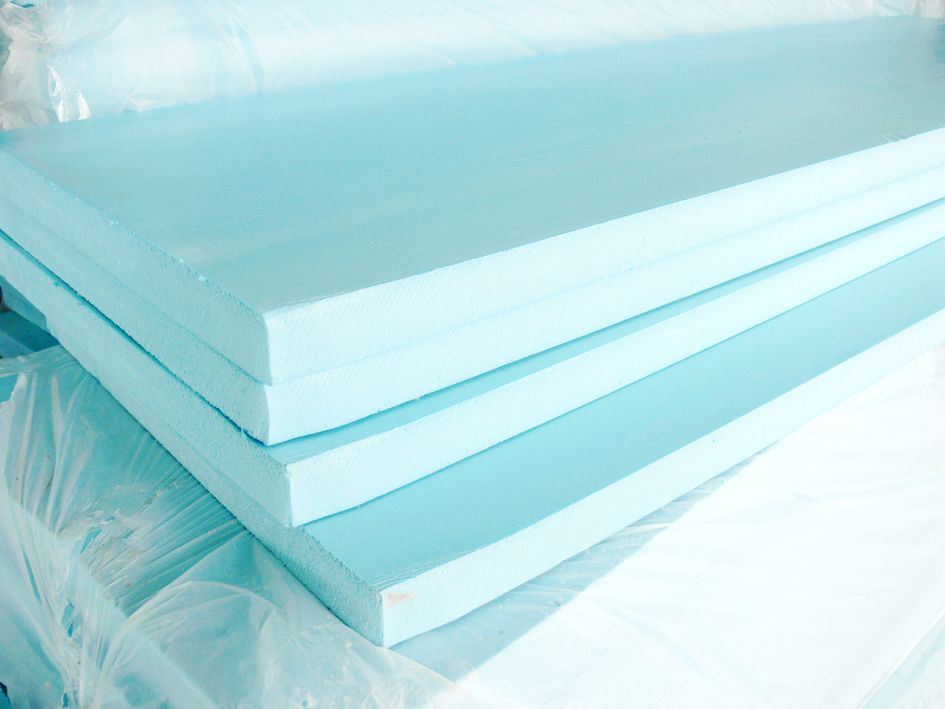

XPS Panel (Extruded Panel)

Excellent heat preservation and insulation for flooring.

Flooring thickness: 50 mm (2 and 3 layer extruded board)

Flame retardant: Class B2 or B1

Compressive strength: ≥ 350 kPa

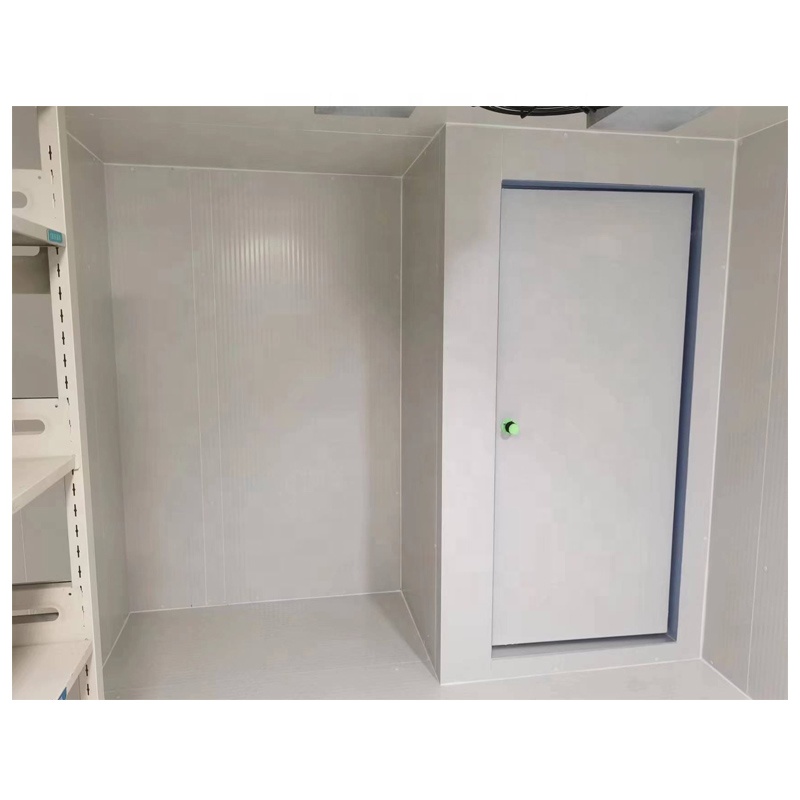

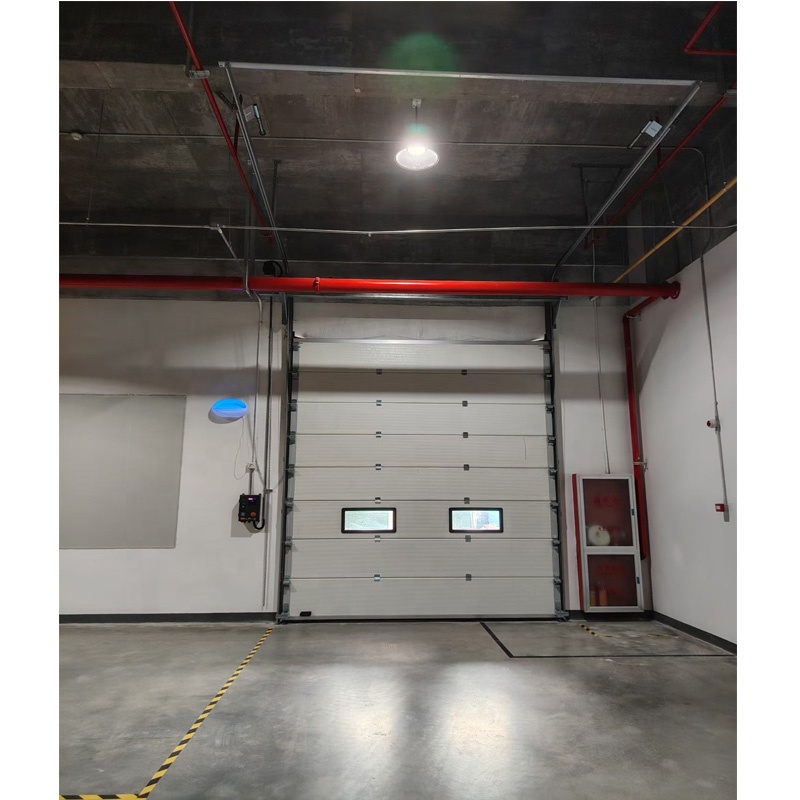

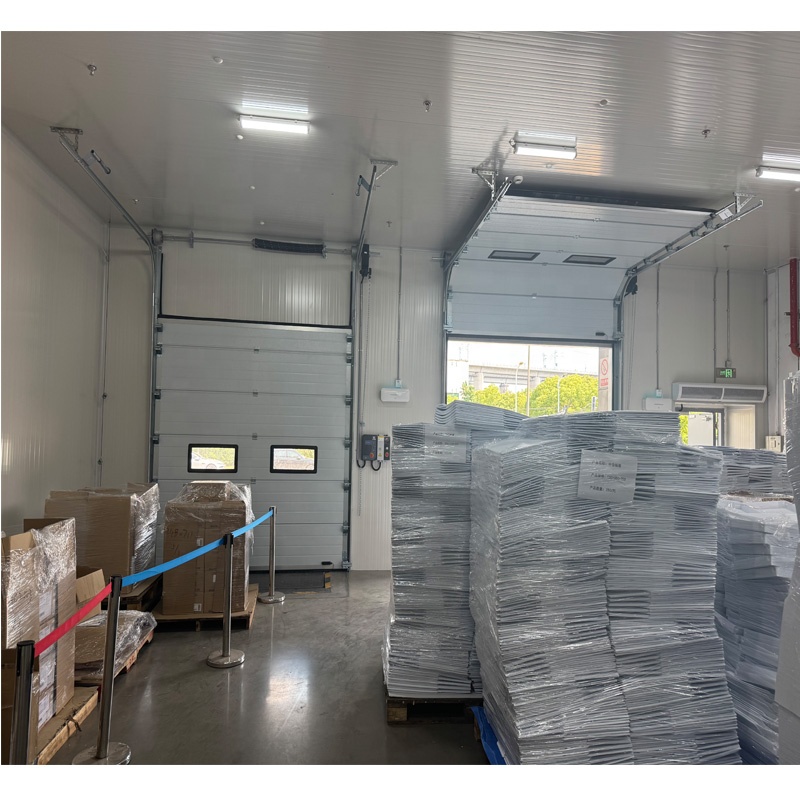

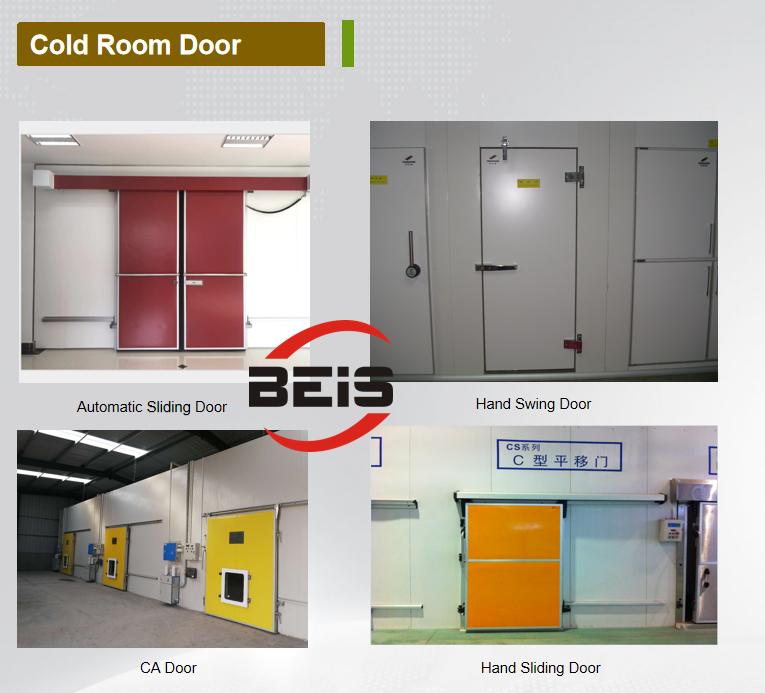

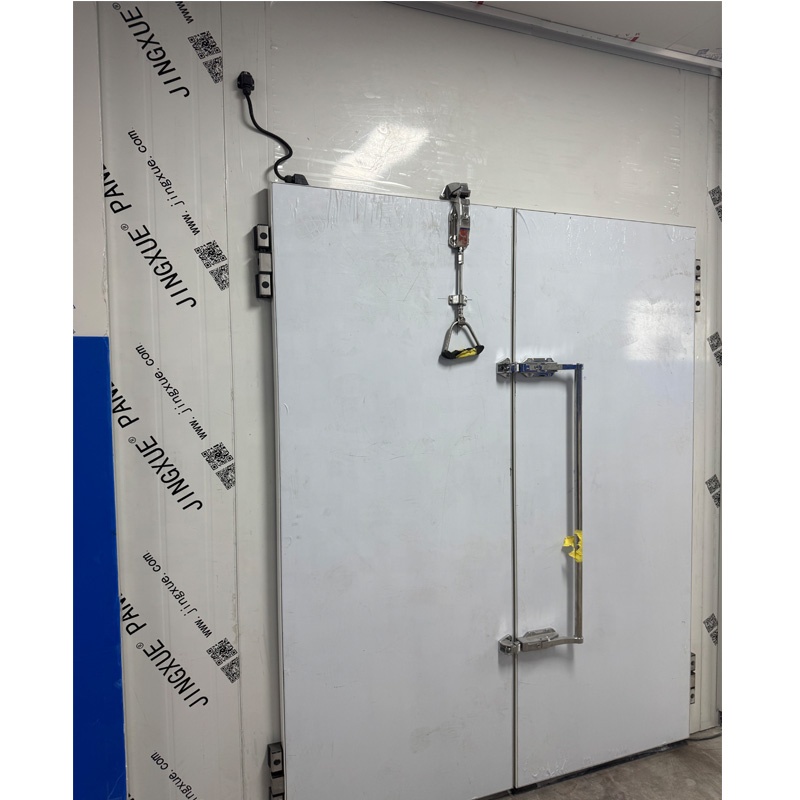

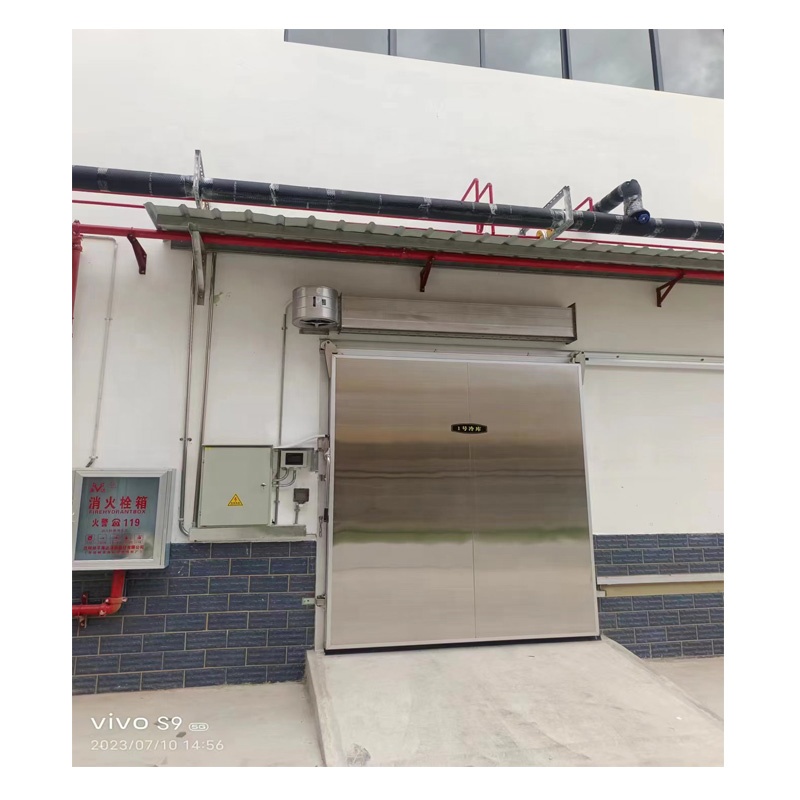

Cold Room Doors

Multiple series including manual and automatic styles:

Swing doors, Sliding doors, and CA cold room doors.

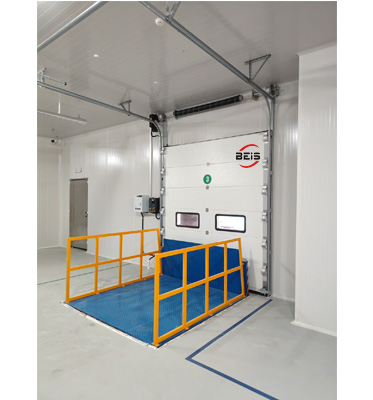

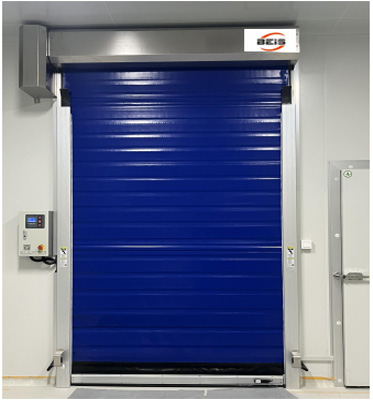

High Speed Cold Storage Doors / Rapid Door

Function	Excellent seal, energy saving, limits air loss
Temperature	Applicable above -35 degree
Maximum Size	Customized
Curtain Material	PVC double-layer coating (0.9mm, 1mm, 10mm)
Door Frame	2.0mm cold plate (electrostatic spraying)
Voltage	220V/380V/415V/480V (50HZ/60HZ)

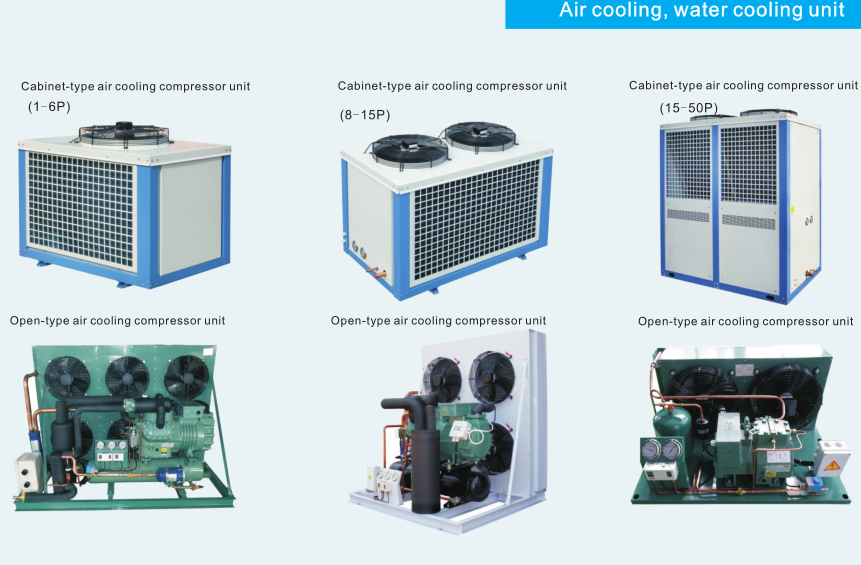

Compressor and Evaporator

We utilize high-quality global brands including: Bitzer (Germany), Copeland (USA), Tecumseh, Frascold (Italy) and other brands per customer requirements.

Overseas Project Showcase

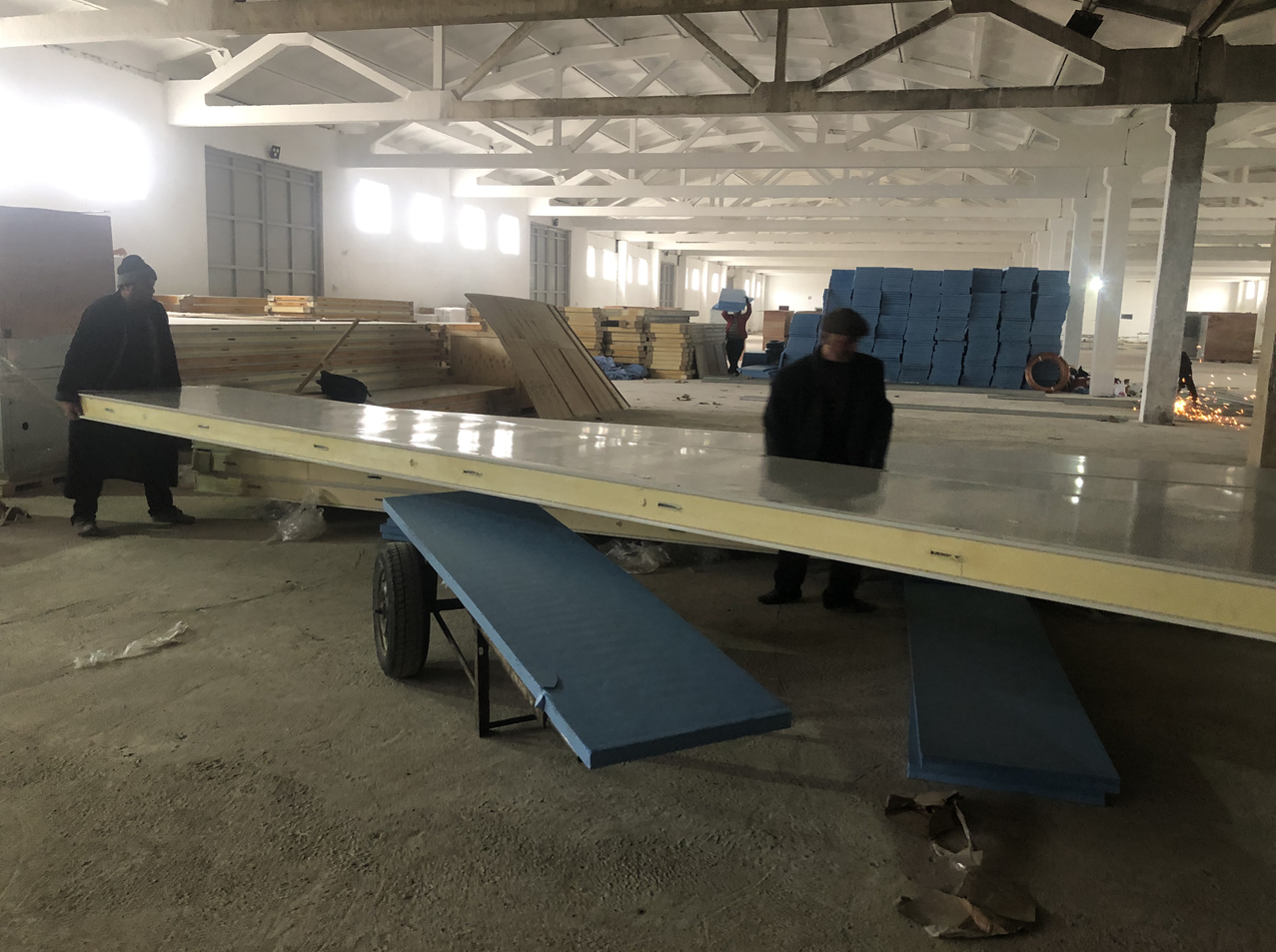

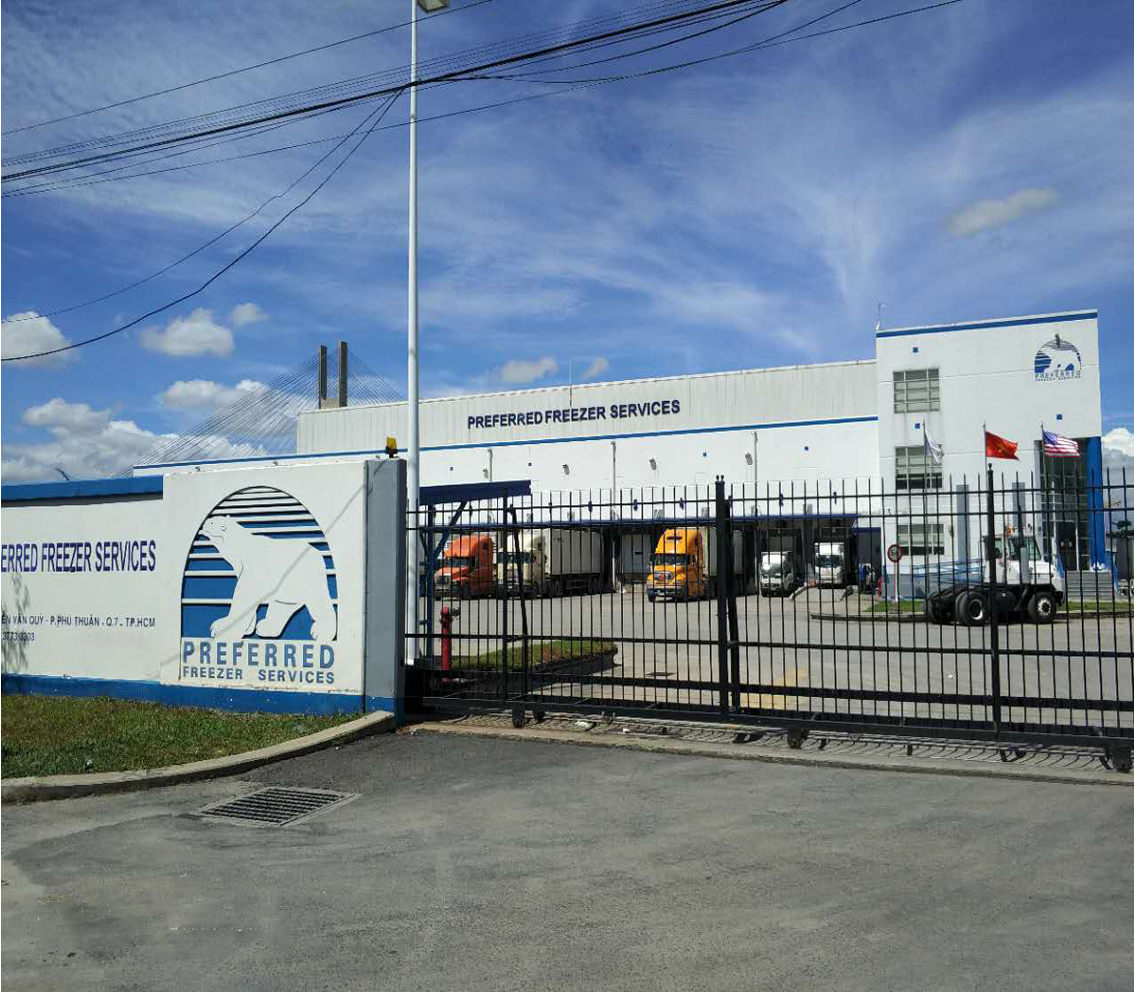

Uzbekistan Government Food Chain Project

Completion: 40 days | Scale: 5000 M2 / Height 6m | Installation: 8 members + 10 customer members.

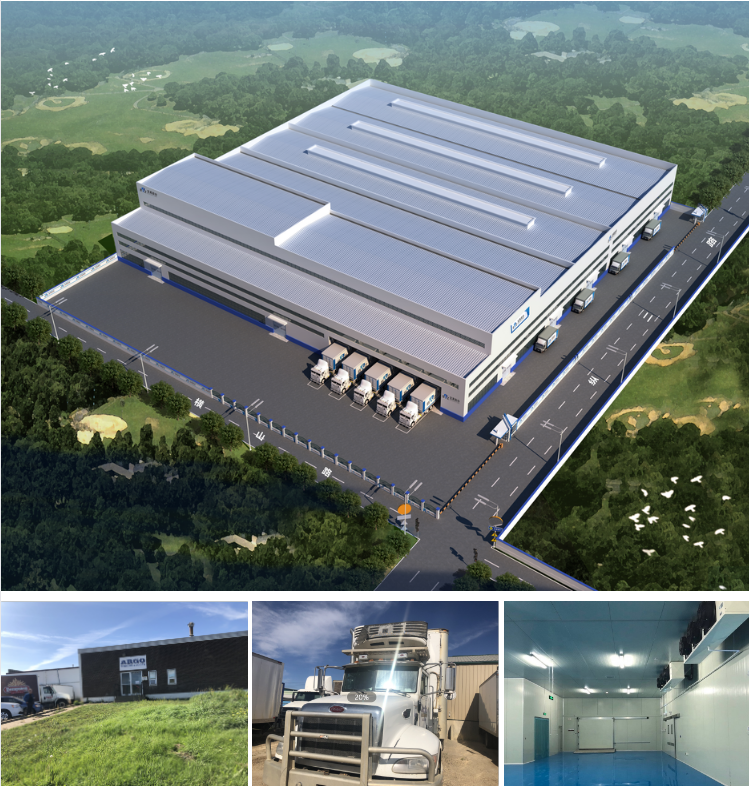

Cambodia Cold Storage Plan

Principles: Safety, efficiency, and energy conservation. System is intelligent and designed for local climate conditions.

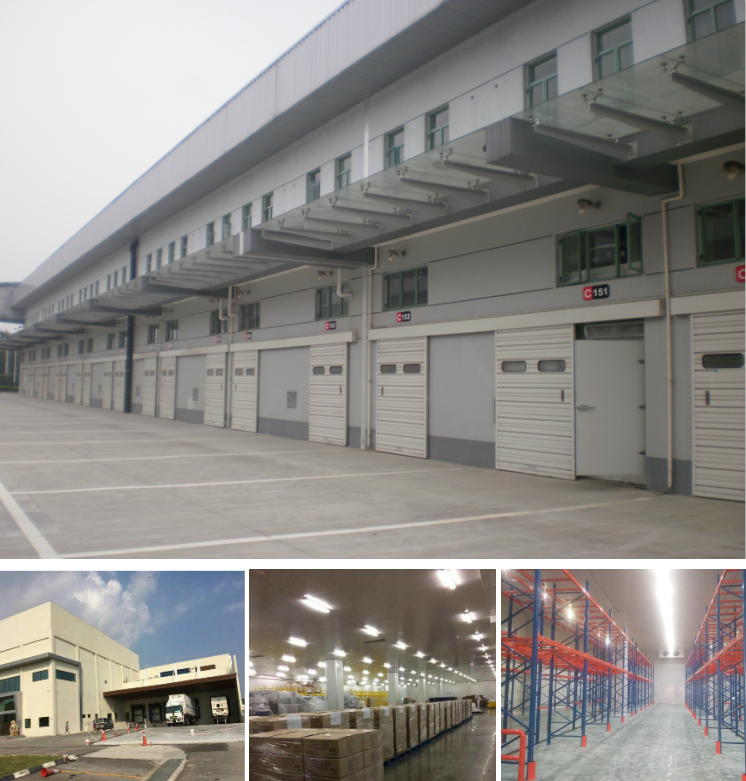

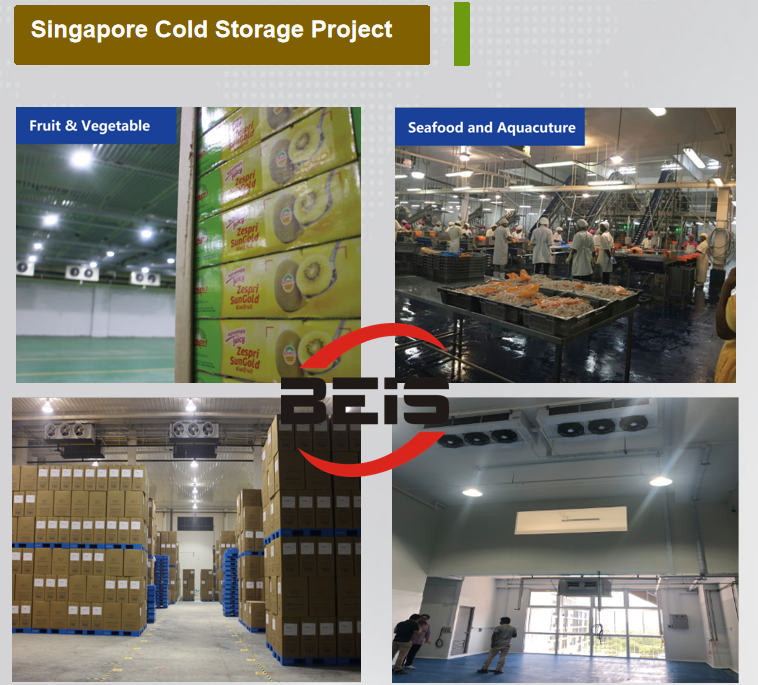

Canada & Singapore Projects

Singapore: 1000 M2 / Height 4.5m, 40 days completion.
Canada: Chiller and Freeze rooms (-5℃/-18℃) reaching Europe standards and CE certificate.

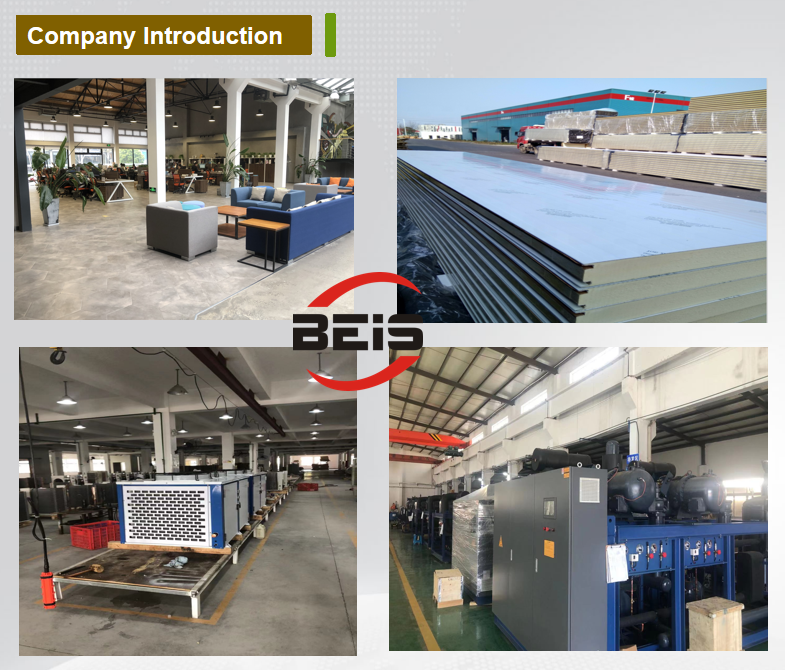

Company Introduction & Services

We are a group company providing professional one-stop solutions for commercial refrigeration and cold rooms. We offer customized OEM and ODM services. Our products are certified with CE, ROHS, SASO, NSF, and ISO 9001, serving more than 40 countries.

Our One-Stop Services:

Cold room storage constructor

PU sandwich panel manufacturing

Compressor condensing unit and evaporator design

Cold room lights, doors, and related components

Frequently Asked Questions (FAQ)

1. What information is needed for a cold room inquiry?

Please provide the usage (e.g., vegetables, fish, medical), required temperature, cold room dimensions (length*width*height), storage capacity in tons, and your local voltage/phase/hertz.

2. What types of insulation panels do you provide?

We offer high-density Polyurethane (PU) and PIR sandwich panels with fire retardant grades B1 or B2. Thicknesses range from 50mm to 200mm.

3. Which compressor brands are available for the refrigeration units?

We use world-renowned brands such as Bitzer (Germany), Copeland (USA), Tecumseh, and Frascold (Italy) to ensure reliability and efficiency.

4. Do you support customized cold room door designs?

Yes, we provide various styles including manual and automatic swing doors, sliding doors, and high-speed rapid doors for specialized logistics.

5. Are your products certified for international markets?

Absolutely. Our products are certified with CE, ROHS, SASO, NSF, and ISO 9001 standards, meeting the requirements of over 40 countries.

6. What is the standard lead time for a large-scale project?

While it depends on the scale, many of our overseas projects, such as the 5000 M2 facility in Uzbekistan, were completed in approximately 40 days.
