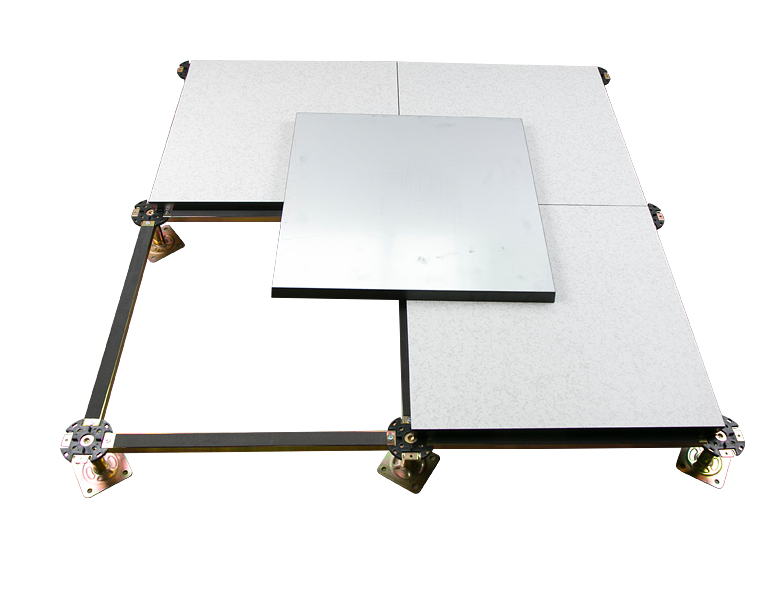

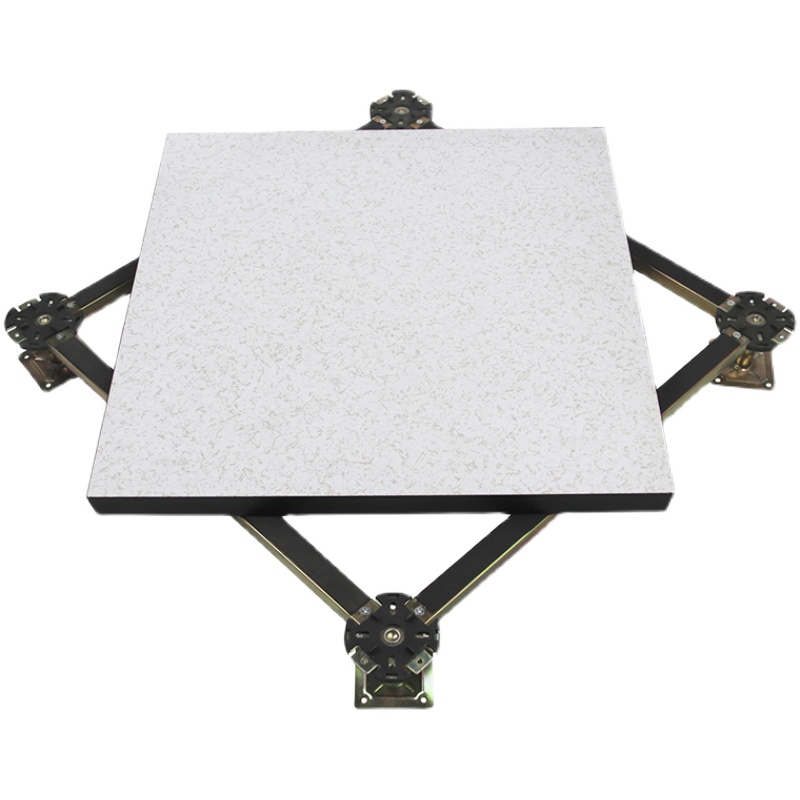

Environmentally Wooden-Based Raised Access Floor System (EDS) Lightweight Aesthetically Pleasing Modern Office/Warehouse Cabling

1 / 5

Environmentally Wooden-Based Raised Access Floor System (EDS) Lightweight Aesthetically Pleasing Modern Office/Warehouse Cabling

Send Inquiry

Product Description

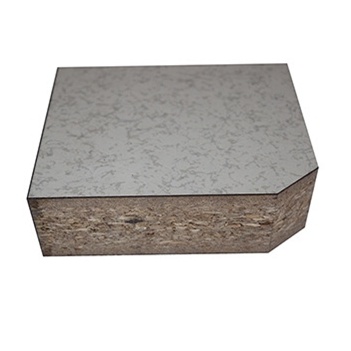

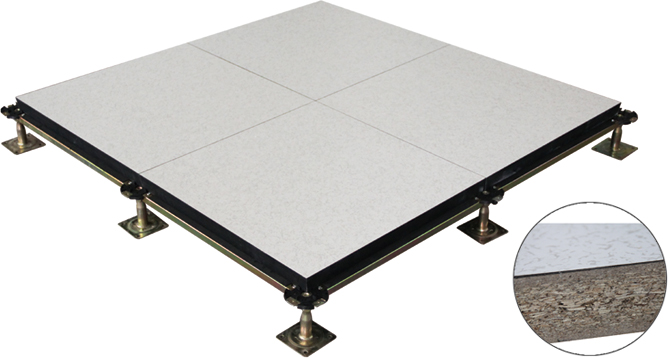

Wooden Anti-Static Floor

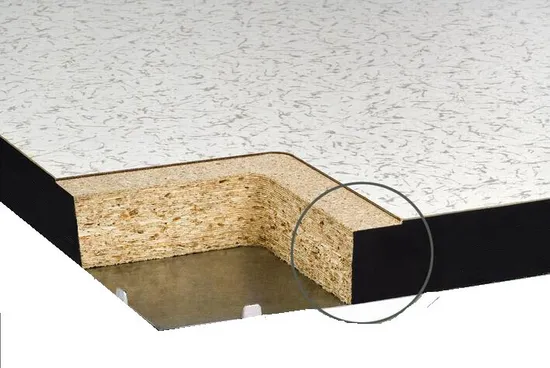

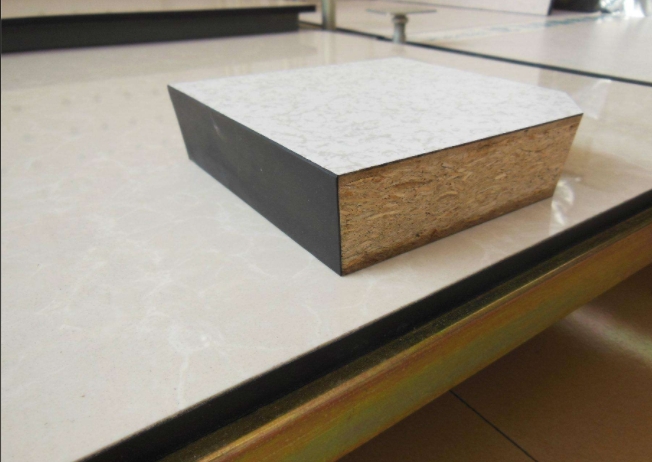

The floor is made of high-density flame retardant particleboard (720Kg/m) base material. The surface can be pasted with anti-static HPL or anti-static PVC veneer, the bottom side is made of high-quality galvanized steel plate (or aluminum skin), and the sides are sealed with conductive strips.

Specifications:
600mm * 600mm

Thickness:
30mm - 40mm

Bracket:
10cm - 30cm (Custom available)

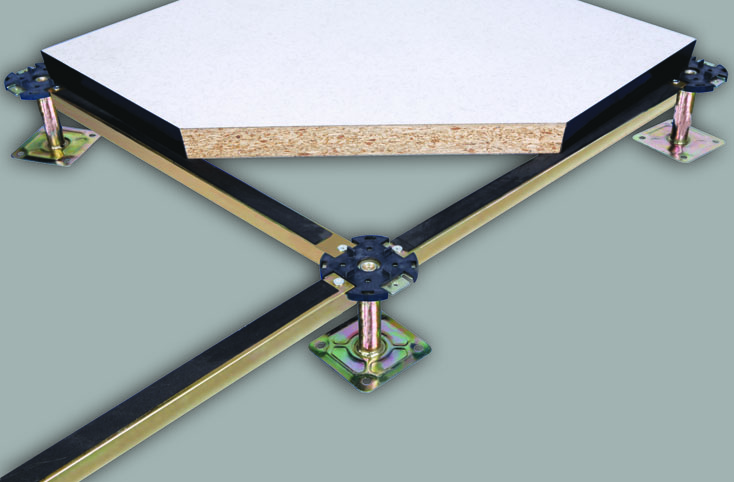

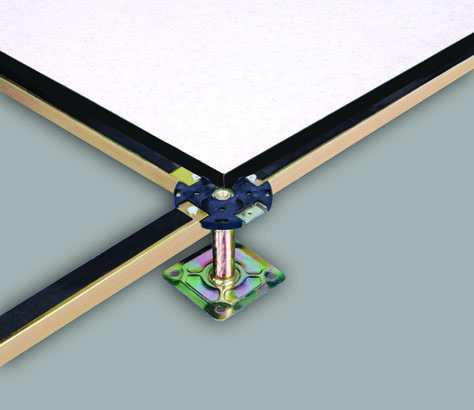

System:
Support Beam Installation

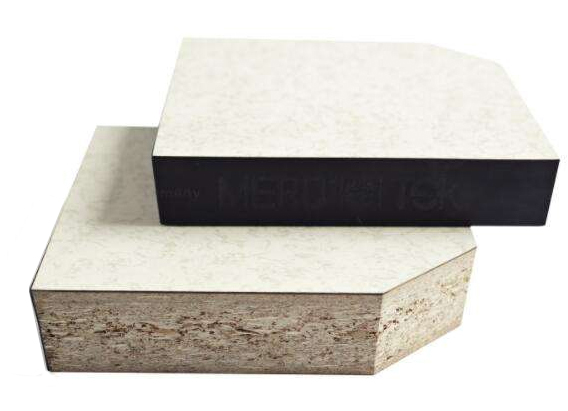

Product Characteristics

High load-bearing capacity and impact resistance.
High dimensional accuracy of the flooring, easy to install and disassemble.
Good interchangeability and convenient maintenance.
Good fire resistance and long service life.

Technical Specification

Model	GB Model	Spec (mm)	Concentrated Load (N)	Impact Load (N)	Ultimate Load (N)	Fire Resistance
YY-M1001	FS700	600×600	≥2950	≥445	≥8850	B1
YY-M1002	FS800	600×600	≥3560	≥536	≥10680	B1
YY-M1003	FS1000	600×600	≥4450	≥670	≥13350	B1

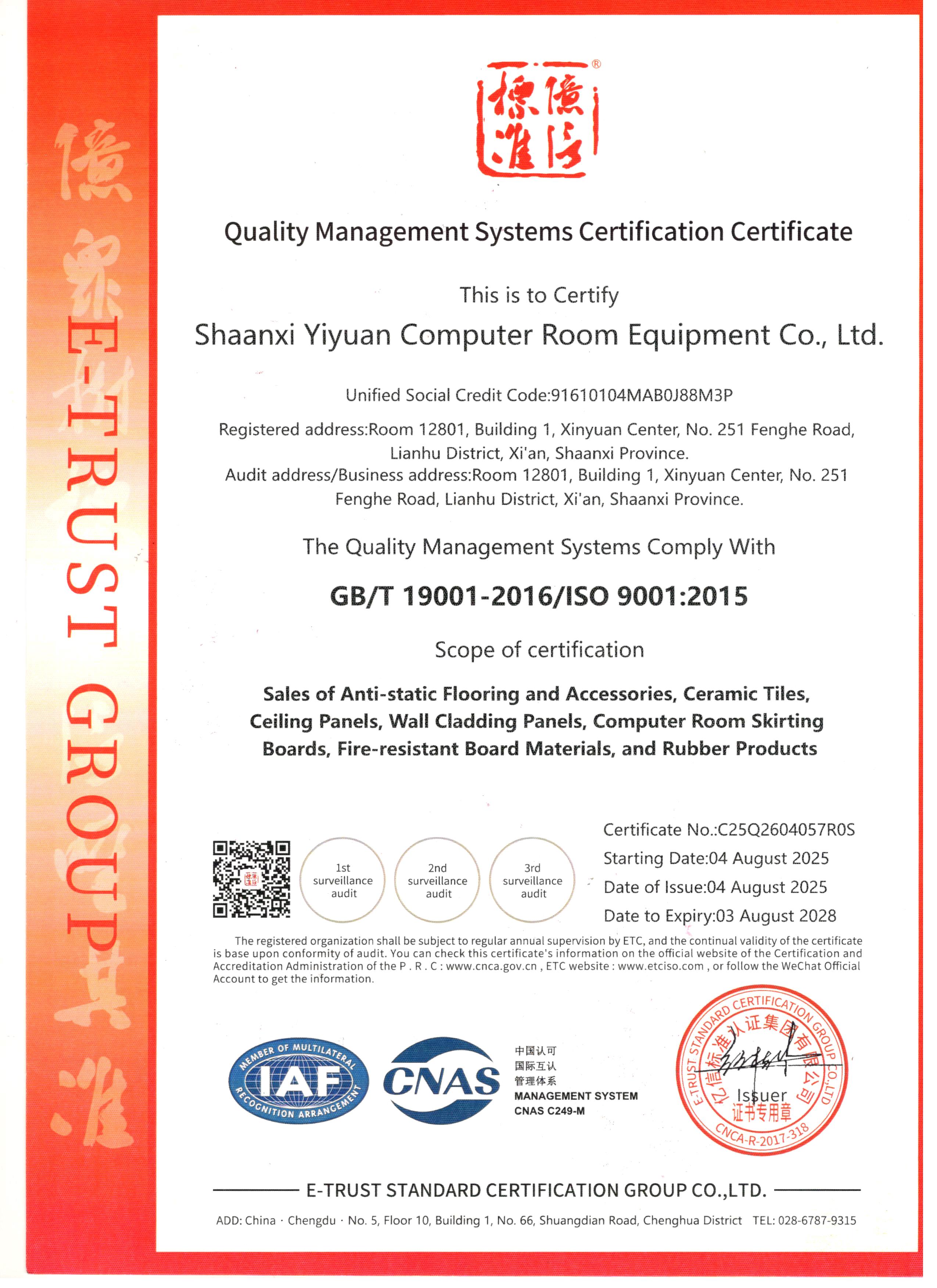

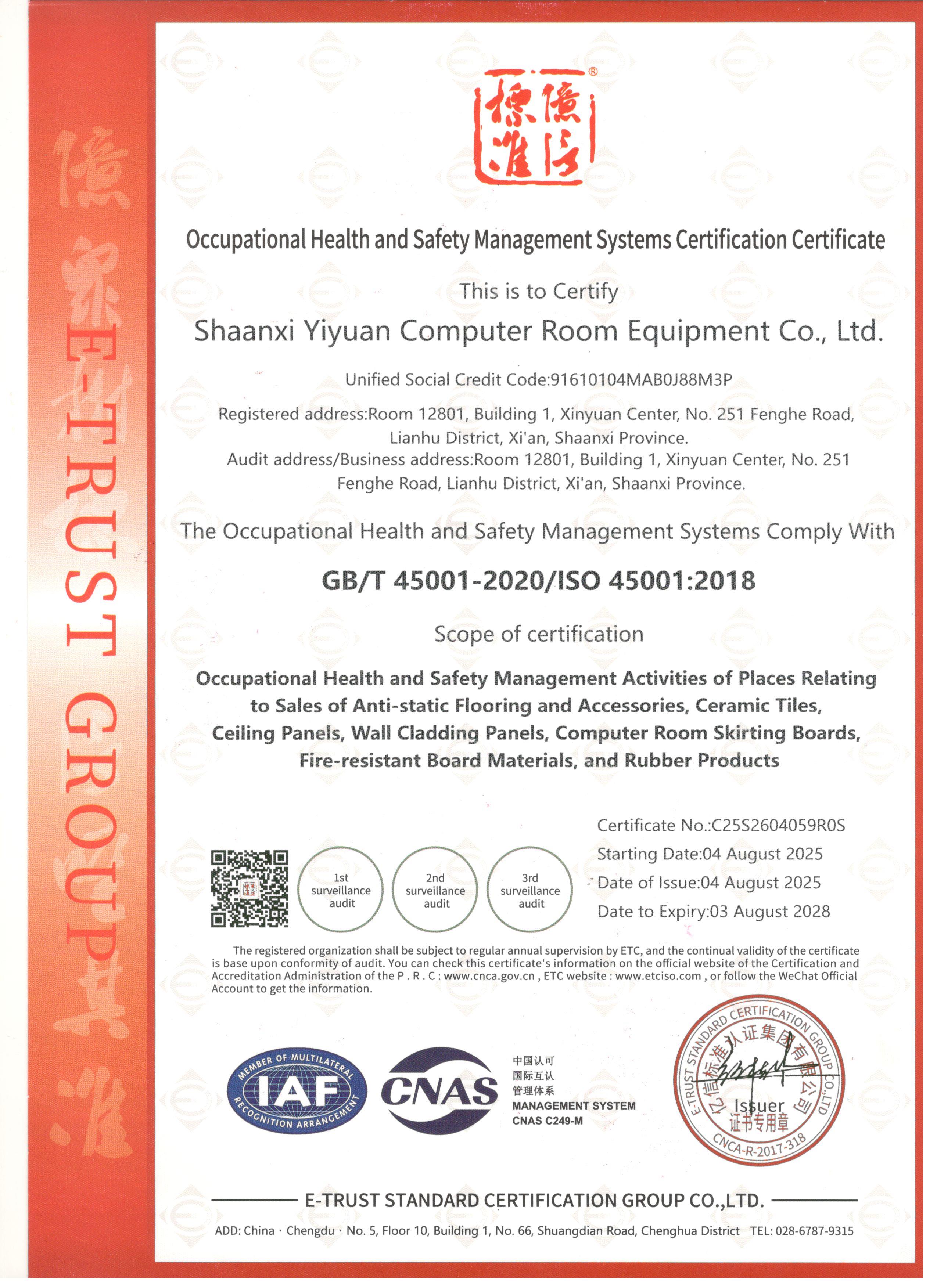

Certifications & Standards

1. Fire Performance: According to GB50222-2017 standard, the system is Class B1.

2. Environmental: According to GB 18580-2017, formaldehyde emission meets E1 Class requirements.

Why Choose Our Solutions

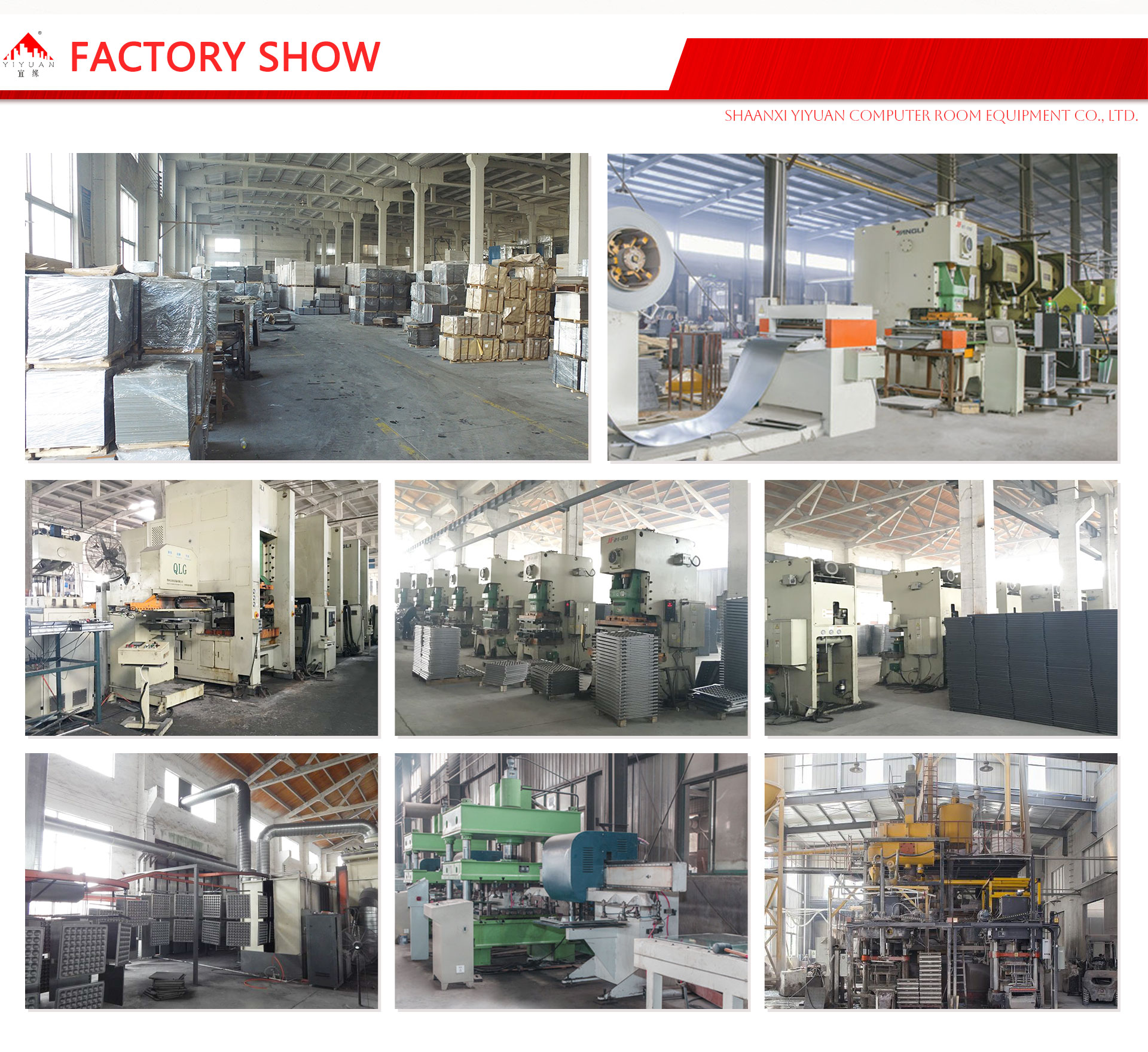

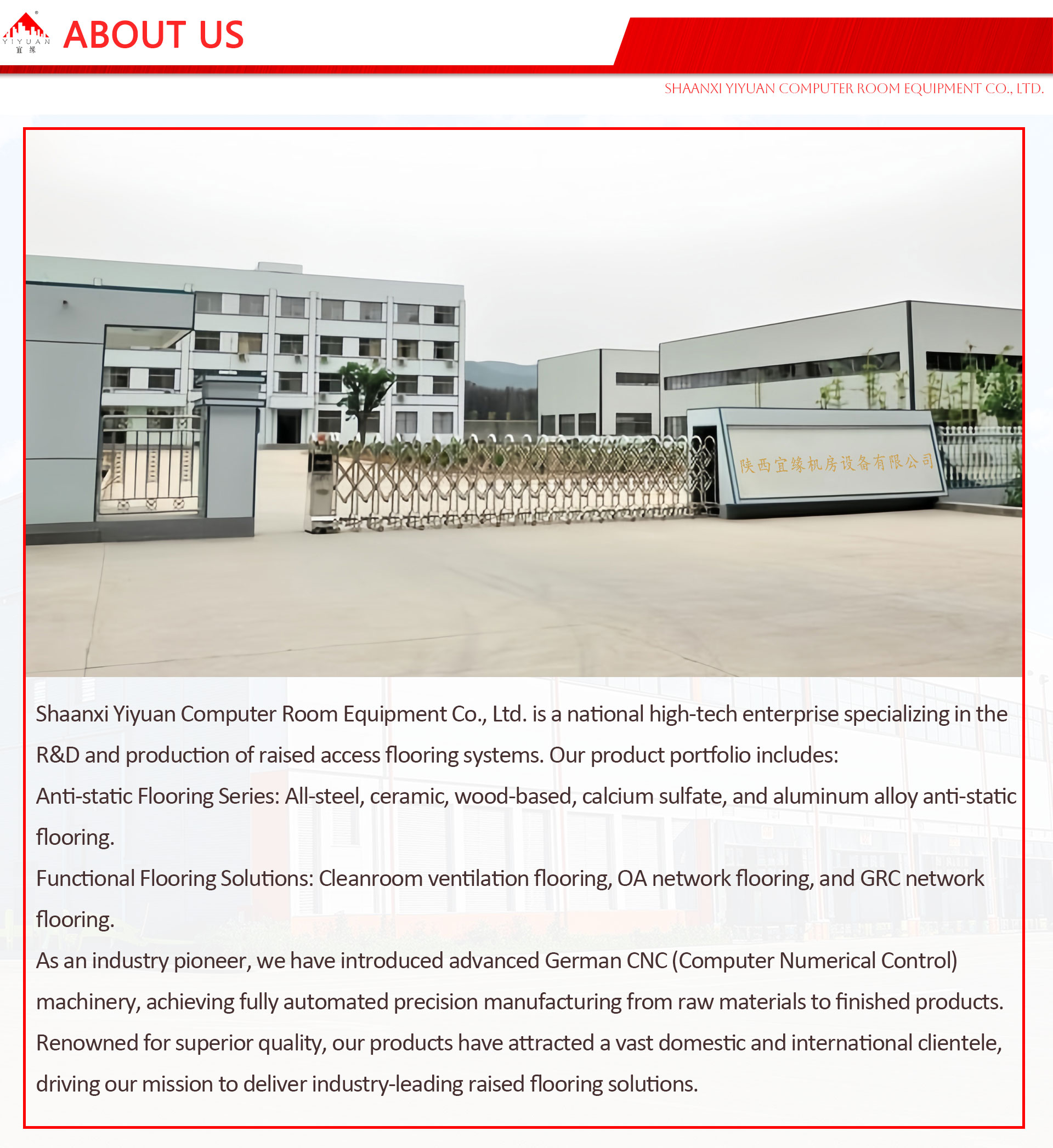

As a national high-tech enterprise, we specialize in R&D and production of raised access flooring. We have introduced advanced German CNC machinery, achieving fully automated precision manufacturing from raw materials to finished products.

Direct Factory

16 years of experience in data centers, server rooms, and clean rooms.

Quality Support

Comprehensive services including customized solutions and online technical support.

Packing & Shipping

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we operate specialized manufacturing facilities across multiple provinces to ensure efficient production and supply.

Q: How do you ensure product quality?

A: We maintain a comprehensive quality control system. Our experienced professional team tests quality and specifications piece by piece throughout the production and packaging process.

Q: Can I request samples?

A: Yes, samples are provided free of charge. Courier fees are typically payable by the recipient, unless otherwise arranged for long-term partners.

Q: What are the fire and environmental ratings?

A: Our flooring systems meet the GB50222-2017 Class B1 fire performance standard and the GB 18580-2017 E1 Class environmental protection requirements.

Q: What are your shipping and delivery options?

A: We work with leading shipping partners to deliver goods globally, including delivery to seaports, construction sites, or designated warehouses.

Q: What are your standard payment terms?

A: For orders under USD 1,000, 100% advance payment is required. For larger orders, we typically require 30% advance payment with the balance payable against shipping documents.
