Product Description

Basic Info.

Model NO.

SW100 SLIM

Material

Aluminum Alloy

Type

Swing

Open Style

Swing

Opening Type

Power Driven

Special Function

Security

Color

Silver

Certification

TUV, CCC, ISO9001, RoHS, CE

Position

Commercial

Surface Finishing

Finished

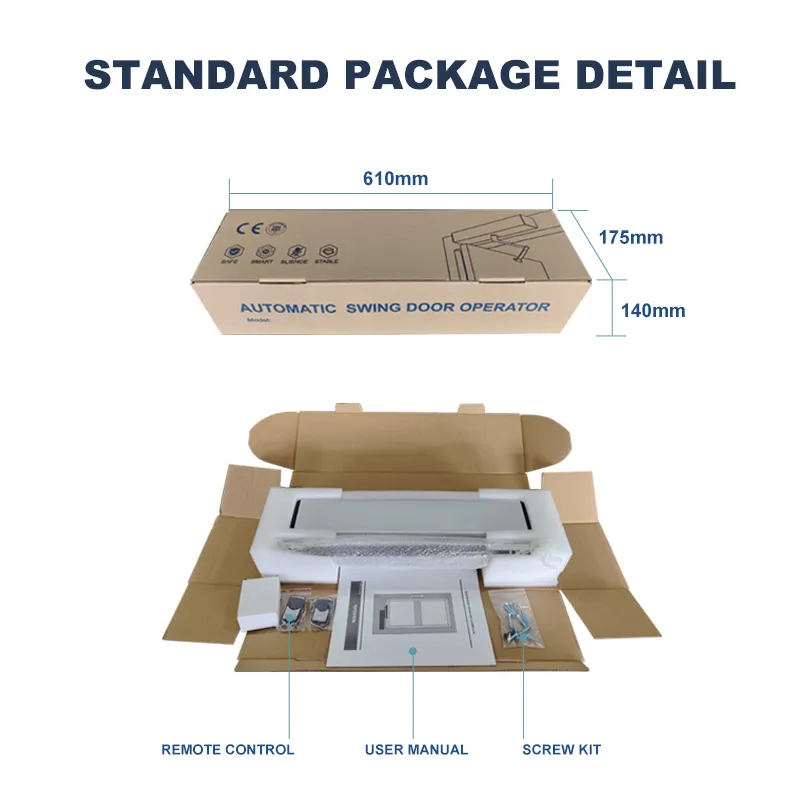

Transport Package

Cartons

Origin

China

HS Code

9032899099

Production Capacity

30000set/Year

Product Description

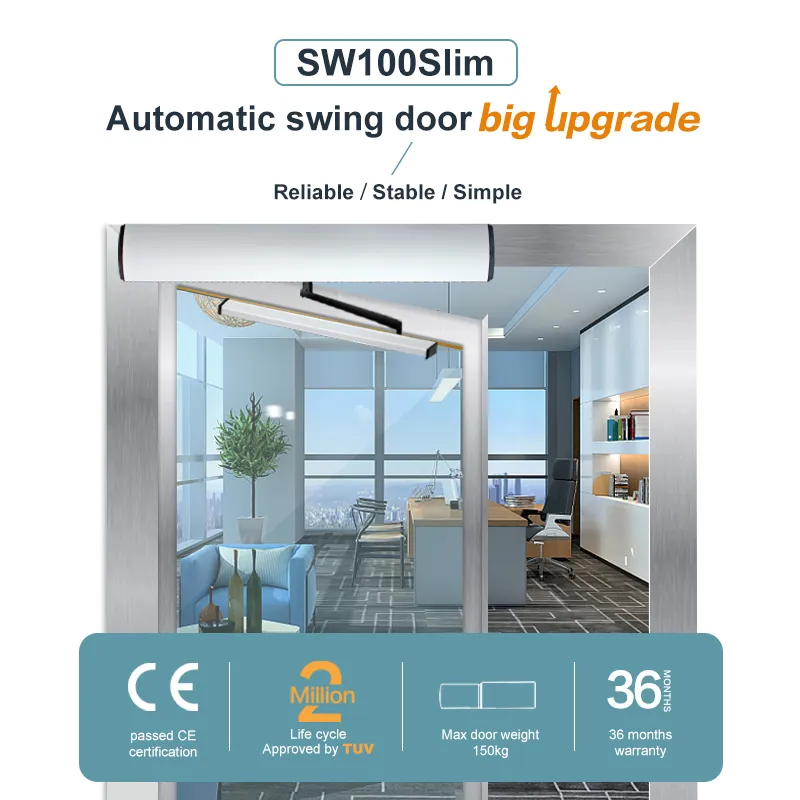

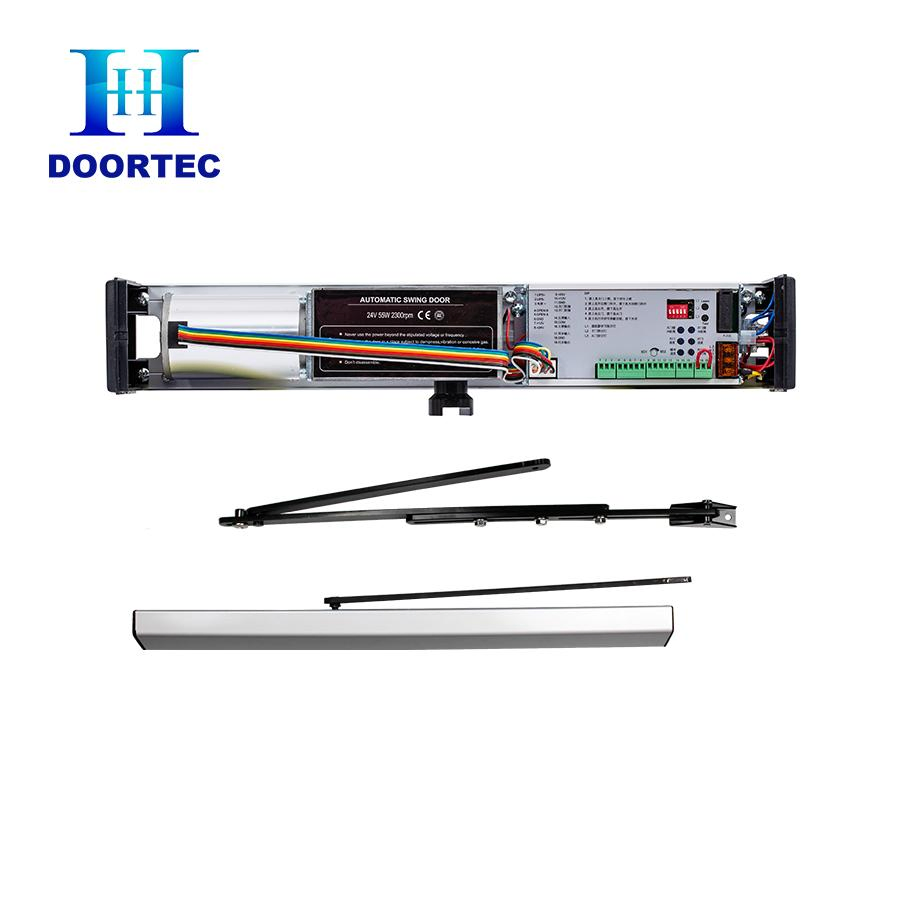

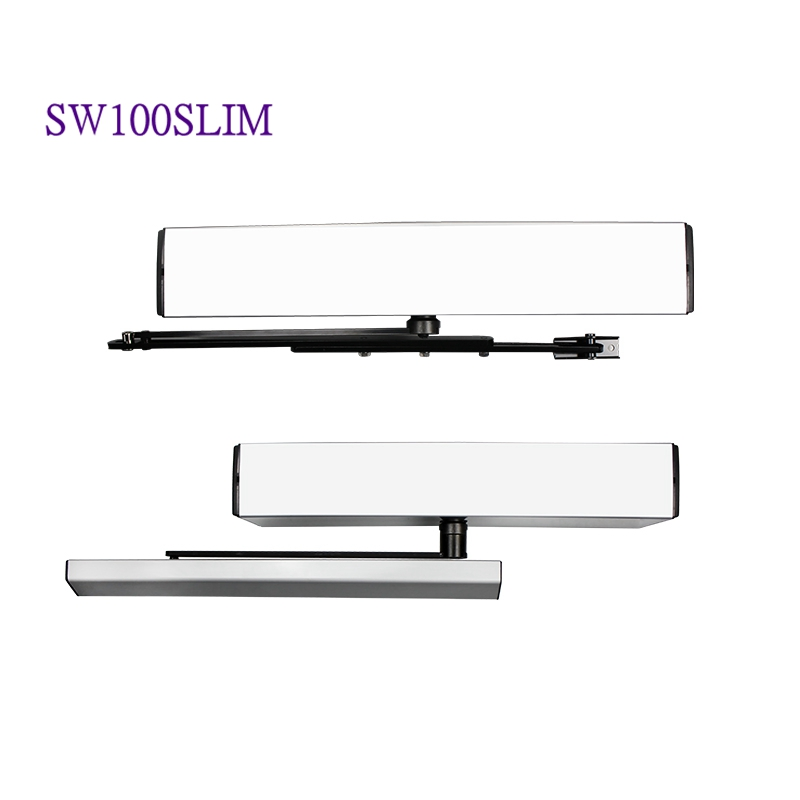

SW100-SLIM Automatic Swing Door Operator

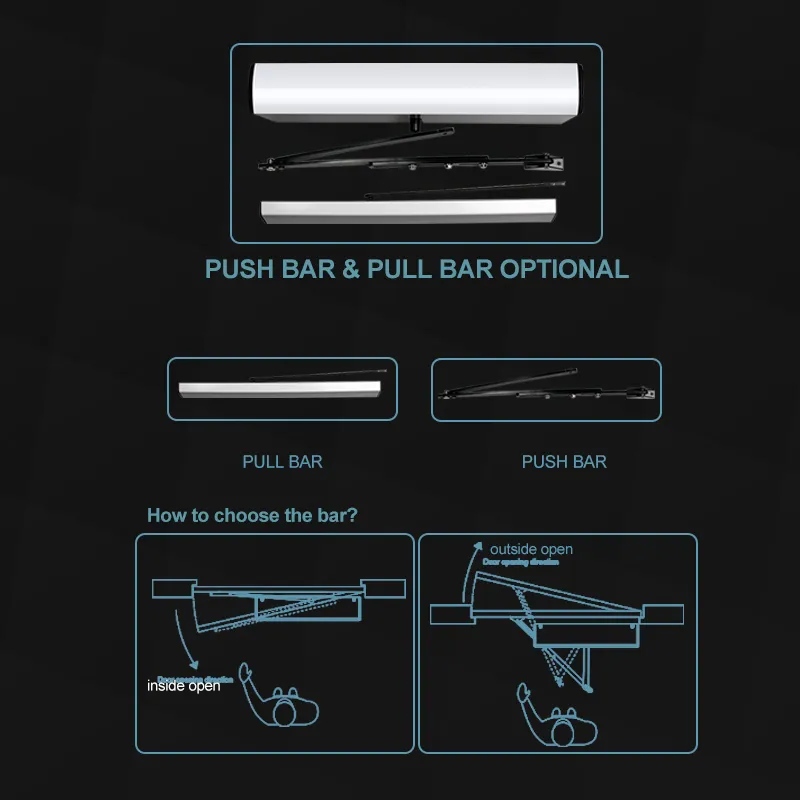

Push bar & Pull bar optional

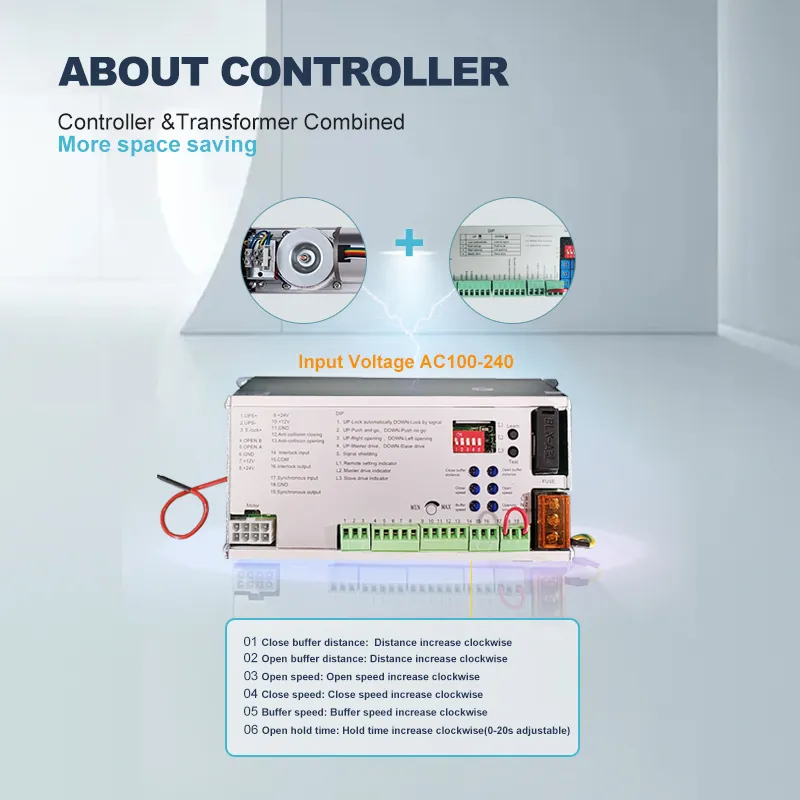

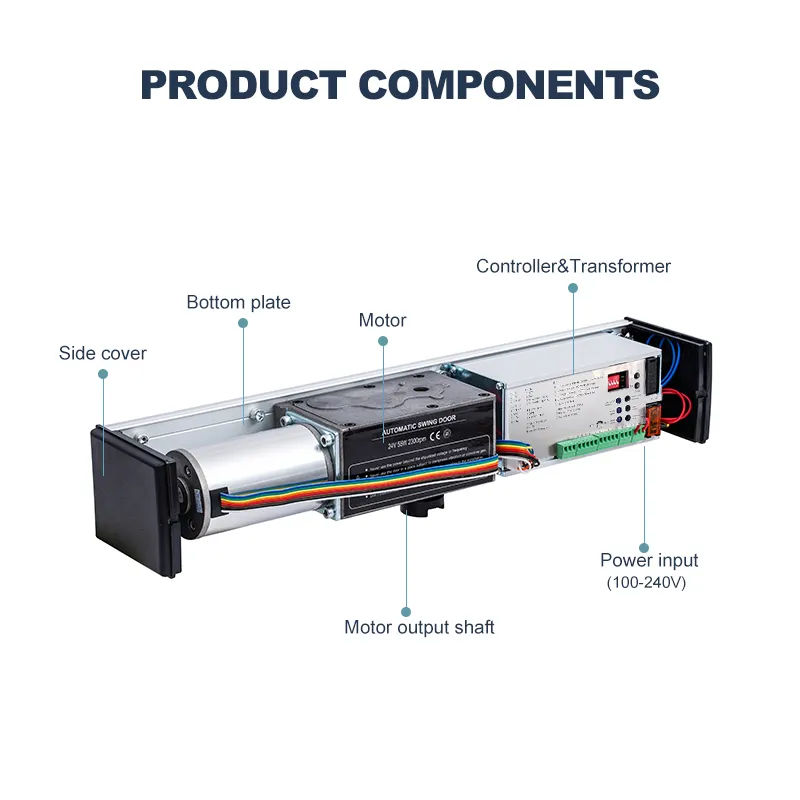

Controller & Transformer Combined More space saving
Input Voltage AC100-240
Sensor can be connected Inside and outside directly Non-interference.

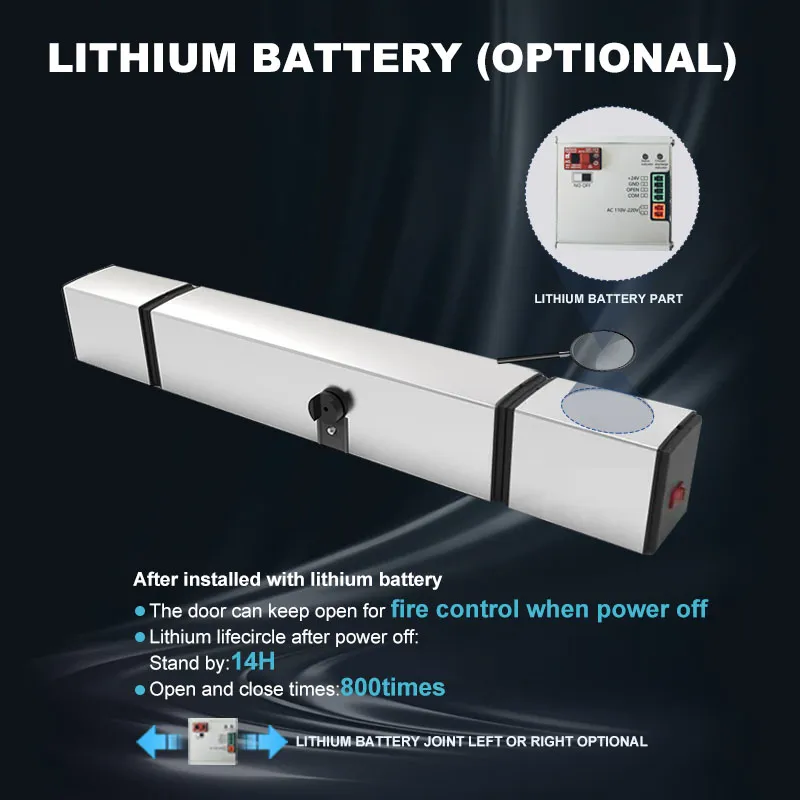

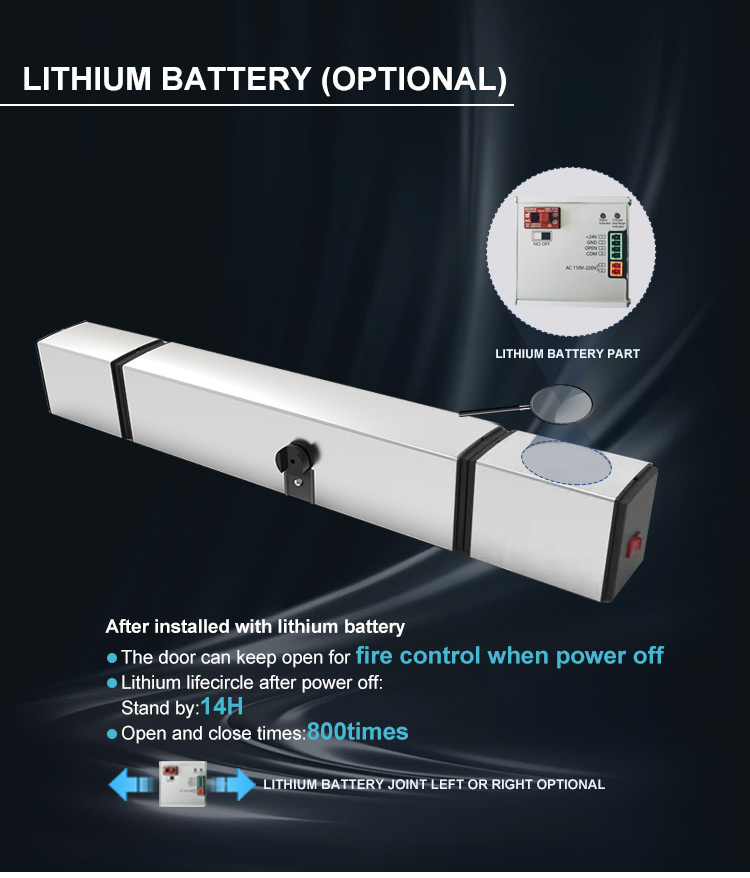

Lithium battery (optional): The door can keep open for fire control when power off; Lithium lifecircle after power off: Stand by: 14H; Open and close times: 800 times
Directly connecting the lock no need to connect power supply.

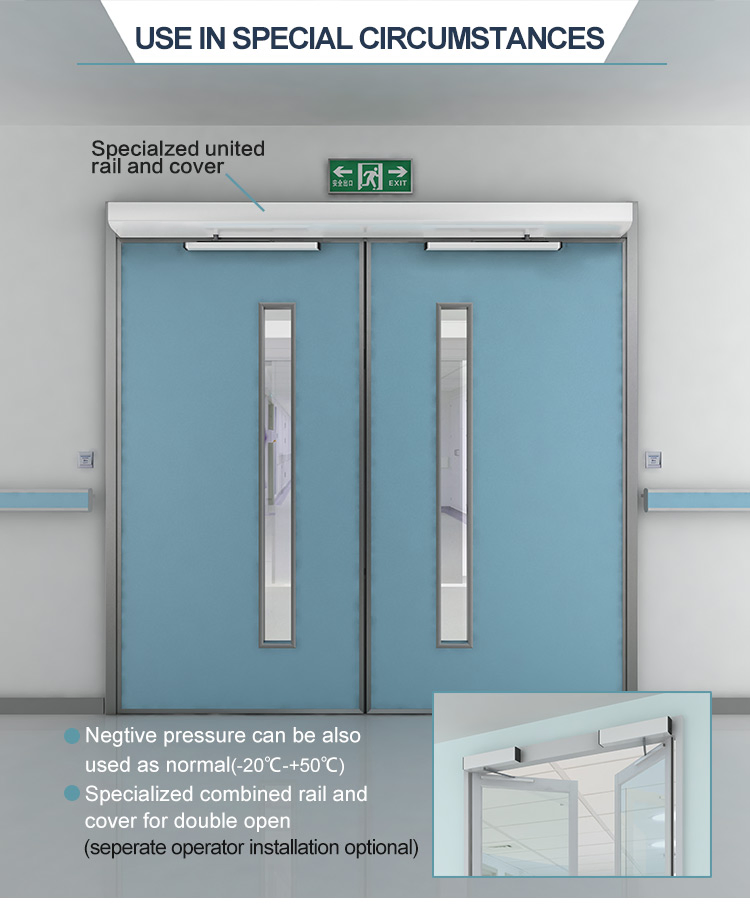

Specialized combined rail and cover for double open (seperate operator installation optional)

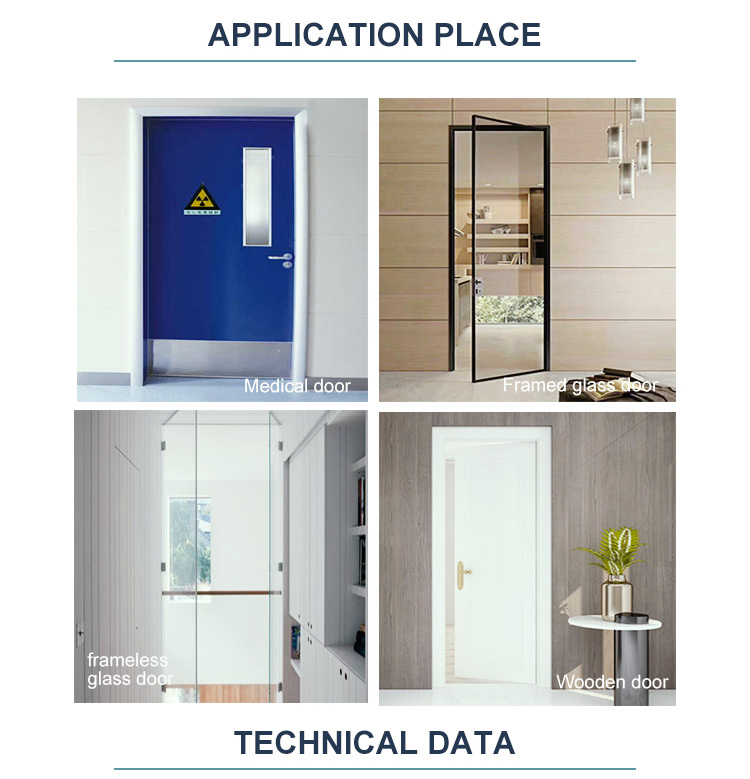

Can be used for Medical door, Framed glass door, frameless glass door, Wooden door.

Automatic Swing Door SW100slim Full Range Voltage 100kg Lifting Capacity Smart Home Automation

Power:	AC 100V-240V
Active open time:	3-7s/90°
Hold open time:	0-60s
Temperature:	-20ºC-+55ºC
Protection class:	IP21
Product weight:	5.5KG
Product size:	4758198mm(LWH)
Max open angle:	110°
Max door weight:	150KG

Frequently Asked Questions

What types of doors are compatible with the SW100 SLIM operator?

The SW100 SLIM automatic swing door operator is versatile and can be used on medical doors, framed glass doors, frameless glass doors, and wooden doors.

What is the maximum door weight the SW100 SLIM can support?

This heavy-duty operator is engineered to support a maximum door weight of up to 150KG.

Does the SW100 SLIM support backup power in case of electricity failure?

Yes, it features an optional lithium battery backup. During a power outage, the door can remain open for fire control, offering up to 14 hours of standby time and 800 open-and-close cycles.

What is the required input voltage for the system?

The operator features a combined controller and transformer design that supports a wide range of input voltage from AC 100V to 240V.

What are the opening speeds and maximum angle limits?

The SW100 SLIM supports a maximum opening angle of 110°. The active open time is adjustable from 3 to 7 seconds for a 90° swing.
