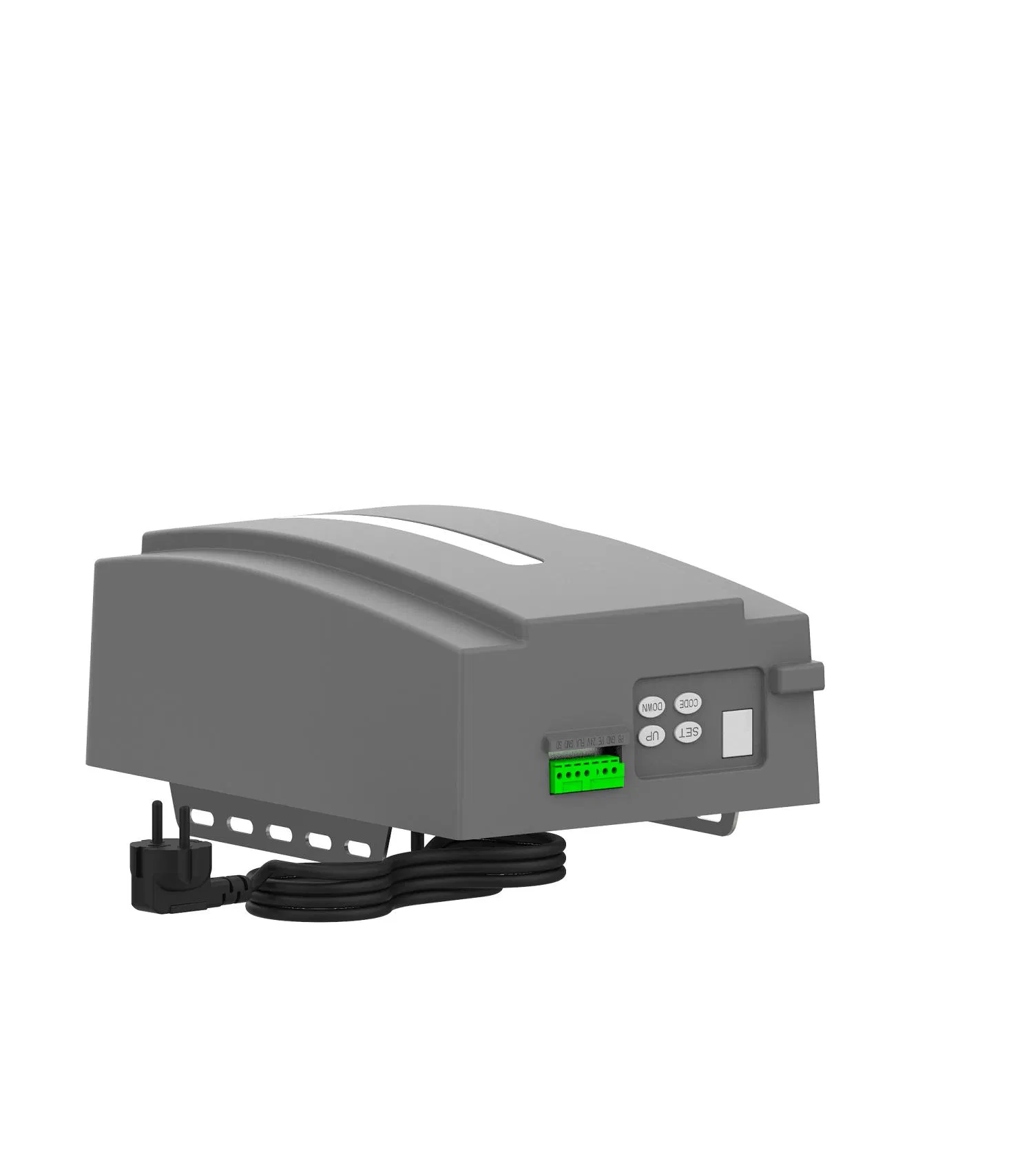

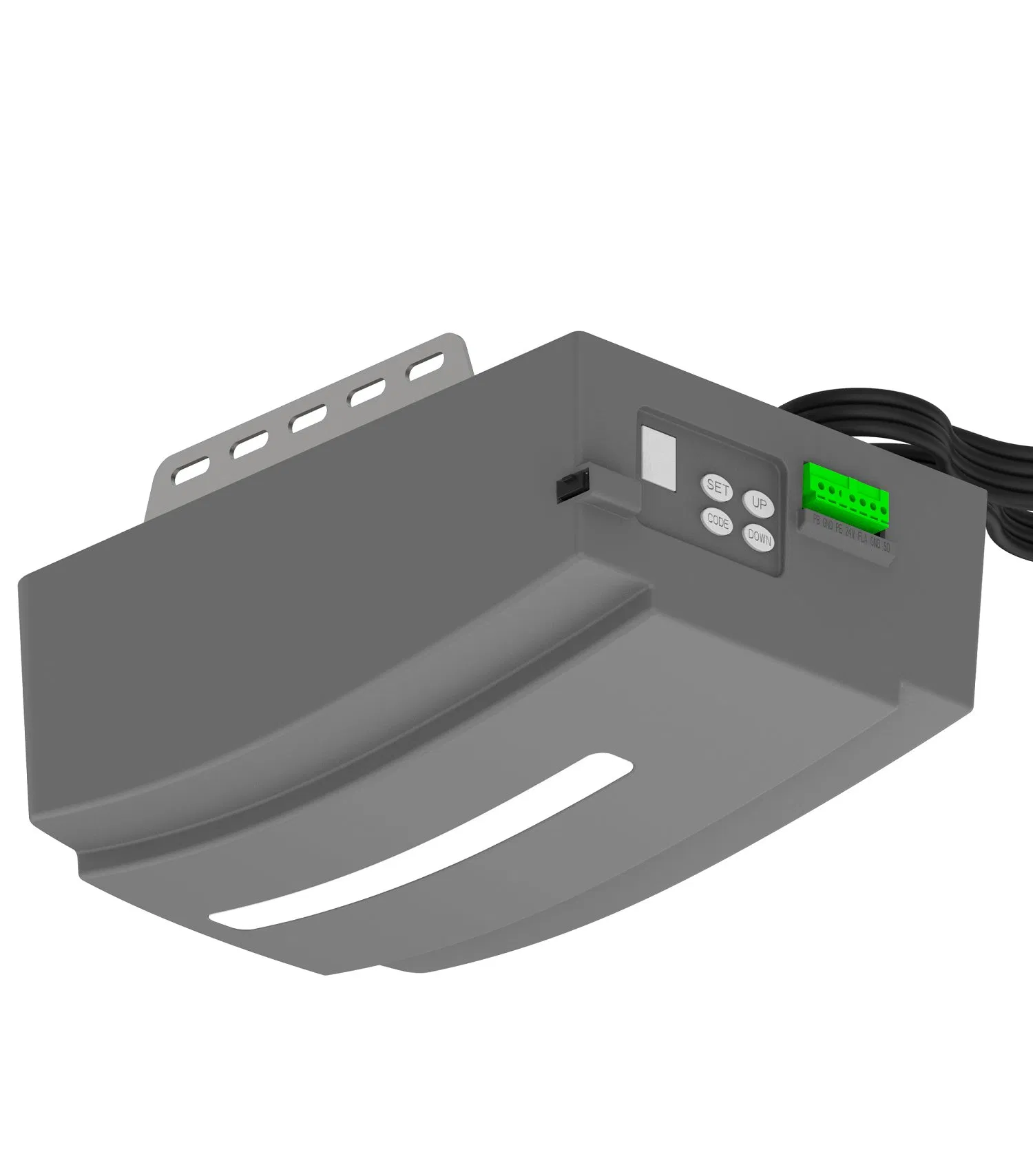

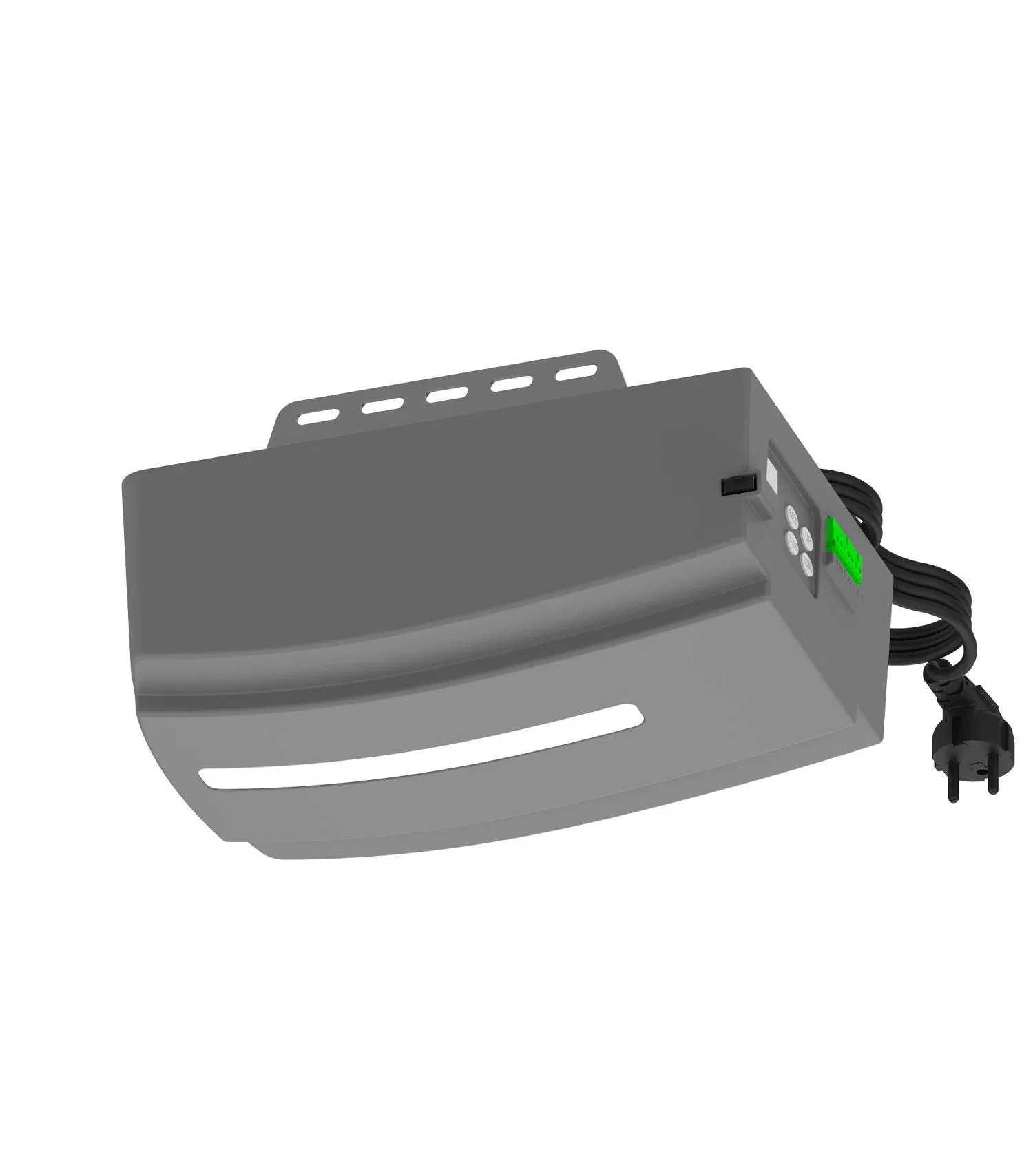

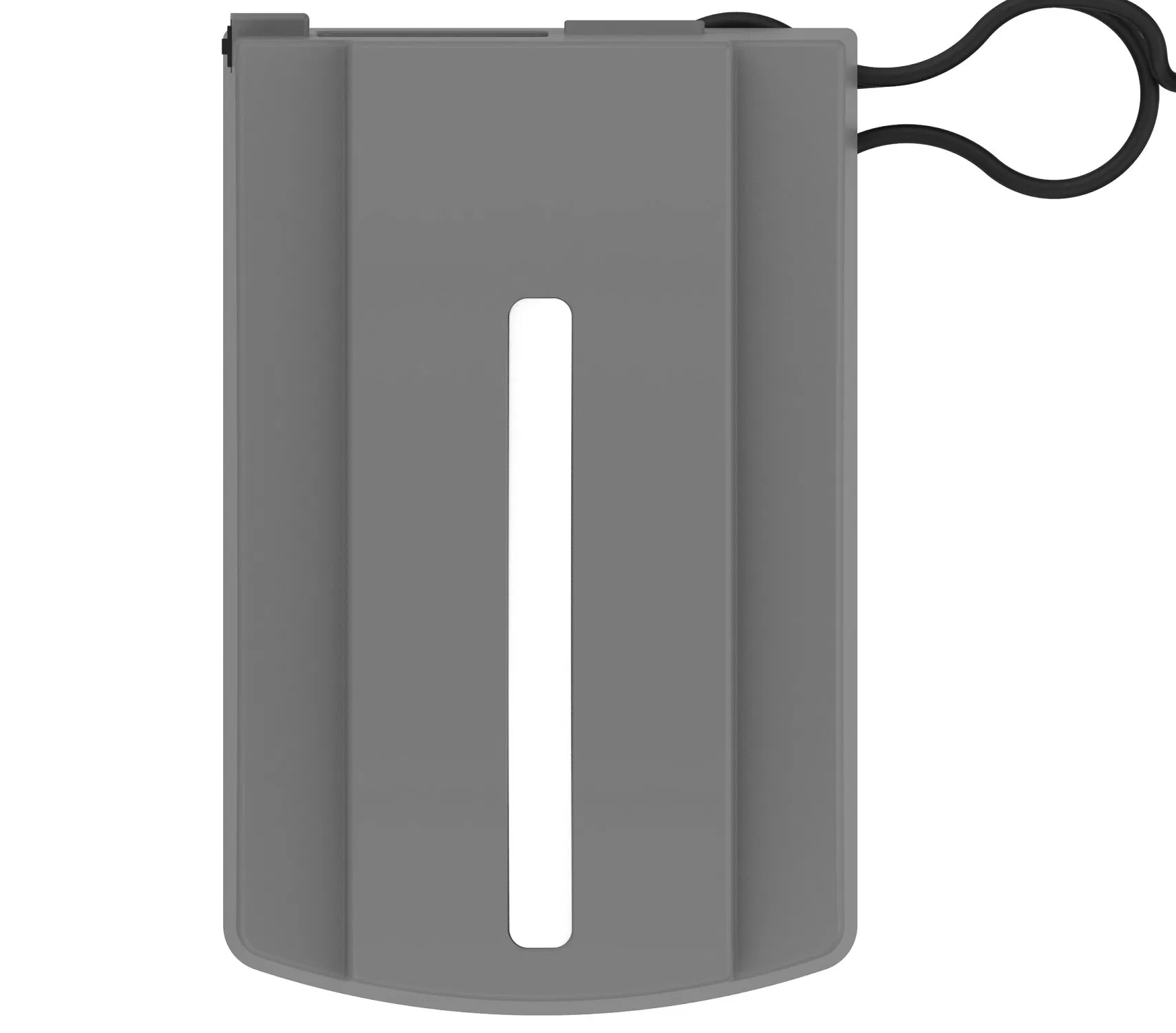

1200n Smart Garage Door Automation

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

PD1200 is compatible with garage door openers up to 18 square meters. It supports power supply voltages of 110V/60Hz and 220V/50Hz, with a maximum door lifting capacity of 130kg.

Product Parameters

Model	PD1200
Driving Type	Electronic Limit Switch
Power Supply	AC110V/60Hz; AC220V/50Hz
Max. Pull Force	1200N
Max. Door Area	18 Square Meters
Max. Door Weight	130kg (Balanced)
Max. Door Height	2400 - 3500mm
Drive Mechanism	Chain / Belt
Opening / Closing Speed	160mm / Second
LED Light	24V / 15PCS LED Bulbs
Radio Frequency	433.92 MHz
Protection Level	IP20
Working Temperature	-40°C ~ +50°C

Product Functions & Features

⚙️

Self-Learning Force

Automatically learns and profiles the opener power required for different stages of door travel.

📏

Electronic Limit

Simple and quick adjustment exactly from the control panels for a hassle-free setup.

💡

Energy Saving LED

3-minute LED light delay switches on with each cycle to illuminate your darkened garage.

🔋

Battery Backup

Available battery backup support ensures operation even during power failures at home.

🔒

Self-Lock Gear

The gear motor features a self-locking mechanism with its disengagement systems for added security.

📡

Transmitter Technology

Rolling Code technology (433.92 MHz) with 4-channel design to control up to 4 different doors.

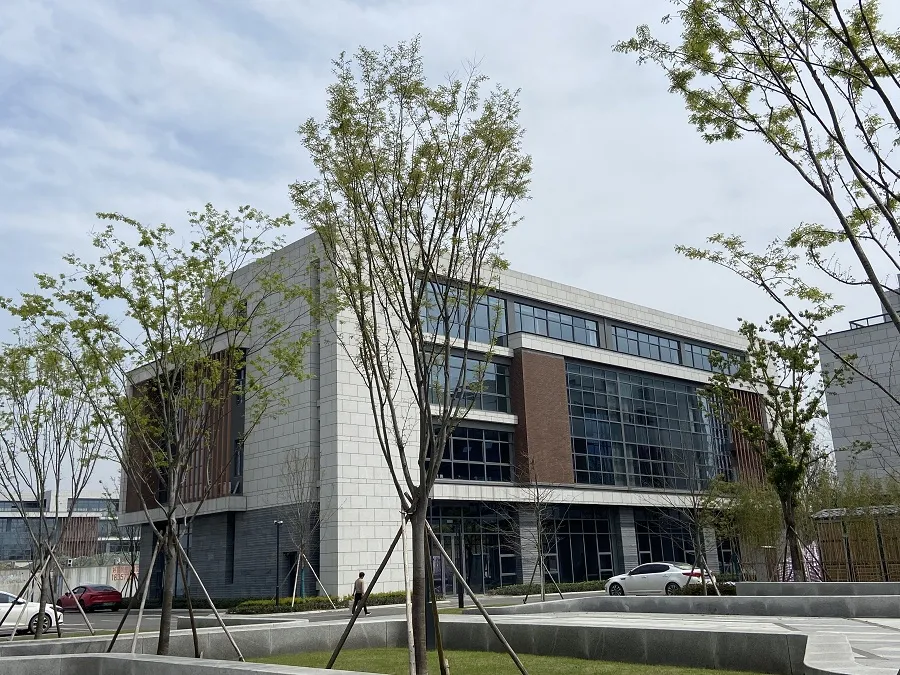

Applications & Solutions

Designed for low headroom applications, requiring as little as 30mm between the ceiling and the highest point of door travel.

Comprehensive solutions for gates and doors automation, residential and commercial garage doors, and industrial sectional doors.

Frequently Asked Questions

What is the maximum door weight the PD1200 can handle?

The PD1200 can handle balanced garage doors with a maximum weight of up to 130kg.

Is it compatible with different voltage standards?

Yes, the unit is compatible with both AC 110V/60Hz and AC 220V/50Hz power supplies.

How fast does the door open and close?

The opening and closing speed is approximately 160mm per second.

What happens if there is a power outage?

The system includes a manual release solution for manual operation, and it also supports optional battery backup systems.

Can I control multiple doors with one remote?

Yes, the transmitter uses a 4-channel design, allowing you to control up to 4 different doors with a single remote.

What safety features are included for obstructions?

The opener features self-learning obstruction force measurement that automatically adjusts the power for safe operation during travel.
