518tw RFID Vehicle Tags Access Control Solutions for Enhanced Security

Overview

Basic Specifications

Model NO.	M-518TW
Structure	RFID Tag
Driving Type	Electric
Electric Current Type	DC
Power Voltage	AC/DC 12~30V
Connection Mode	Wi-Fi, Bluetooth
Function	Authorized Access Freely
Material	Plastic
Design Style	Modern
Application	Garage Door, Industrial, Commercial Doors
Specification	2pcs smart tag + 1 controller

Packaging & Delivery

Package Size	30.00cm * 19.00cm * 18.00cm
Package Gross Weight	2.000kg
Lead Time	3 days (1 - 10 Pieces) 12 days (11 - 100 Pieces) 30 days (101 - 1000 Pieces) To be negotiated (> 1000 Pieces)

Product Description

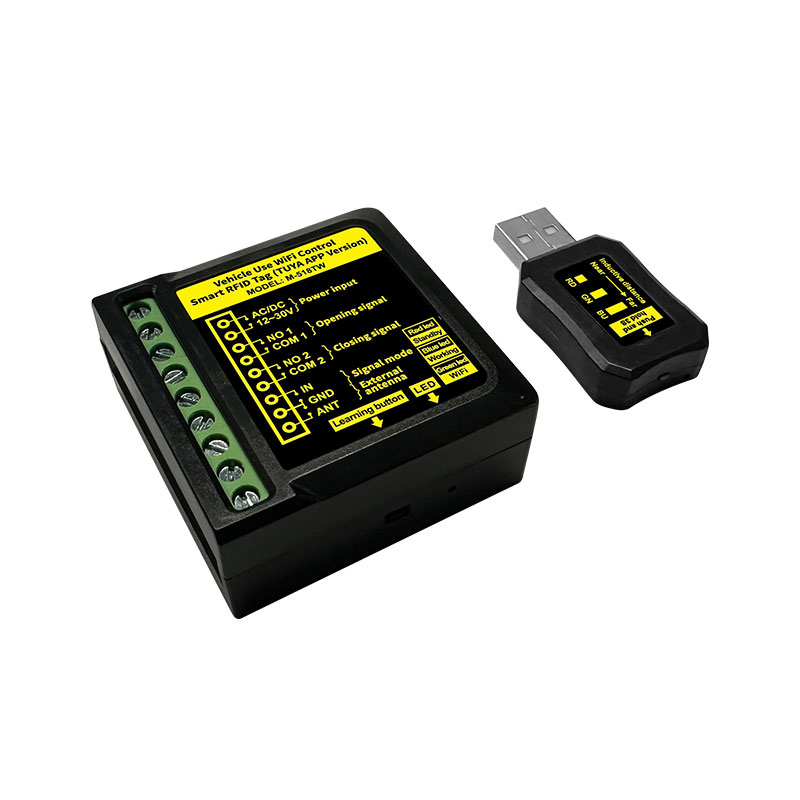

M-518TY Automatic Door Hands-free Access RFID Electronic Tag

RFID Vehicle Tags Access Control Solutions for Enhanced Security

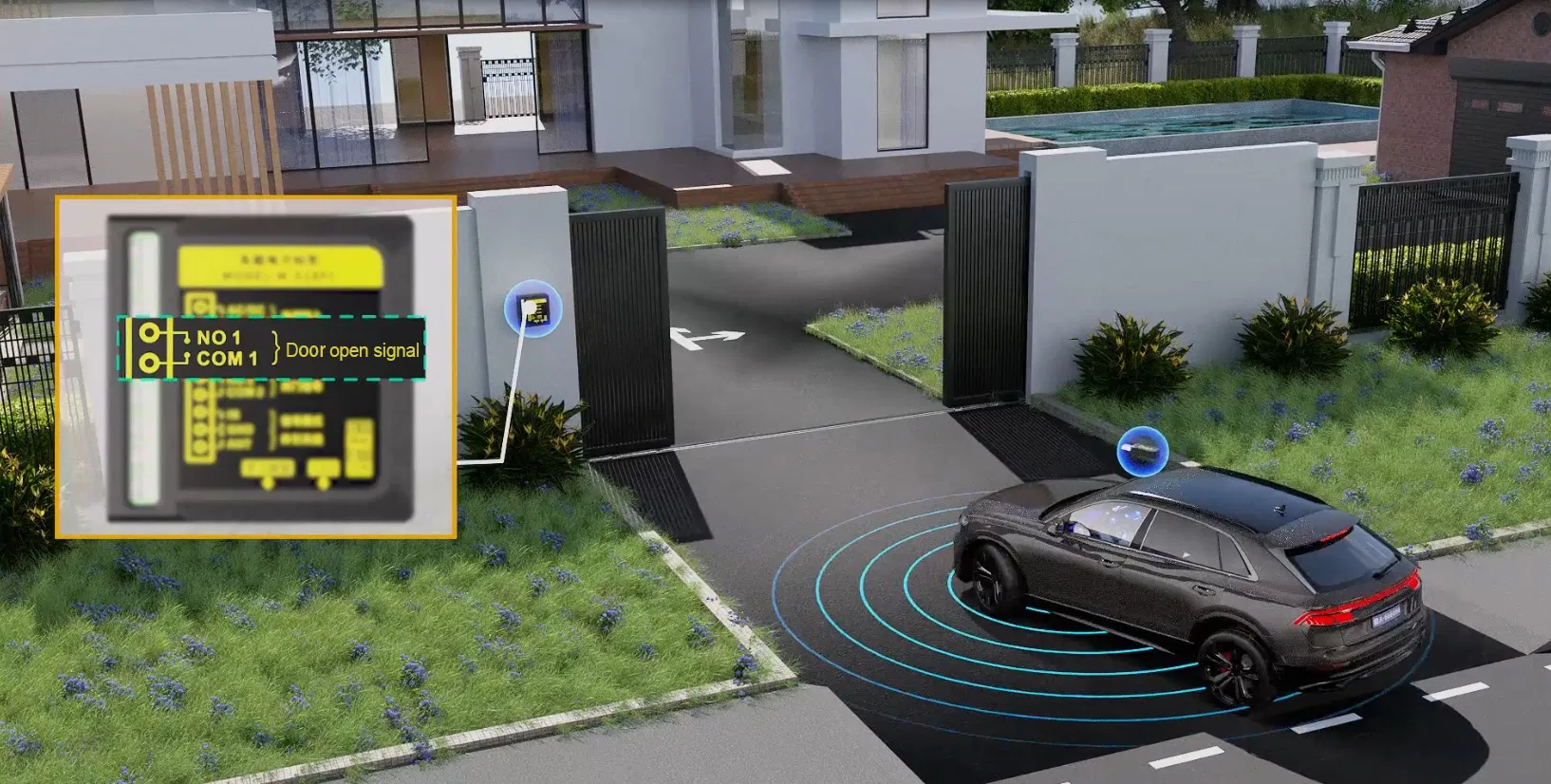

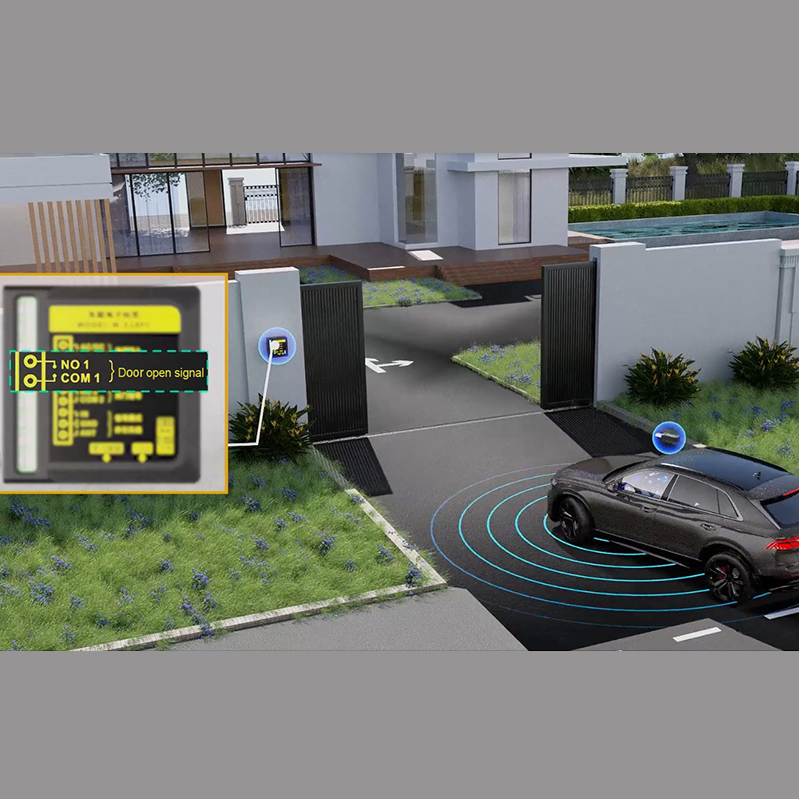

The M-518 Series is an advanced Smart RFID Tag system designed to provide authorized vehicles with completely automatic, hands-free entry through automatic doors and gates.

By pairing a compact receiver installed on your door controller with a USB-powered tag placed in the vehicle, the system enables a smooth, stop-free access experience within a robust 30-meter sensing distance. Ideal for factories, warehouses, home garage, private villa and commercial facilities, it enhances both security and operational efficiency.

Product Characteristics

RFID Vehicle Tags Access Control Solutions

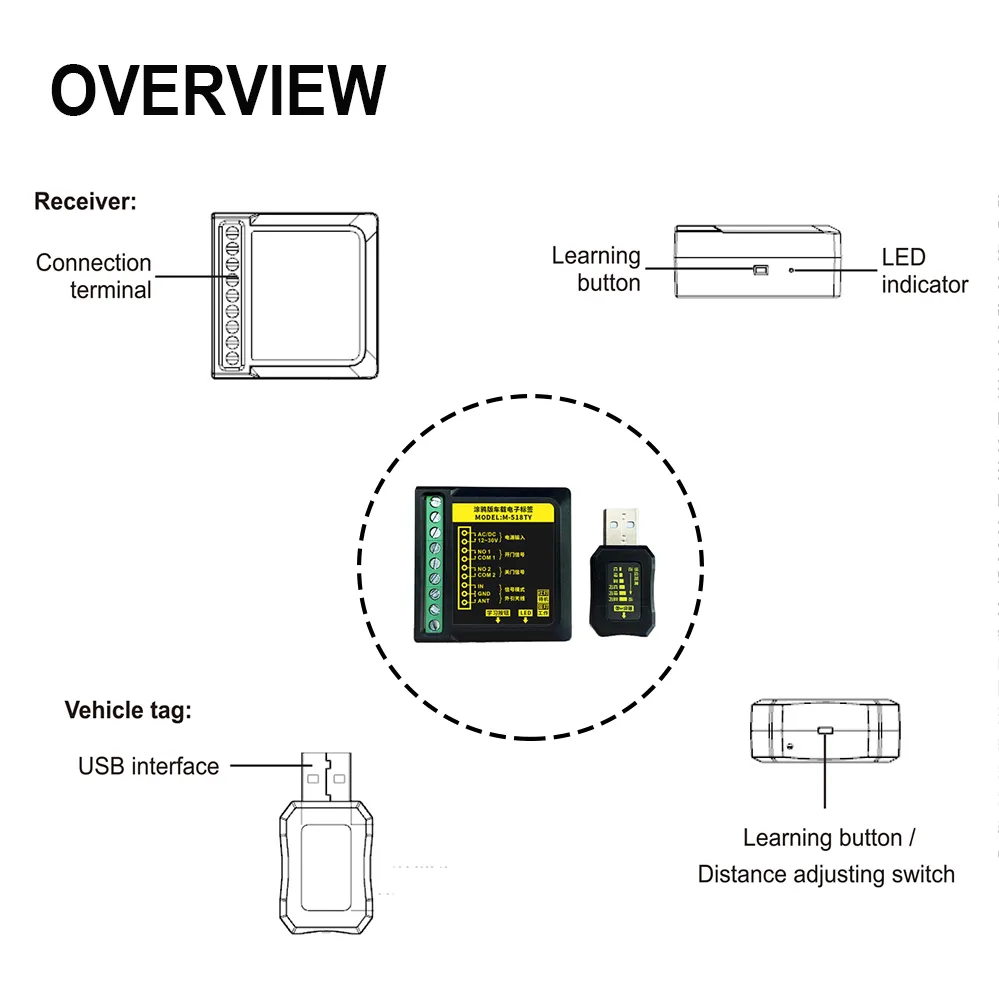

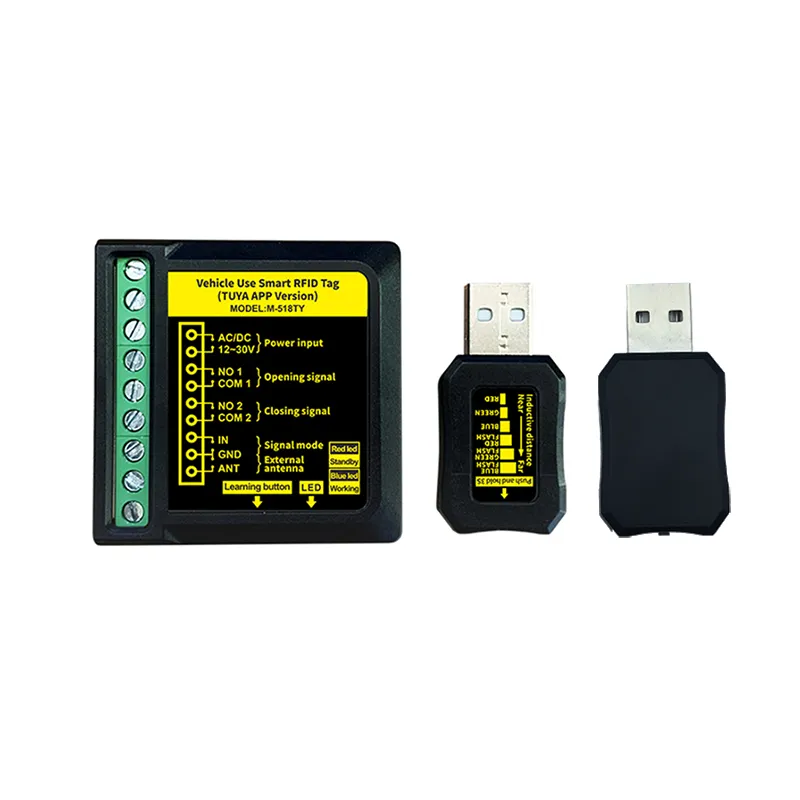

The 518ty functions as an access authorization controller, acting as both a vehicle recognition device and an automatic door sensor.

True Hands-Free Vehicle Access

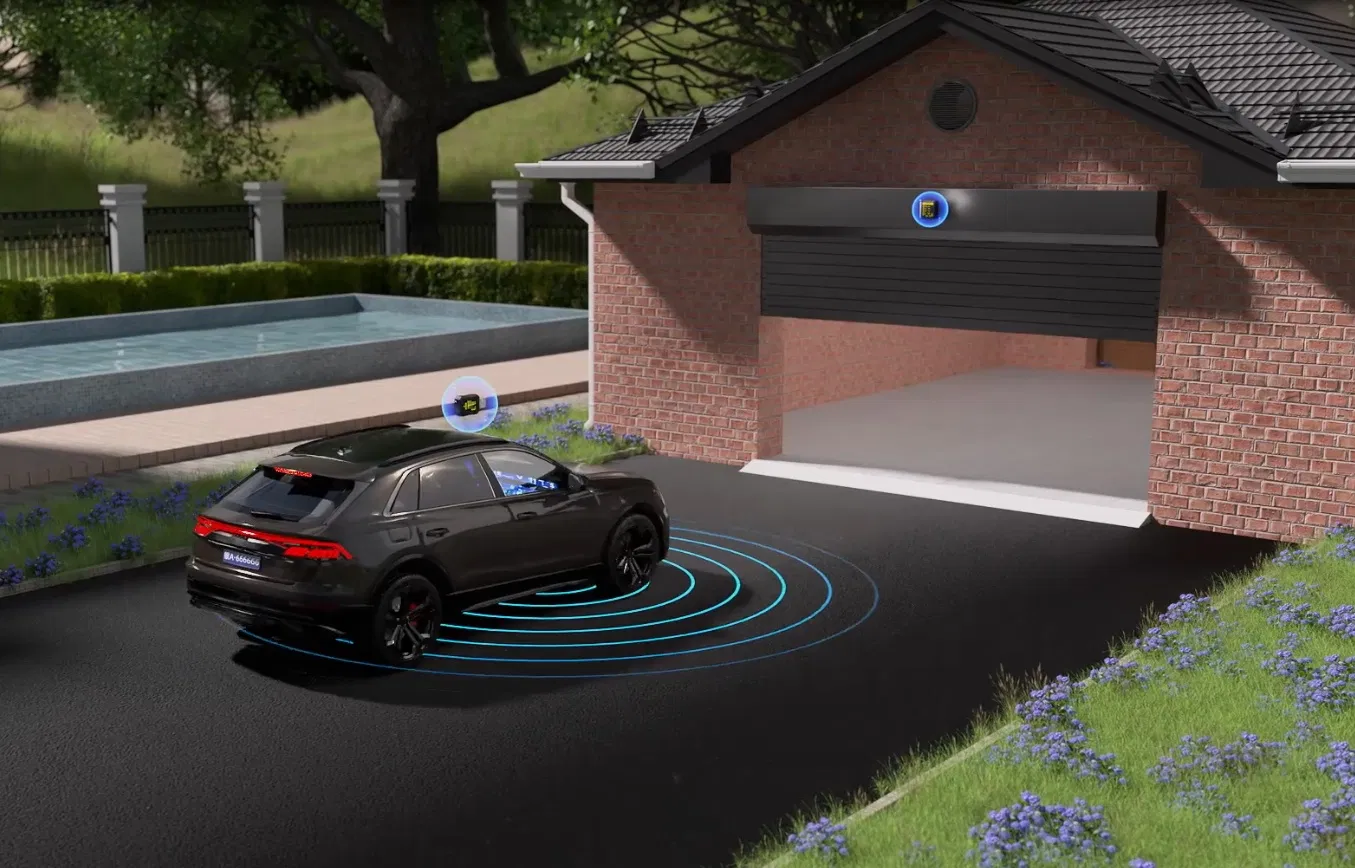

Automatic Opening: Authorized vehicles trigger the door to open automatically upon approaching within the preset range. No need for remotes, cards, or manual buttons.
Automatic Closing: The door automatically closes after the vehicle has departed and moved beyond the response distance, ensuring security and energy savings.

Long & Adjustable Sensing Range

Experience a reliable operating distance of up to 30 meters, providing ample time for the door to open before the vehicle arrives. Customize the activation range with a multi-level (6-level) distance adjustment to perfectly suit your driveway layout and prevent false triggers.

Mobile Phone Control Opening

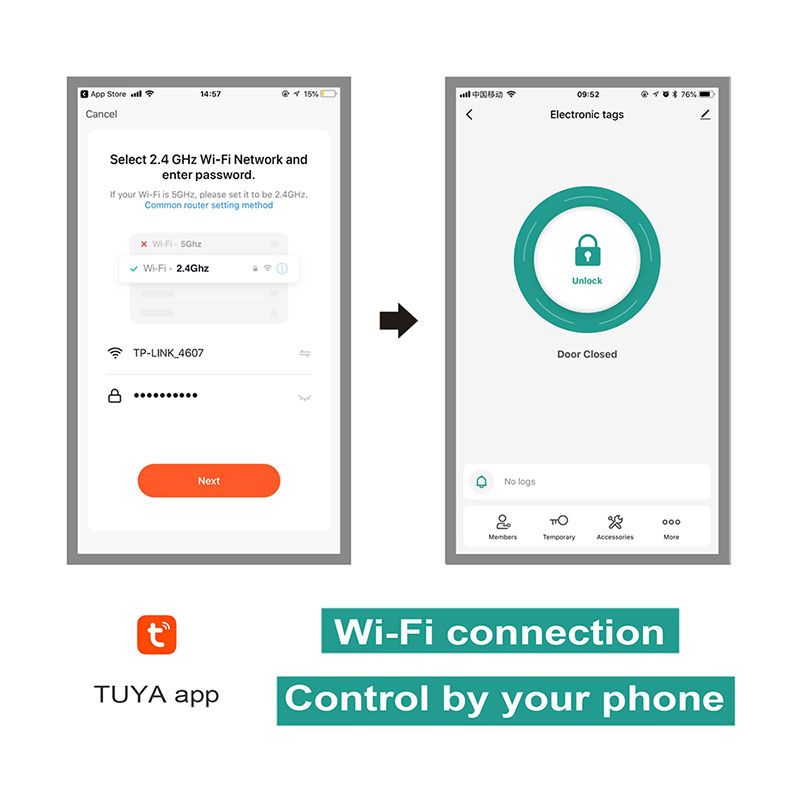

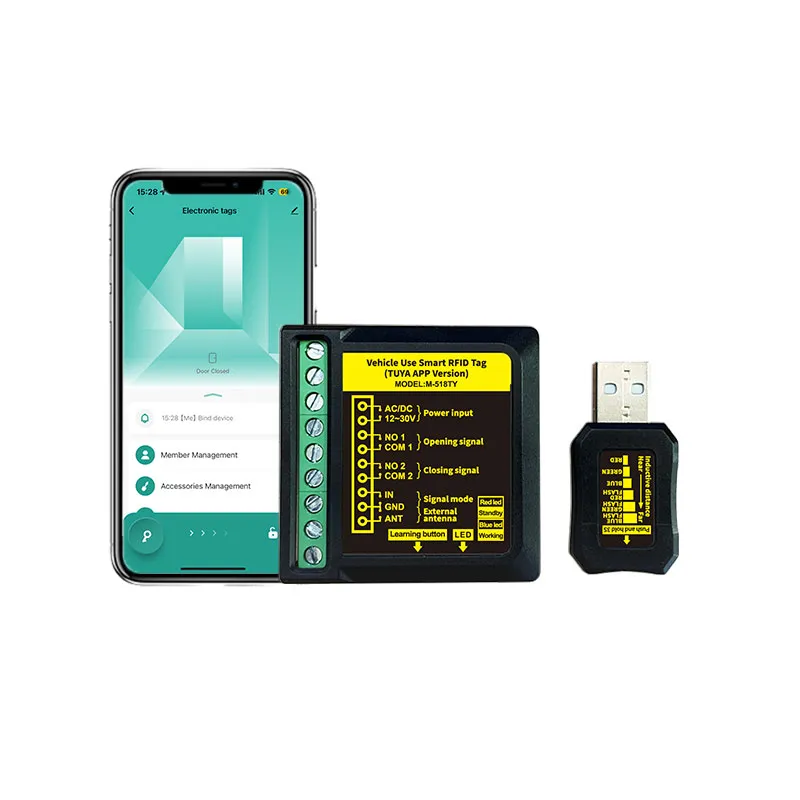

The system is equipped with a mobile phone APP that allows you to open the door remotely via your mobile phone.

Installation & Applications

RFID Vehicle Tag Installation Guidelines

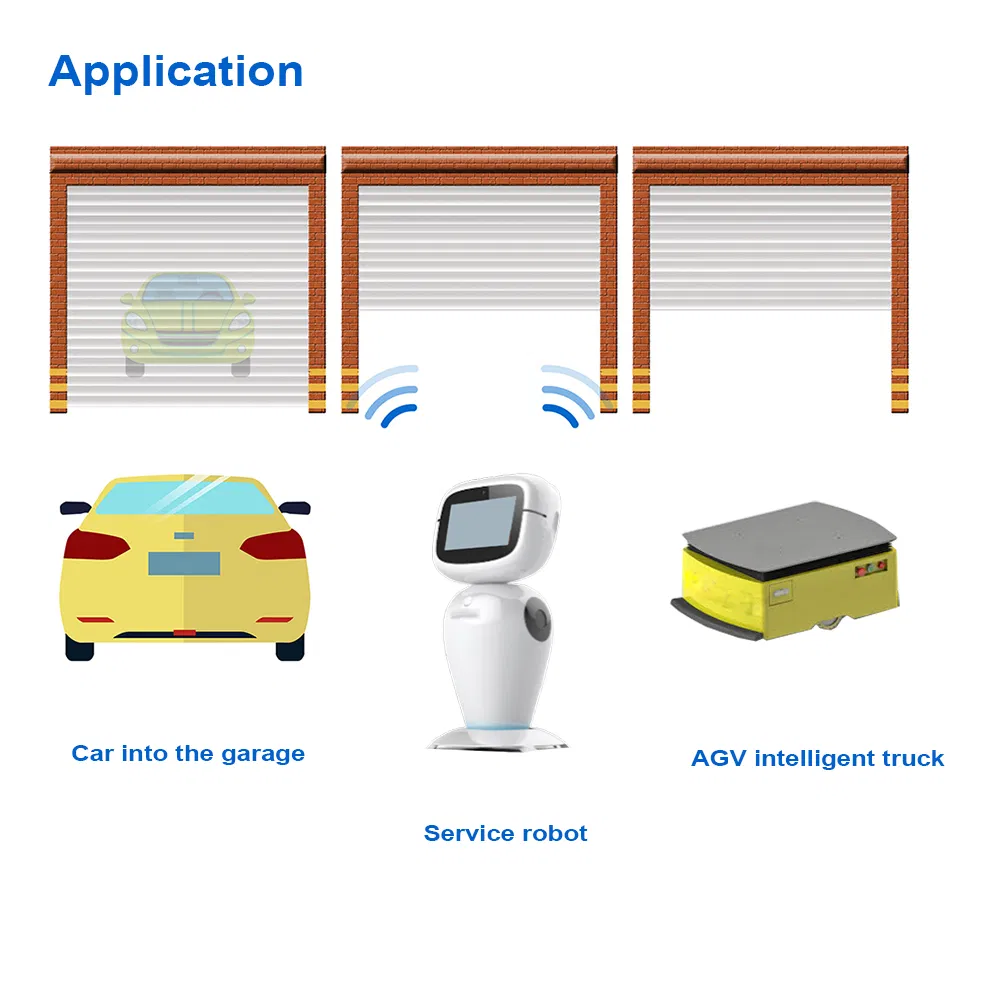

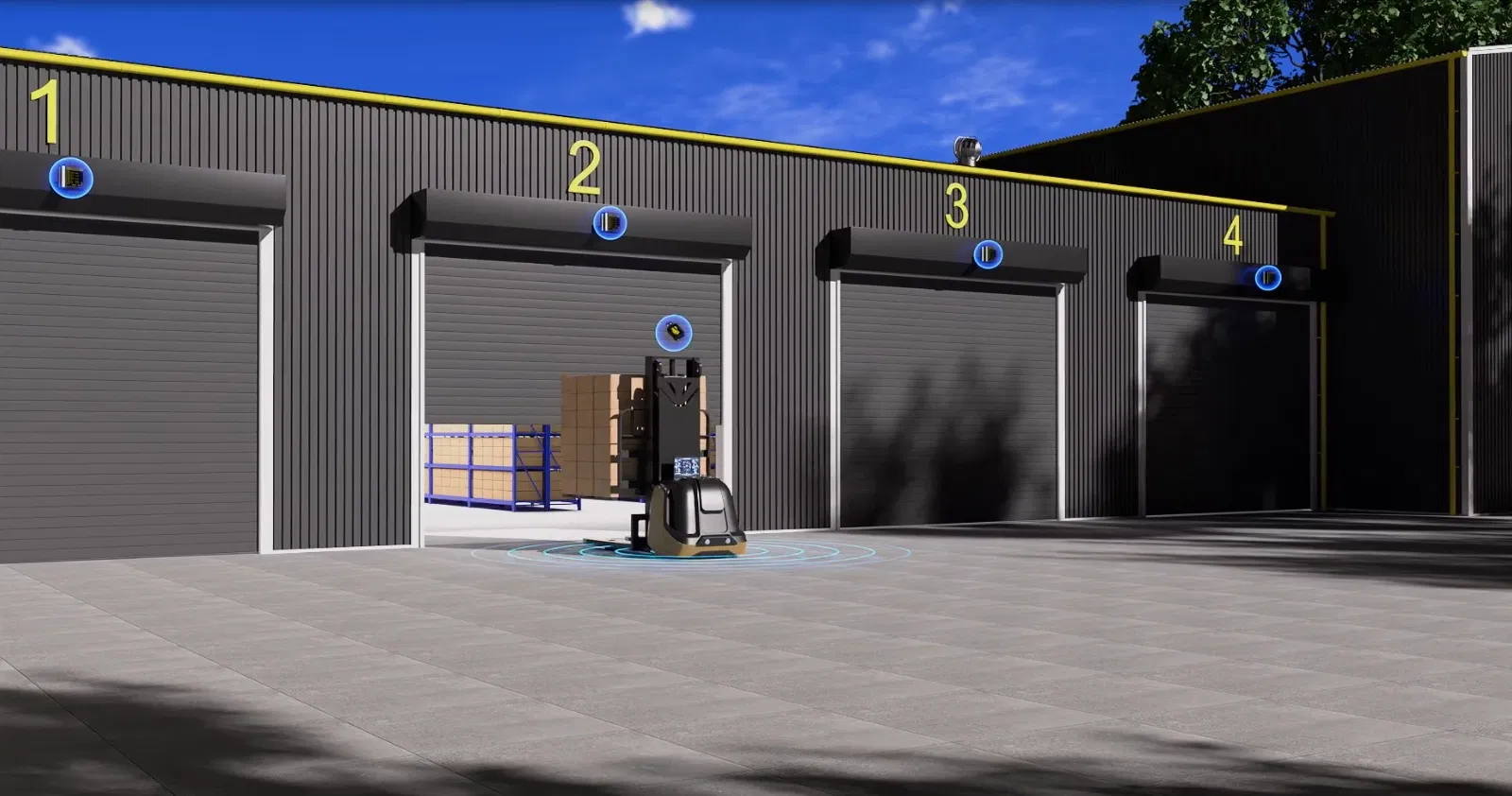

Ideal Applications:

Factory and Warehouse Roll-up Door Access
Secure Gated Community Entrances
Automated Parking Lot Barriers
AGV (Automated Guided Vehicle) Interaction Points
Logistics and Distribution Centers
Corporate and Industrial Plant Entrances

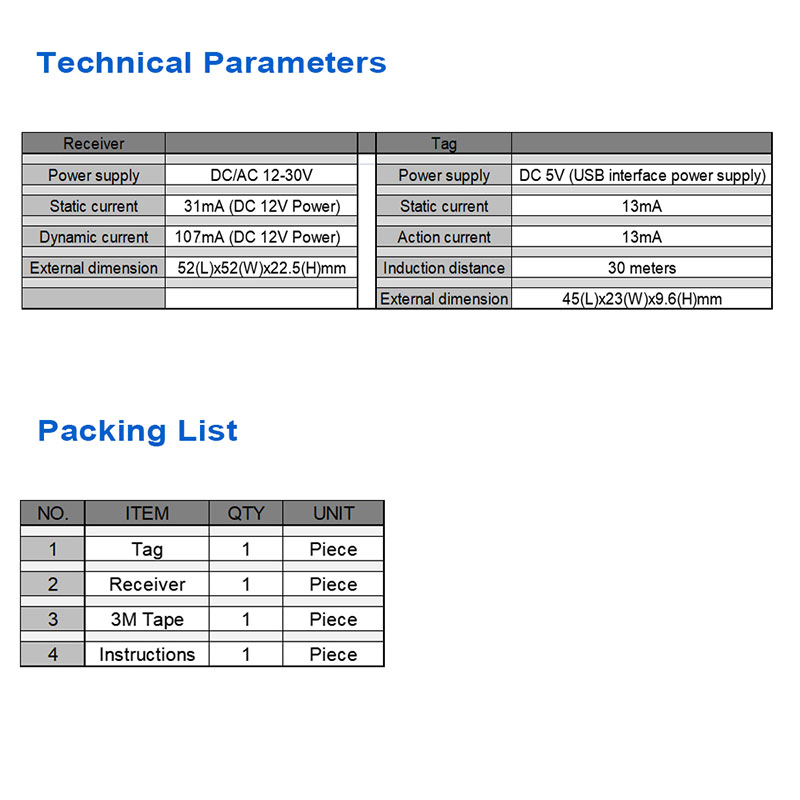

Technical Parameters

Product Specifications
Product Name	RFID Electronic Tag Sensor

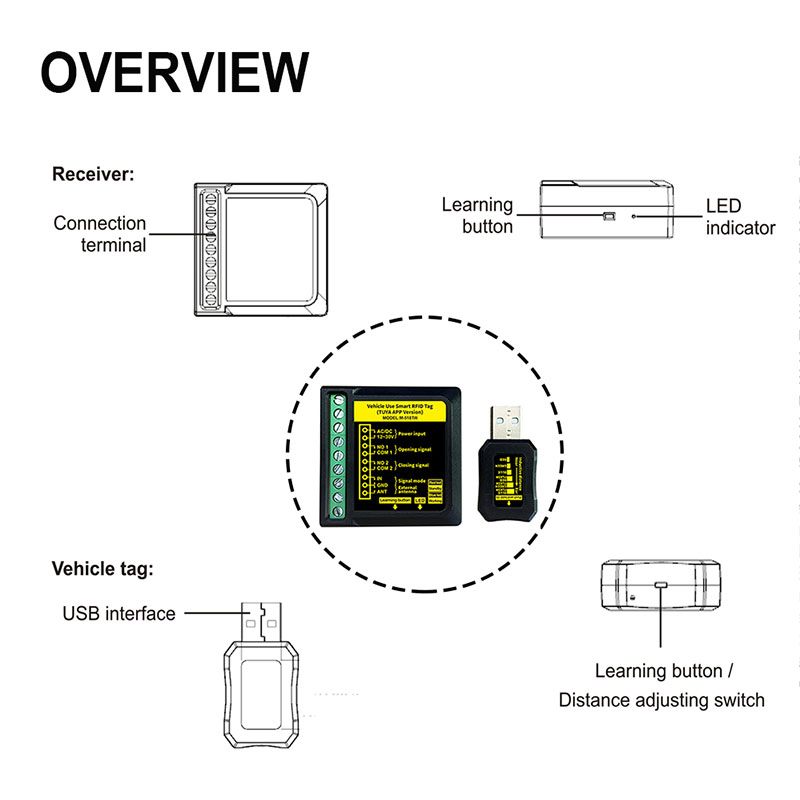

Receiver Parameters
Power Input	AC/DC 12~30V
Static Current	31mA (DC 12V power)
Action Current	107mA (DC 12V power)

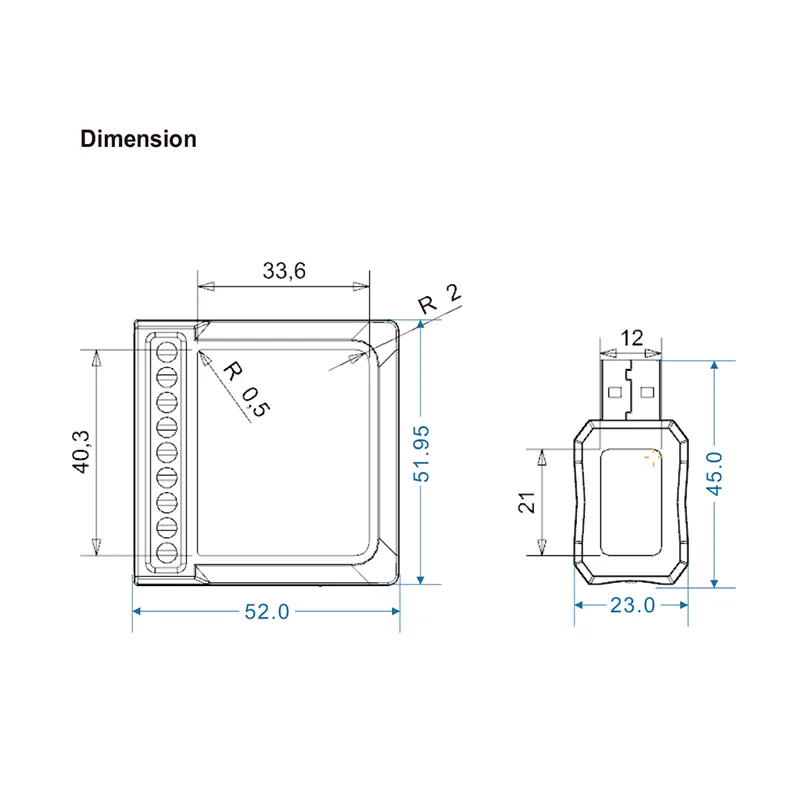

Dimension	51.95(L) x 52(W) x 22.5(H) mm
Electronic Tag Parameters
Power Supply	DC 5V (USB port)
Static Current	13mA
Sensing Distance	30 meters
Dimension	45(L) x 23(W) x 9.6(H) mm
Package Details

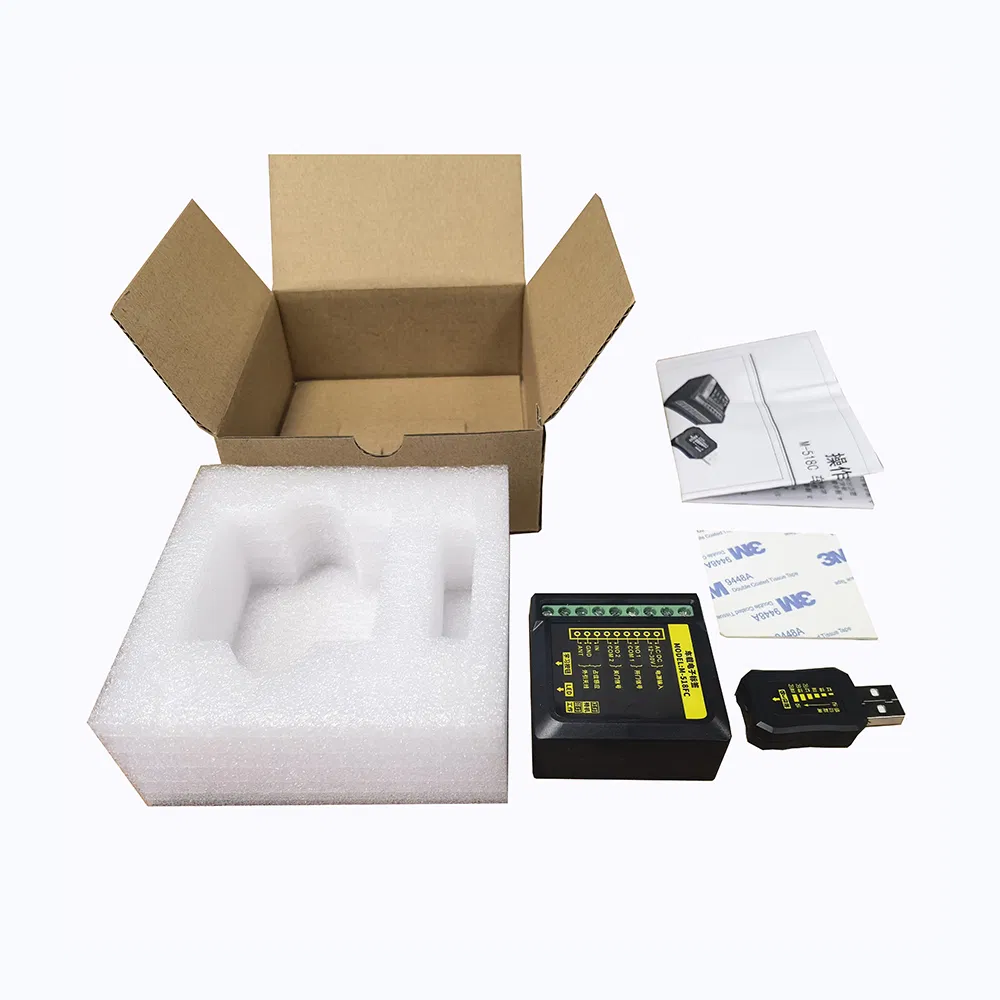

Packing List	Tag, Receiver, 3M tape, Operation Instructions

FAQ

1. Are you a manufacturer of these automatic door control systems?

Yes, we are a manufacturer. We design, develop, and produce a wide range of automatic door control products, including activation sensors, safety sensors, light barriers, photocell beams, push buttons, and smart locks, which are distributed globally.

2. Is the installation process for the RFID sensor system complicated?

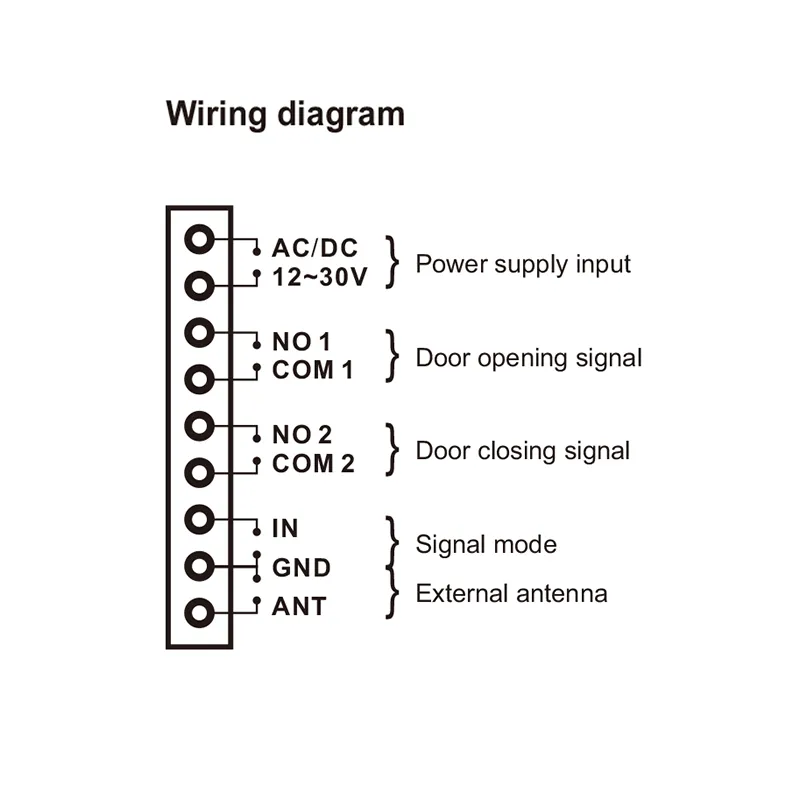

The installation process is straightforward. Each product package includes detailed operating instructions, wiring diagrams, and guidelines. Accessories for both surface and concealed installations are included. Additionally, support is available if you encounter any technical issues.

3. What is the maximum response distance of the M-518 Series RFID tag?

The system provides a robust sensing range of up to 30 meters. It features a customizable multi-level (6-level) distance adjustment to perfectly match your site requirements and prevent accidental triggers.

4. How is the vehicle electronic tag powered?

The electronic tag is designed for simple deployment and is powered via a standard DC 5V USB port. It has a low static current draw of 13mA.

5. What are the electrical parameters for the system's receiver?

The receiver operates on a power input range of AC/DC 12~30V. It features a static current of 31mA (at DC 12V) and an active action current of 107mA.

6. What is included in the standard shipping package?

The standard packaging list includes 1 Receiver, 2 Electronic Tags (standard kits), 3M mounting tape, and a set of detailed Operation Instructions.
