Feature
- Capacity: 10ton, 15ton, 20 ton, 25ton, 30ton five models.

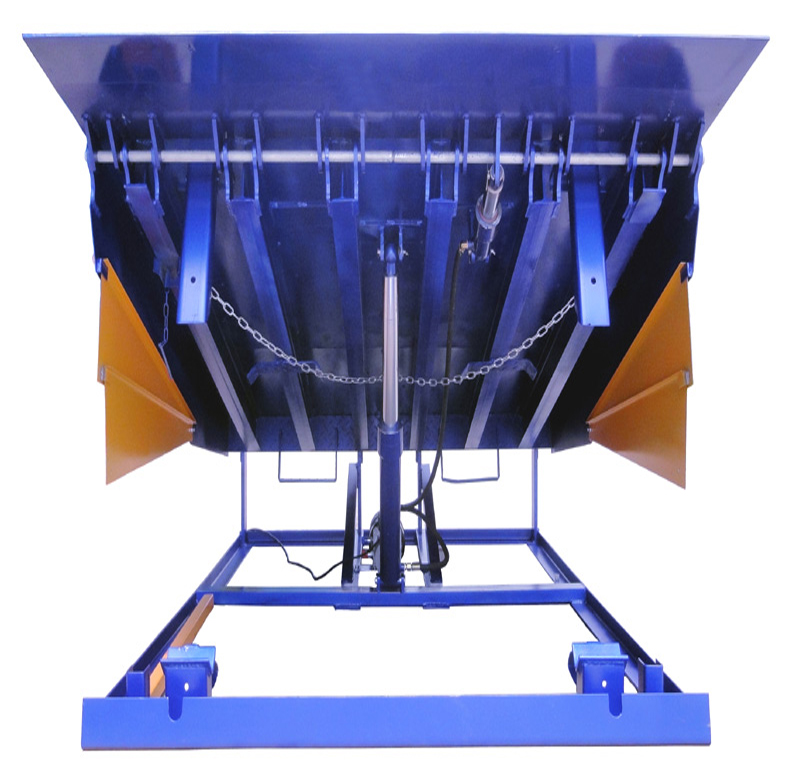

- "I"-beam reinforcement ribs design under the deck, which make our dock leveller much stronger than the common box-shape design.
- Downward adjustment can be either automatic design or pull-chain design.
- Can be either two big cylinder for deck lifting or one big cylinder for deck lifting.
- Lip thickness: 16mm, deck thickness: 8mm
- Totally sand-blasted and vanish-baked for maximum painting adherence.
Components
- Powerpack including motor, valve, pump are all from Italy
- Oil seal: Japanese "NOK" brand.
Warranty
- 5 years warranty for steel structure, 2 years warranty for hydraulic and electrical
- Spare parts can be provided free of charge for containerload order quantity.
Documentation and Certificate

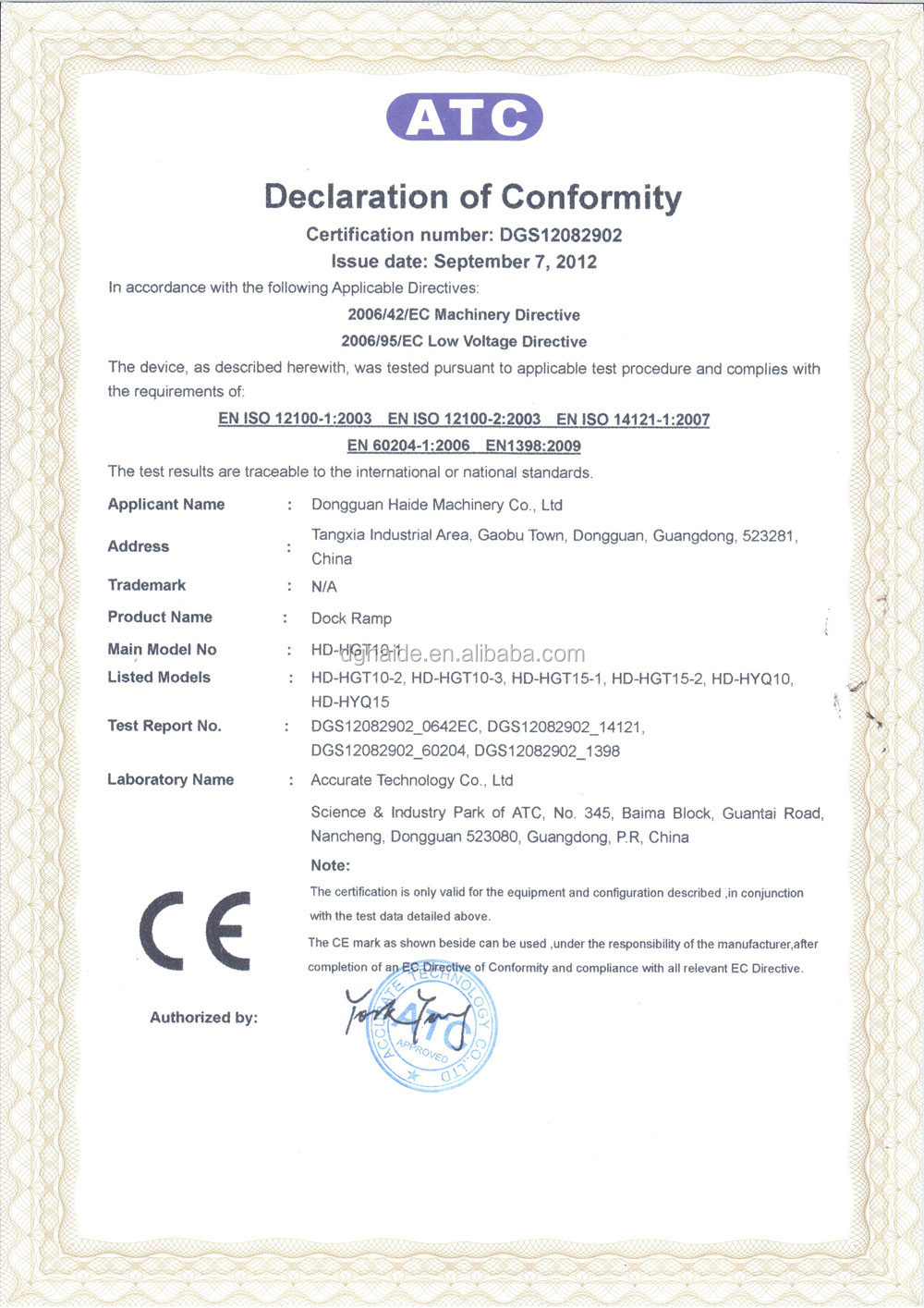

- CE certificate is available.
- Operation and maintenance manual in both soft copy and hard copy are available.
- Installation guide is available.

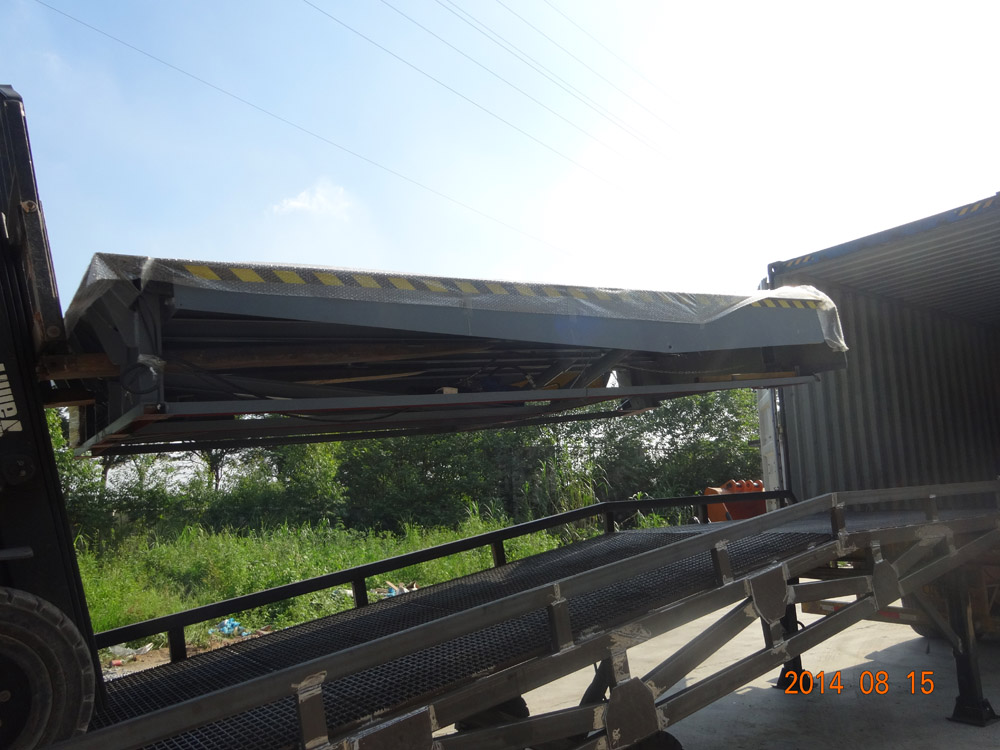

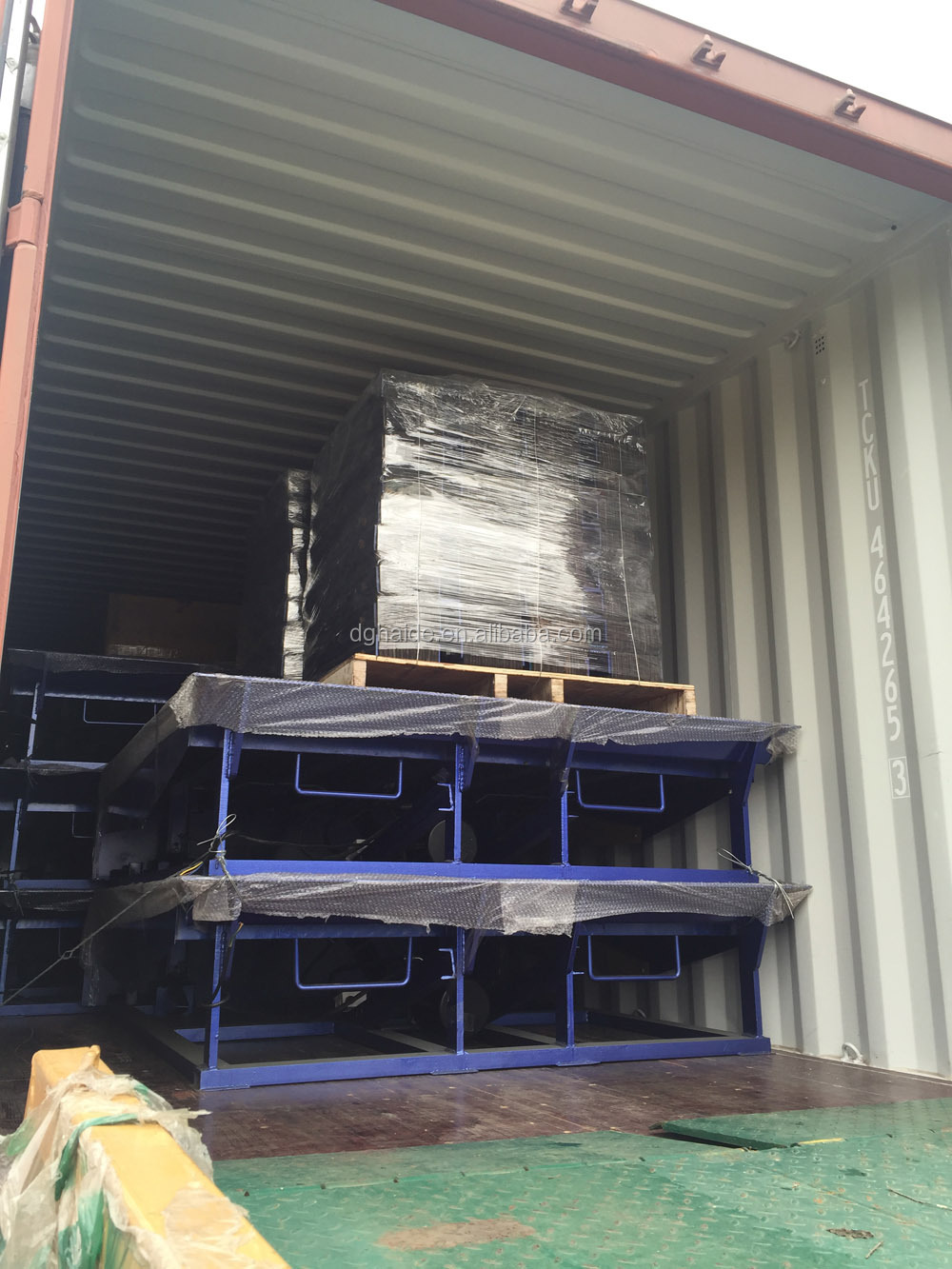

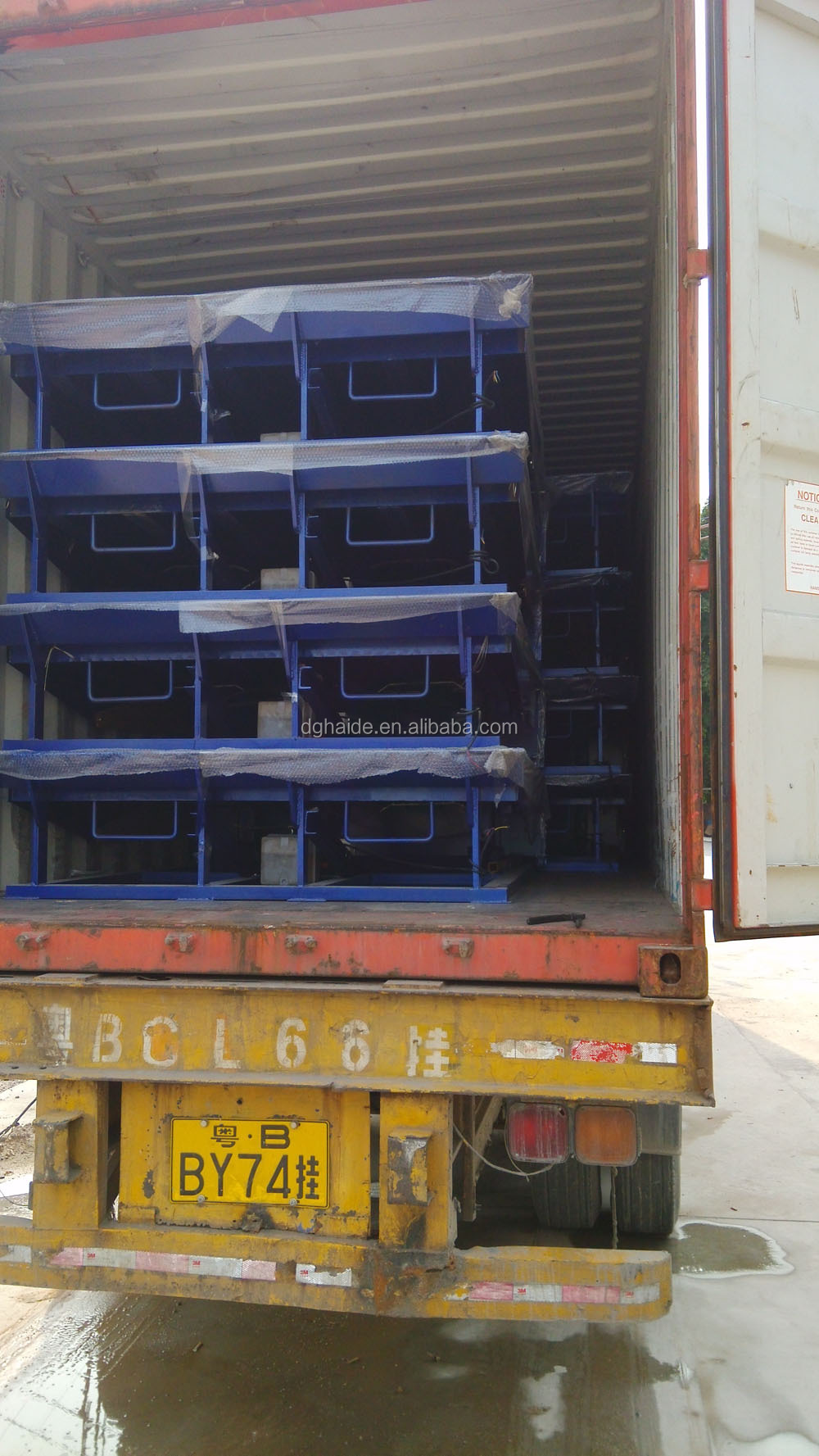

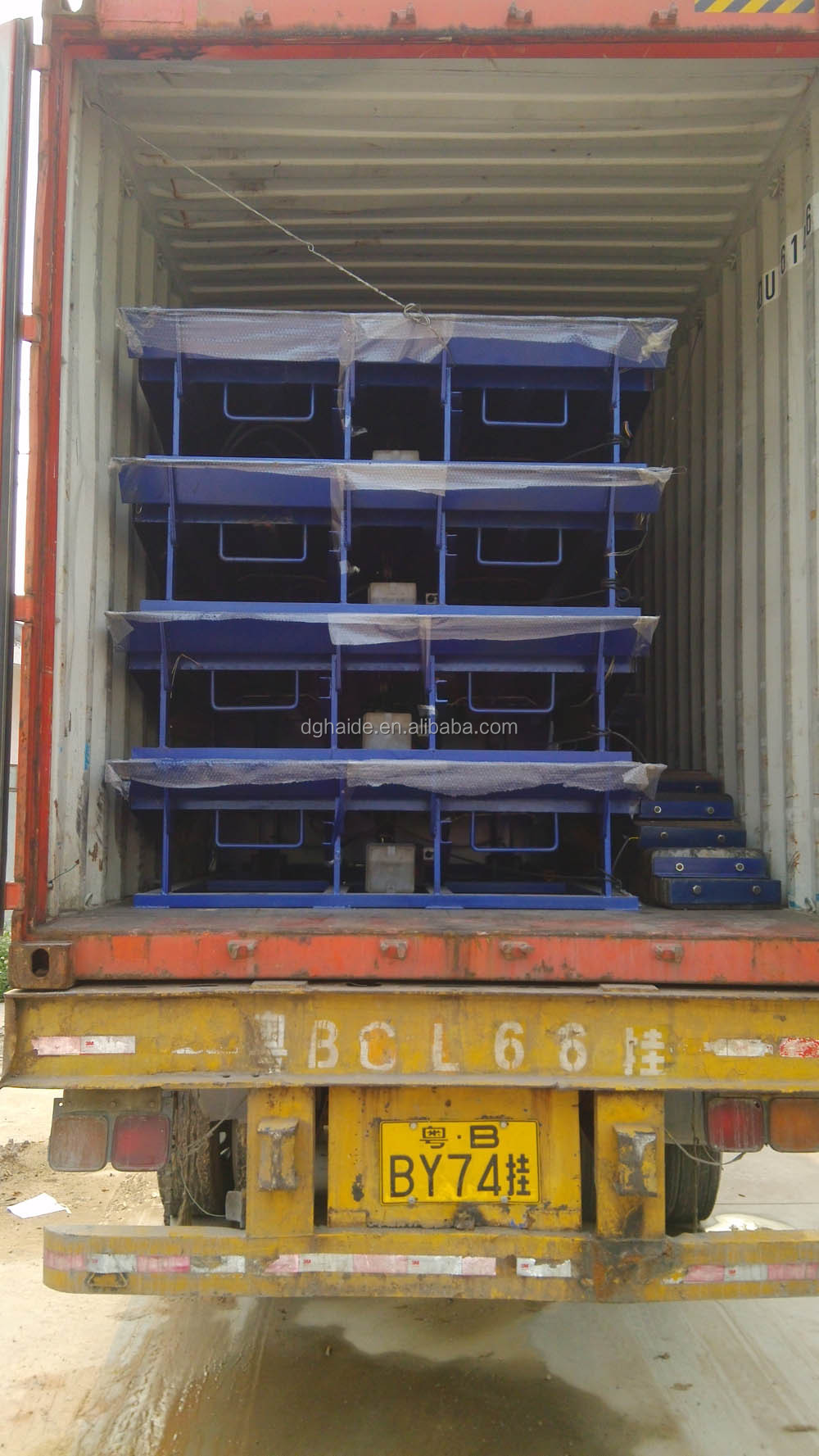

Packing and Shipment

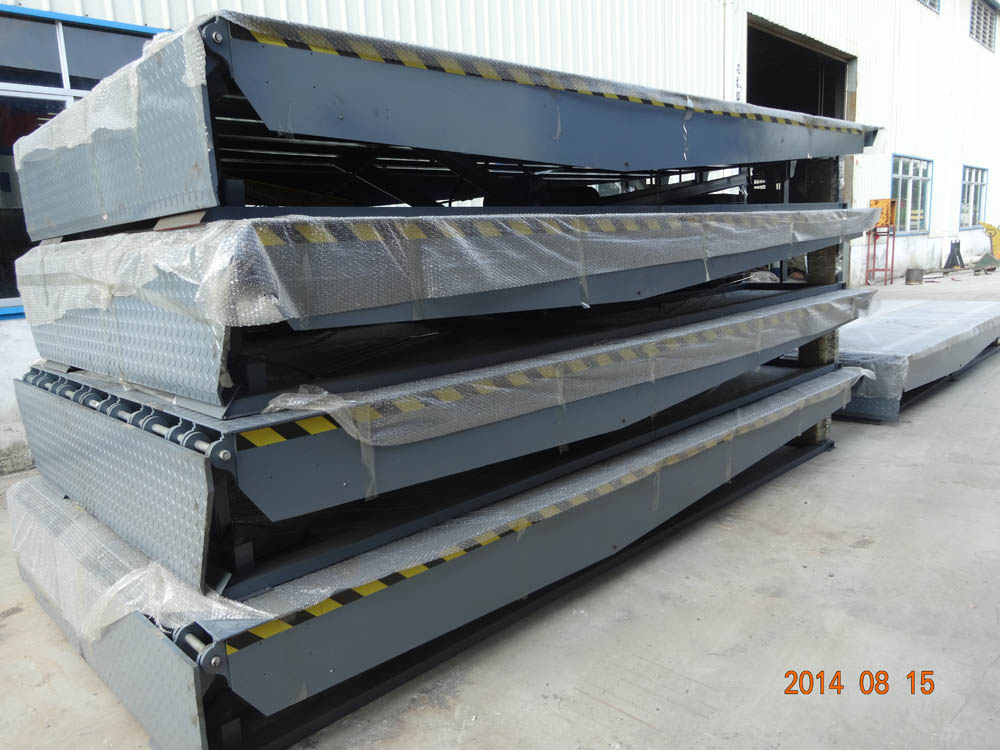

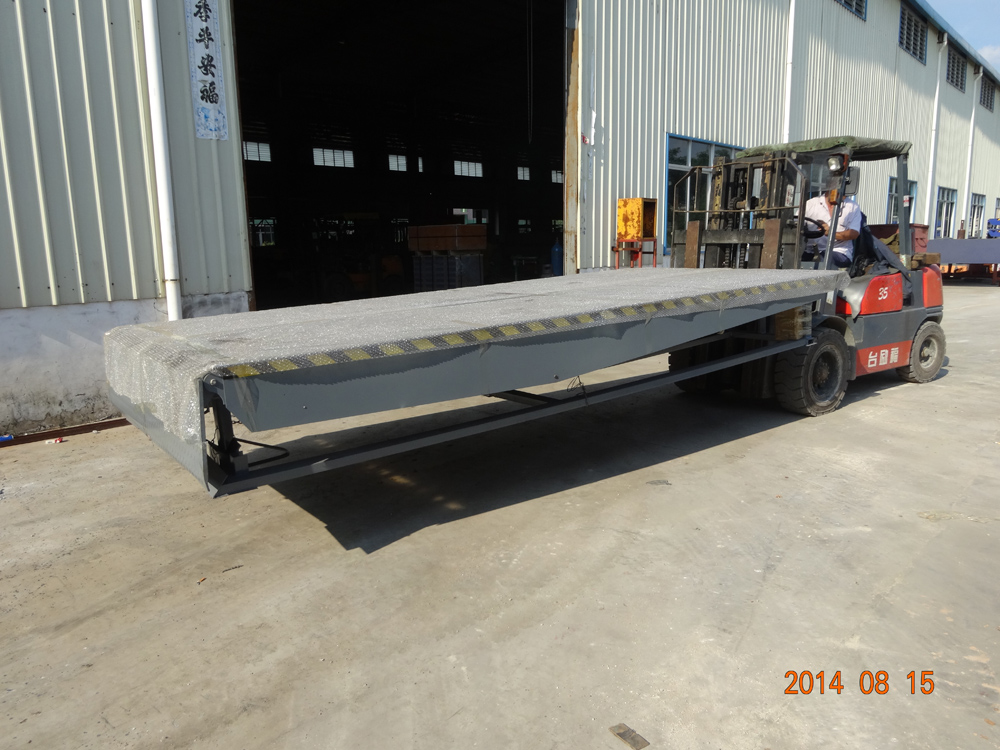

- Cushioned by cardboard for each corner and then wrapped by bubble bag on the top.
- Clad angle frame is optional for easy installation, but the price is different.
Standard Dimensions
| Model |
Dock leveler dimension (mm) |
Pit dimension(mm) |
Remark |
| 6’x6’ |
1830(W)x1680(L)x490(H) |
1870(W)x1670(L)x500(D) |
All dimensions including width, length, height and lip length can be customized according to customer’s demand. |
| 6’x8’ |
1830(W)x2290(L)x490(H) |
1870(W)x2280(L)x500(D) |
| 6’x10’ |
1830(W)x2899(L)x490(H) |
1870(W)x2889(L)x500(D) |
| 6.5’x6’ |
1980(W)x1680(L)x490(H) |
2020(W)x1670(L)x500(D) |
| 6.5’x8’ |
1980(W)x2290(L)x490(H) |
2020(W)x2280(L)x500(D) |
| 6.5’x10’ |
1980(W)x2899(L)x490(H) |
2020(W)x2889(L)x500(D) |
| 7’x6’ |
2130(W)x1680(L)x490(H) |
2170(W)x1670(L)x500(D) |
| 7’x8’ |
2130(W)x2290(L)x490(H) |
2170(W)x2280(L)x500(D) |
| 7’x10’ |
2130(W)x2899(L)x490(H) |
2170(W)x2889(L)x500(D) |
Frequently Asked Questions (FAQ)
Q1: What are the available load capacities for your dock levellers?
We offer five standard capacity models: 10 ton, 15 ton, 20 ton, 25 ton, and 30 ton to meet various industrial needs.
Q2: What makes your dock leveller structure more durable?
Our design utilizes "I"-beam reinforcement ribs under the deck, which provides superior strength compared to the common box-shape designs found in the market.
Q3: Where are the key hydraulic components sourced from?
To ensure high reliability, the powerpack (motor, valve, and pump) is sourced from Italy, and the oil seals are from the renowned Japanese "NOK" brand.
Q4: What is the warranty policy for the loading bay equipment?
We provide a comprehensive 5-year warranty for the steel structure and a 2-year warranty for all hydraulic and electrical components.
Q5: Can the dimensions be customized to fit specific pit sizes?
Yes, all dimensions including width, length, height, and lip length can be fully customized according to the customer's specific site requirements.
Q6: Are there any certifications for safety and quality standards?
Yes, our dock levellers are CE certified. We also provide full operation, maintenance manuals, and installation guides with every order.
