| Specification Detail | |
|---|---|
| Upper Plate | 8 mm thickness, anti-skate steel plate |
| Swinging Lip | Single 10mm thickness, 400mm length |
| Size | 1830mm * 660mm |
| Working Range | - 100mm to + 150mm |
| Loading Capacity | 3T / 6T |
| Moving Time | 5S |
| Operating Temperature | -30 ℃ ~ + 50 ℃ |
| Color | Blue/Grey/Black/Green, could be customized |
| Noise | < 50db (±5db) |

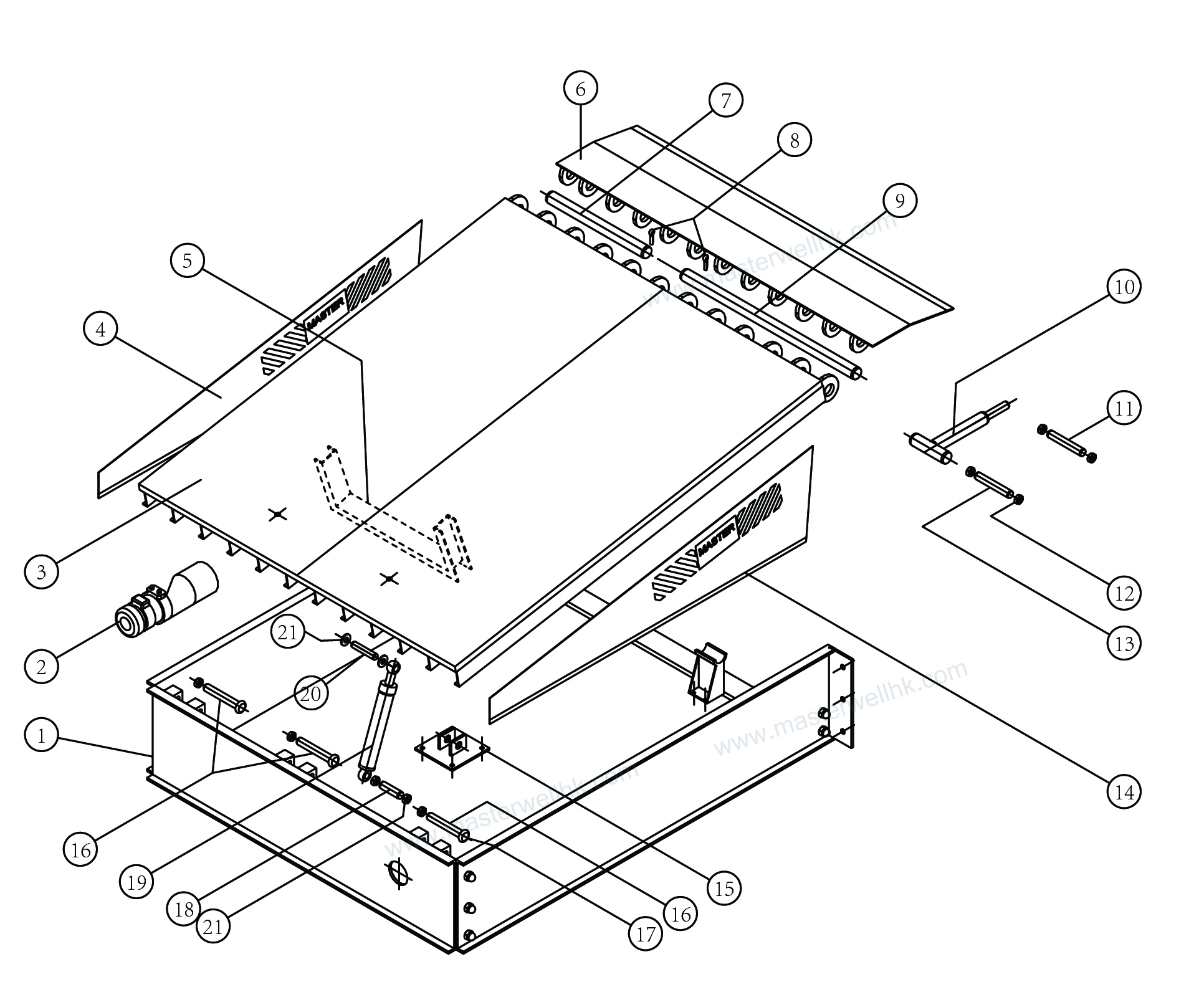

| 1. Mould | 12. Seeger straight pins of the lip |
| 2. Hydraulic control unit | 13. Straight Pin body of the body |
| 3. Upper plate | 14. Right foot guard |
| 4. Left foot guard | 15. Flange fixing - upper plate cylinder |
| 5. Control unit support | 16. Upper plate rotation pivot |
| 6. Swinging lip | 17. Seeger upper plate rotation pivot |
| 7. Left short shaft | 18. Straight Pin body of the upper plate |
| 8. Shaft fixing pins | 19. Upper plate cylinder |
| 9. Right long shaft | 20. Upper plate cylinder shaft pin |
| 10. Cylinder of the lip | 21. Seeger upper plate cylinder pins |
| 11. Pin of the lip cylinder rod |
| Component | Description |
|---|---|
| Swinging Lip | Lip is a very important part connecting the truck and dock leveler. We use steel material from Baosteel with a single plate 16mm thickness, which offers superior strength compared to standard Chinese double welding plates. |
| Hinge Connection | The hinge and hinge sleeve are connected with the motherboard via keel welding. The surface of the connecting shaft hinge is electroplated to ensure smooth operation and noise reduction. |
| Support Profile | We use 11 pieces of L profile support. Compared to other suppliers who use 3-4 pieces, our design ensures significantly higher durability and quality. |
| Hydraulic Unit | The hydraulic pump is integrated with the oil tank to save space and simplify maintenance. |
| Security Block | In case of accidental moving of the truck, the dock leveller will be blocked with a short stroke (according to the applied weight). |
| Control Box | IP65-rated control box featuring a monitor screen that displays usage cycles and DTCs (Diagnostic Trouble Codes), with a split control system. |
