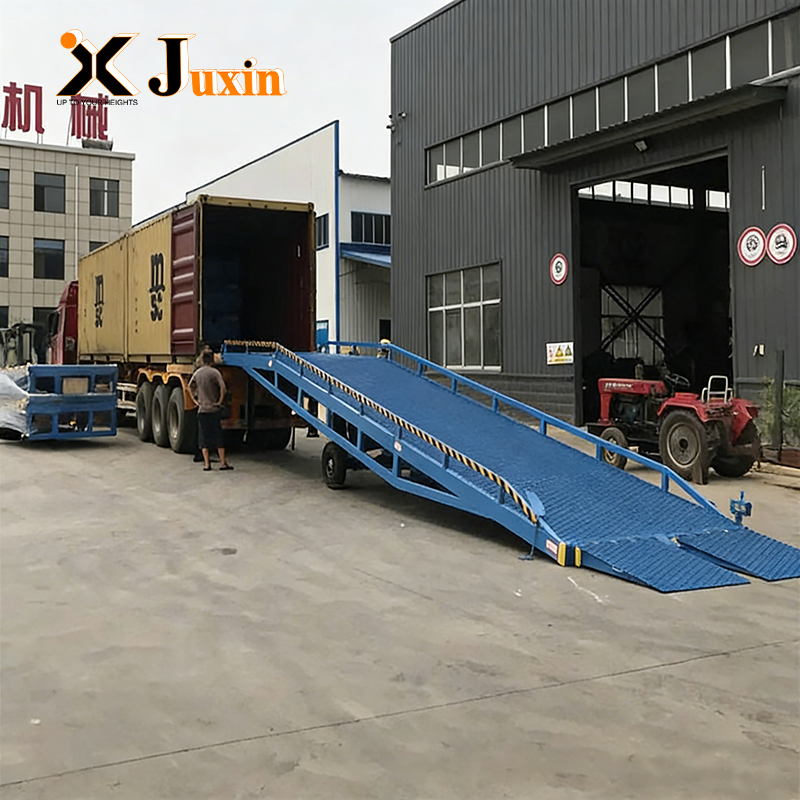

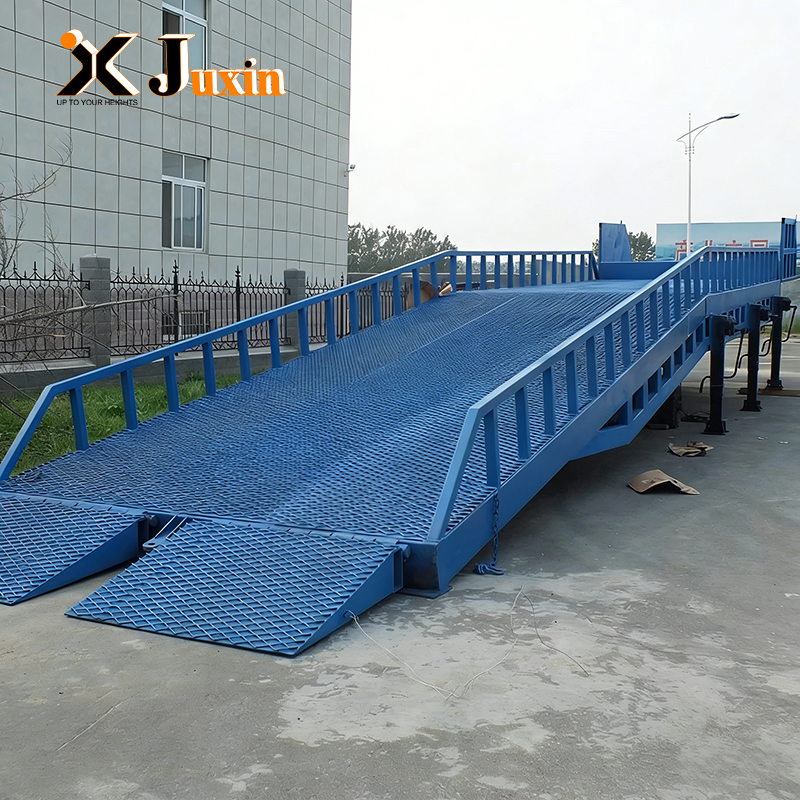

CE ISO Dual Approved 6-15T Heavy Duty Mobile Loading Ramp Hydraulic Dock Equipment
CE ISO Dual Approved 6-15T Heavy Duty Mobile Loading Ramp Hydraulic Dock Equipment
CE ISO Dual Approved 6-15T Heavy Duty Mobile Loading Ramp Hydraulic Dock Equipment
CE ISO Dual Approved 6-15T Heavy Duty Mobile Loading Ramp Hydraulic Dock Equipment
CE ISO Dual Approved 6-15T Heavy Duty Mobile Loading Ramp Hydraulic Dock Equipment
1 / 5
CE ISO Dual Approved 6-15T Heavy Duty Mobile Loading Ramp Hydraulic Dock Equipment
CE ISO Dual Approved 6-15T Heavy Duty Mobile Loading Ramp Hydraulic Dock Equipment
CE ISO Dual Approved 6-15T Heavy Duty Mobile Loading Ramp Hydraulic Dock Equipment
CE ISO Dual Approved 6-15T Heavy Duty Mobile Loading Ramp Hydraulic Dock Equipment
CE ISO Dual Approved 6-15T Heavy Duty Mobile Loading Ramp Hydraulic Dock Equipment

CE ISO Dual Approved 6-15T Heavy Duty Mobile Loading Ramp Hydraulic Dock Equipment

Send Inquiry

Product Description

10 Ton Hydraulic Mobile Container Loading Dock Lift Ramp for Forklift

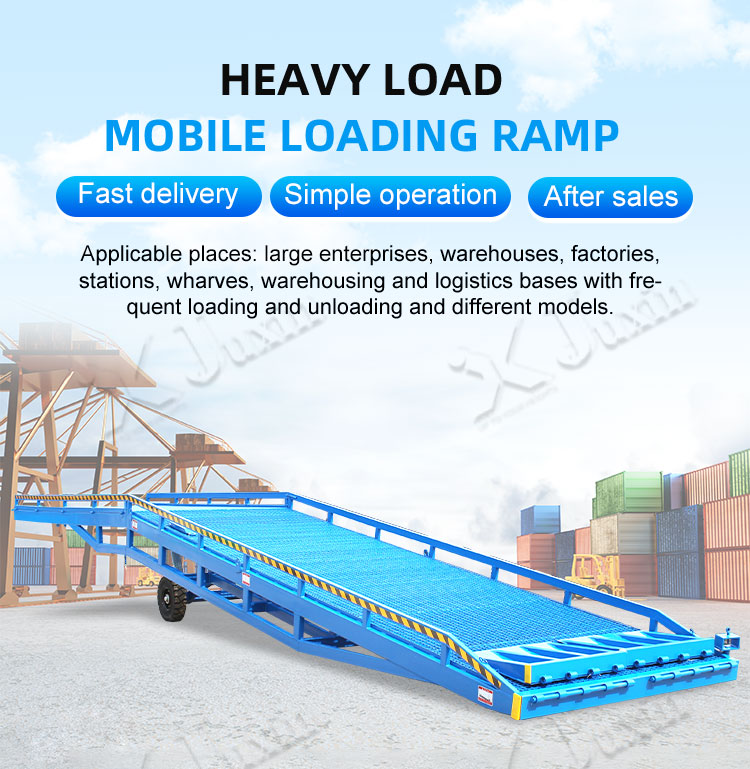

Mobile Loading Dock Lift Ramp

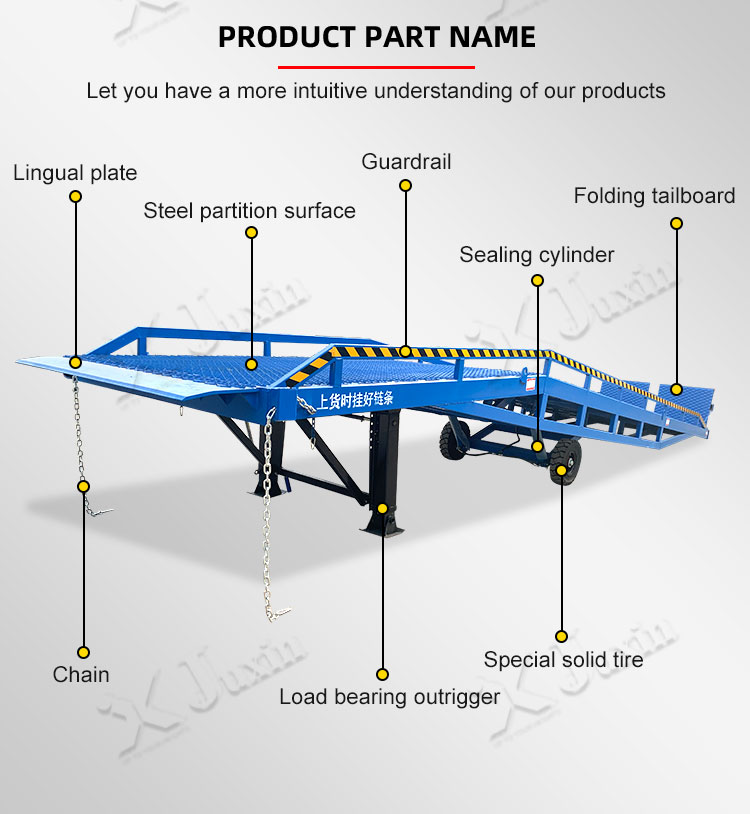

Products Description

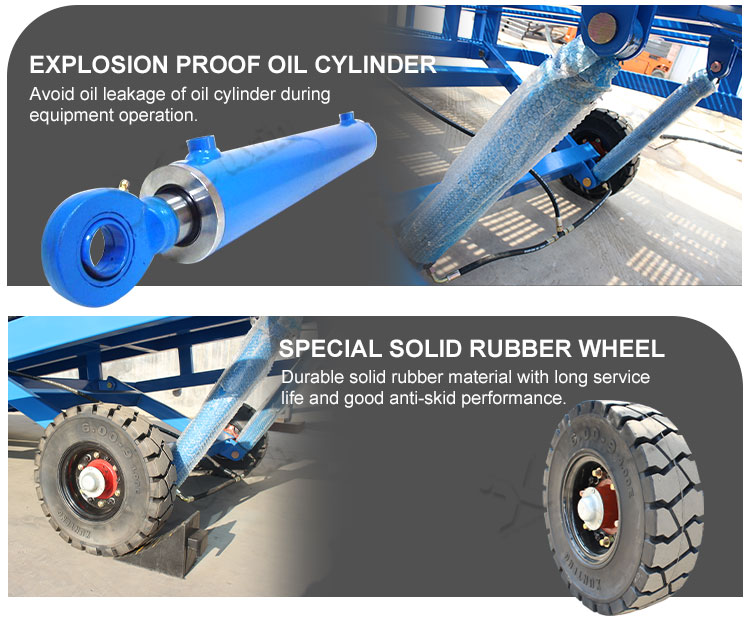

1. Heavy-duty mobile tyre Mobile wheels adopt solid tyres, no need for inflation, durable, and cooperate with brake pads to guarantee operation safety.
2. Adjustable height supporting legs Prevents forklift weight from concentrating on the vehicle tail, which could cause overturning. Fully ensures operation safety. Suitable for various vehicle heights.
3. Manual hydraulic elevator system Equipped with a handle hydraulic device to adjust working height directly, requiring no electricity.

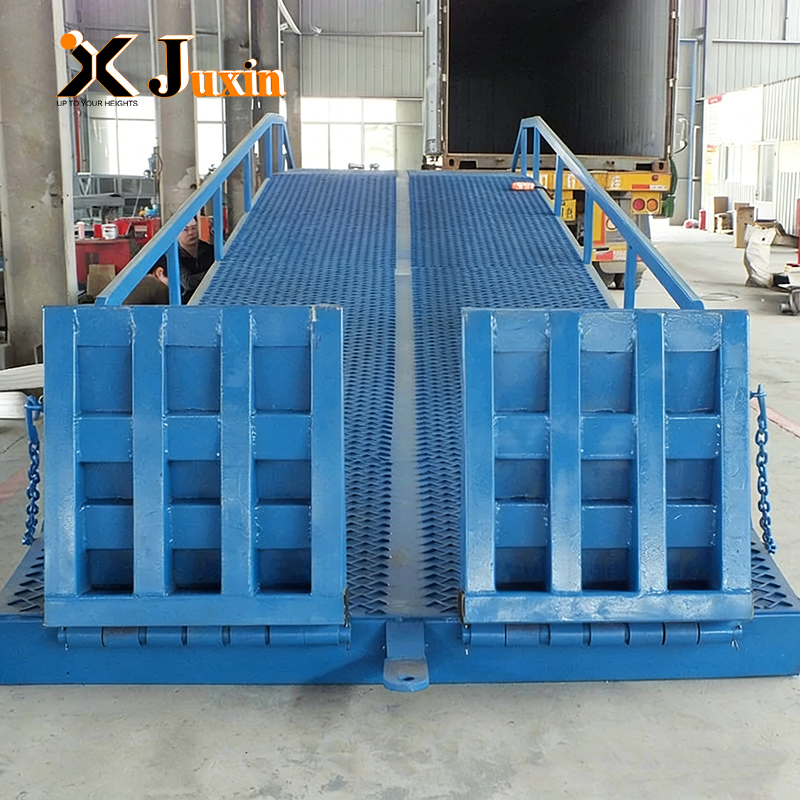

4. Fold-down transition board The tail and transition plate with folding hooks allow for convenient mobile climbing.
5. Adjustable length Hinge Chains hook to vehicles, ensuring the ramp and vehicle stay closely connected during operation.
6. Bridge body structure High-strength manganese steel body providing superior bearing capacity and structural integrity.
7. Antiskid steel nets Adopting a special rhombic grid plate ensures excellent slip resistance for forklifts, even in rain or snow.
Ramp Detail 1
Ramp Detail 2
Specification
Model Load (t) Overall Size (mm) Solid Tire Cylinder Adjustable Range Weight (kg)
DCQY6-1.8 6 11150*2100*1100 600-9 Φ80*2 1100-1800mm 2450
DCQY8-1.8 8 11150*2100*1100 600-9 Φ80*2 1100-1800mm 2650
DCQY10-1.8 10 11150*2100*1100 600-9 Φ80*2 1100-1800mm 2850
DCQY12-1.8 12 11150*2100*1100 700-9 Φ80*2 1100-1800mm 3600
DCQY15-1.8 15 11150*2100*1100 700-9 Φ80*2 1100-1800mm 4500
Except our normal models, the platform size, loading capacity, colour, travel height, power source etc. can be customized according to your request.
Details & Production

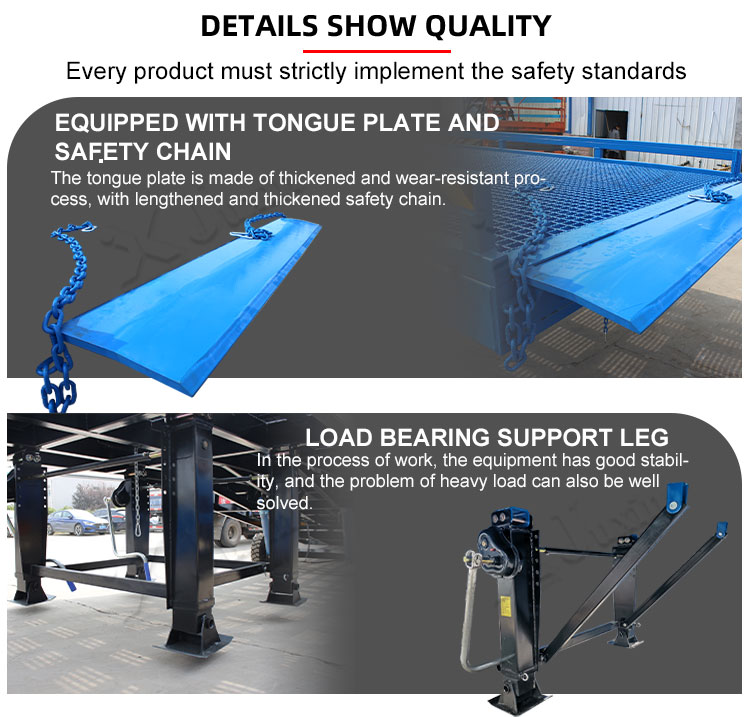

Detail Image 1
Detail Image 2

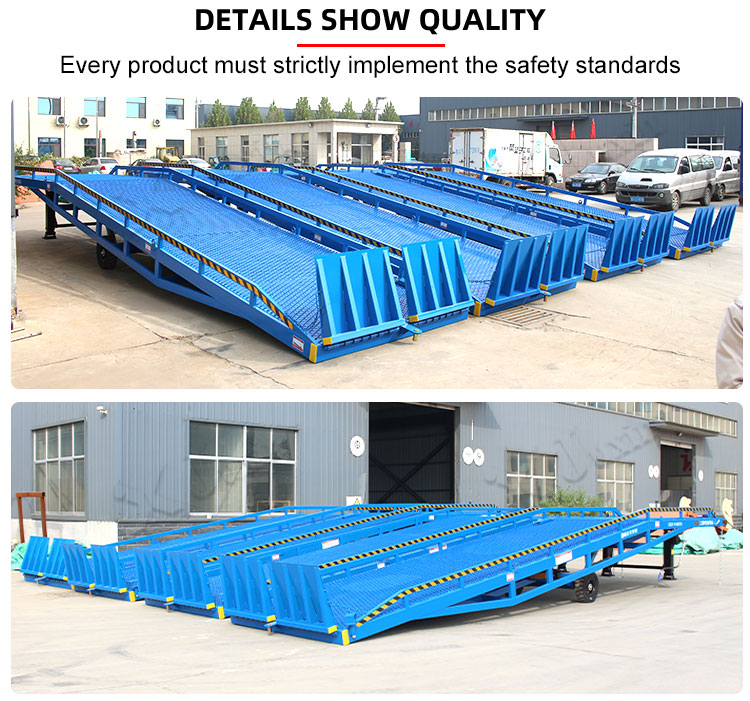

Detail Image 3

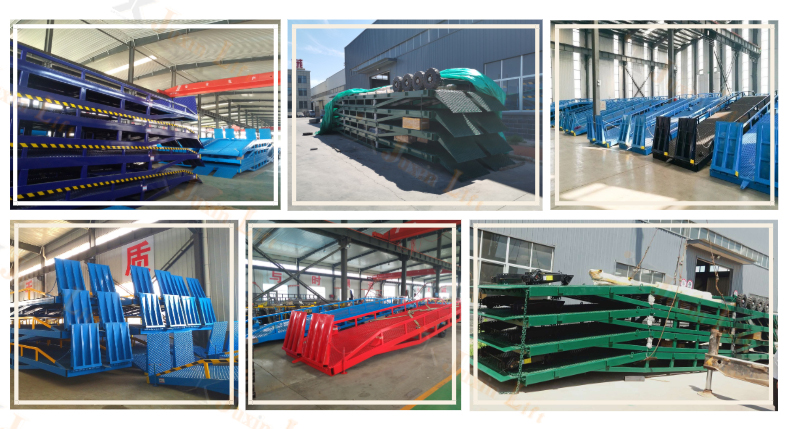

Production Flow & Application

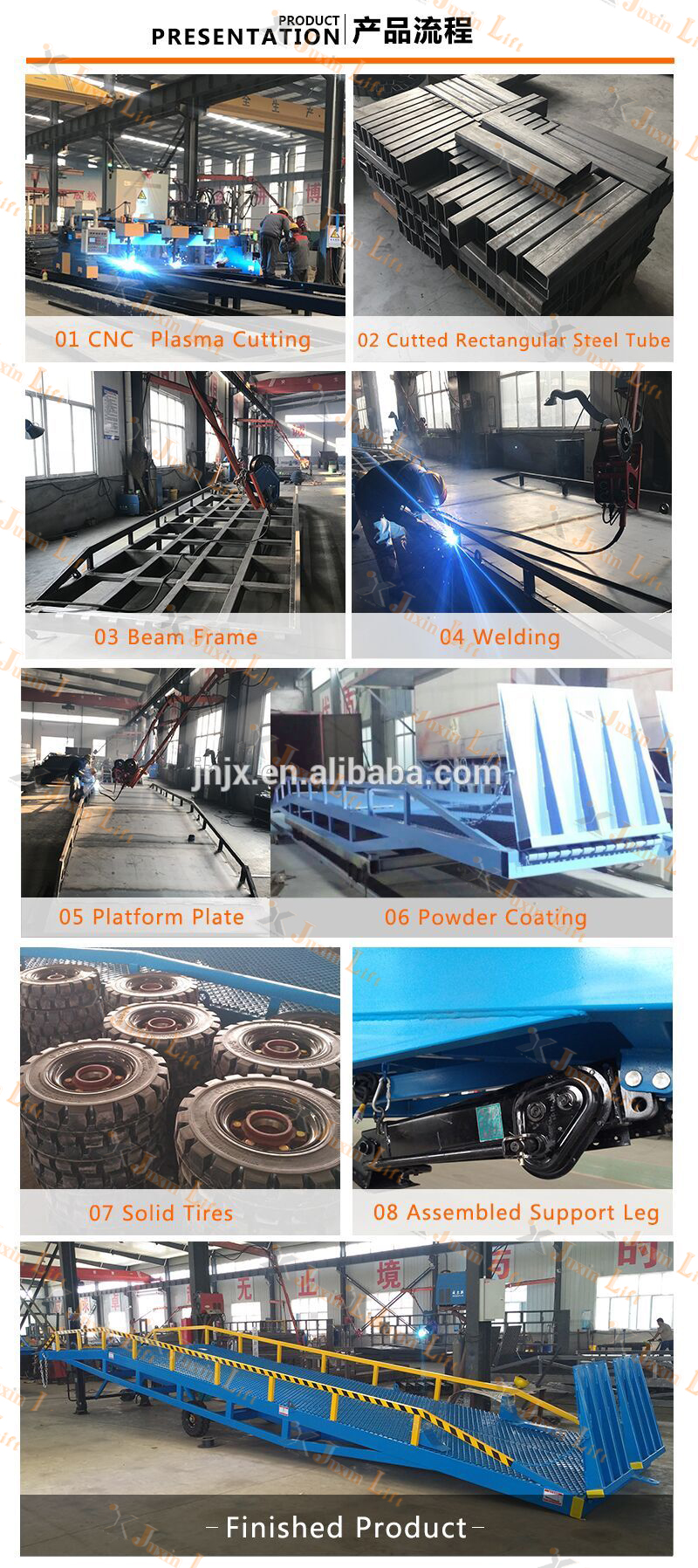

Flow 1
Flow 2

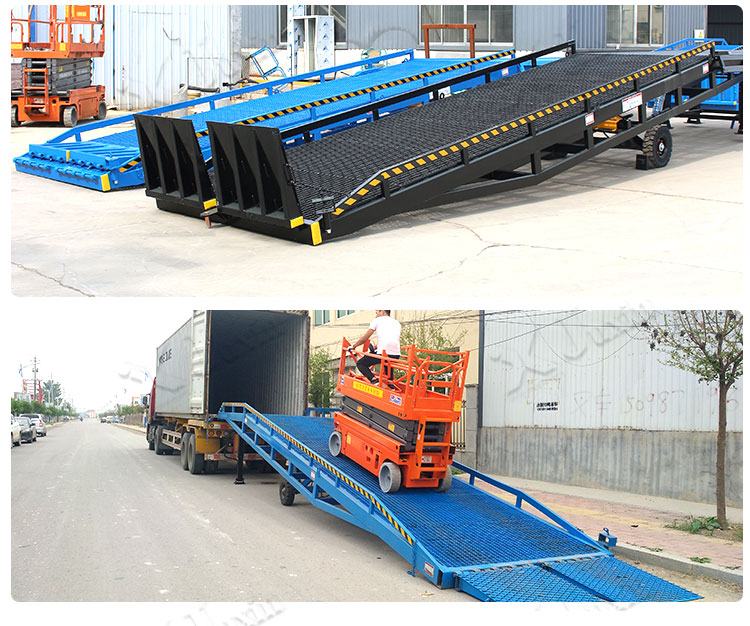

Application View
Company Profile
Our company was established in 2008 and is a leading manufacturer of lifting platforms. We are recognized as one of the top ten famous enterprises in the industry for lifting platforms and parking systems. Adhering to the "honest innovation, cooperation, and win-win" business philosophy, we focus on the research and development of hydraulic lifting products. Our products are backed by quality liability insurance and are sold globally.

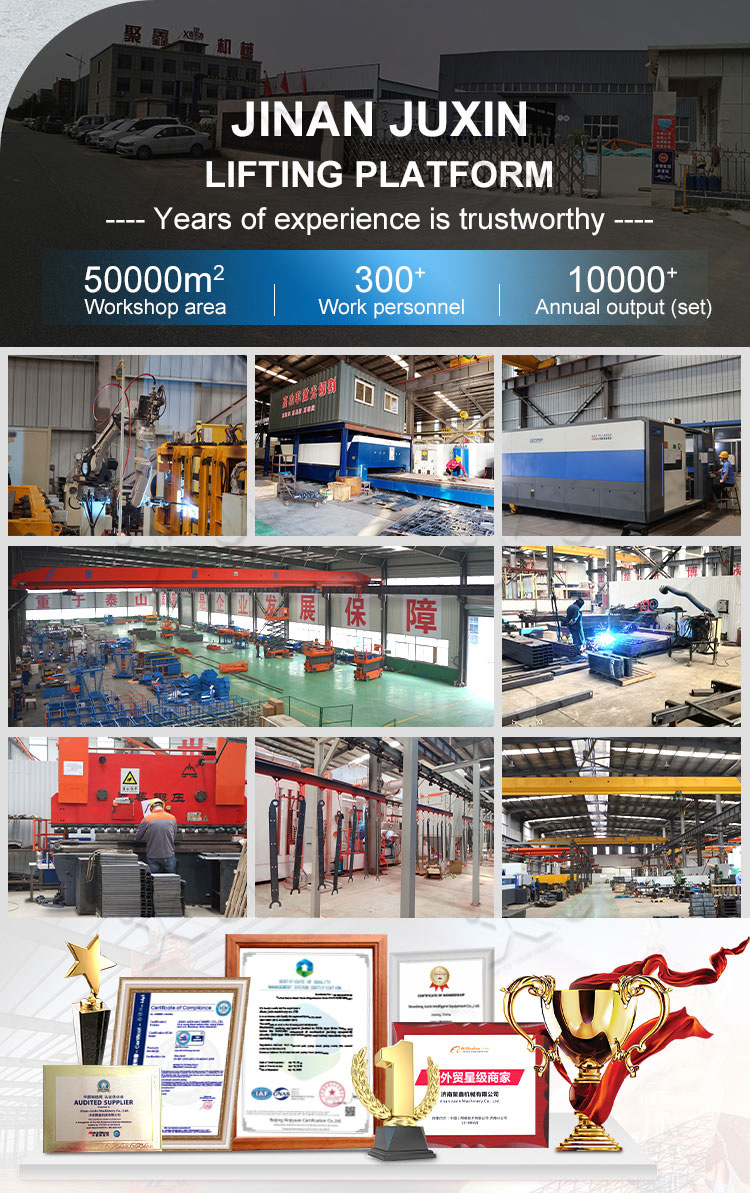

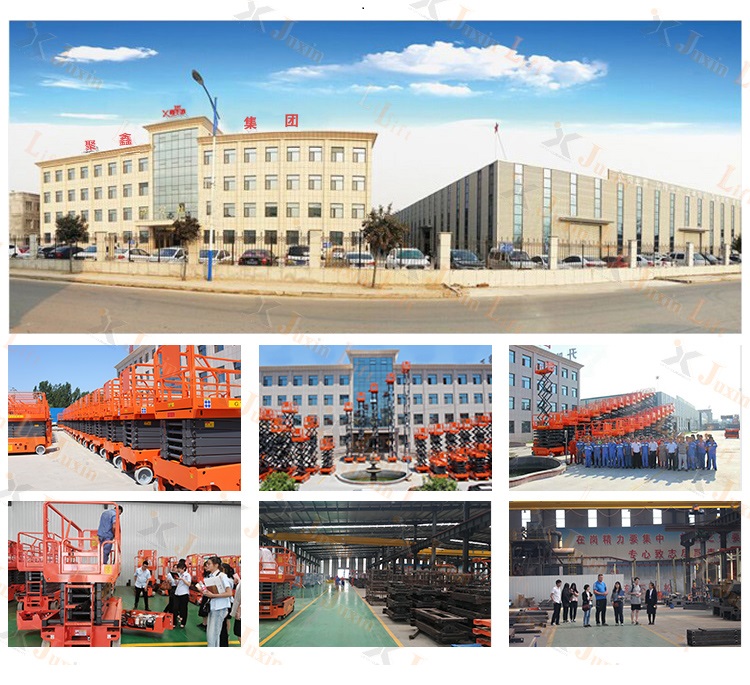

Factory Overview
Company Strength
We possess automated cutting equipment, automatic welding robots, shot blasting lines, and modern coating lines. Our hydraulic power units have reached international advanced levels. We offer eight series with more than 90 varieties, including mobile and fixed lifting platforms, dock ramps, and parking systems, widely used in industrial installation, warehouse maintenance, aviation, and railway stations.
Strength 1
Strength 2
Why Choose Us
  • ✓ 15 years lift platform factory experience
  • ✓ Experienced export team for global logistics
  • ✓ Global R&D platform for innovation
  • ✓ World-famous brand spare parts used in construction
  • ✓ Systems installed in over 30 countries
  • ✓ Reliable after-sale service support
Certificates
Frequently Asked Questions
What is the standard delivery time?
Orders are typically delivered within 7 to 15 working days after receiving the order.
What payment terms do you accept?
We accept T/T, Western Union, PayPal, and other major payment methods. Please contact us for details.
What is the Minimum Order Quantity (MOQ)?
The MOQ is generally 1 set, though this may vary depending on the specific product model.
Can the loading ramp be customized?
Yes, our lifts and ramps can be custom-made. We accept special orders for dimensions, capacity, and power sources.
What about after-sales service?
We provide comprehensive after-sales service and support for all our lifting equipment globally.
Does the ramp require electricity to operate?
The mobile dock ramp is equipped with a manual hydraulic system, allowing it to be operated easily without electricity.

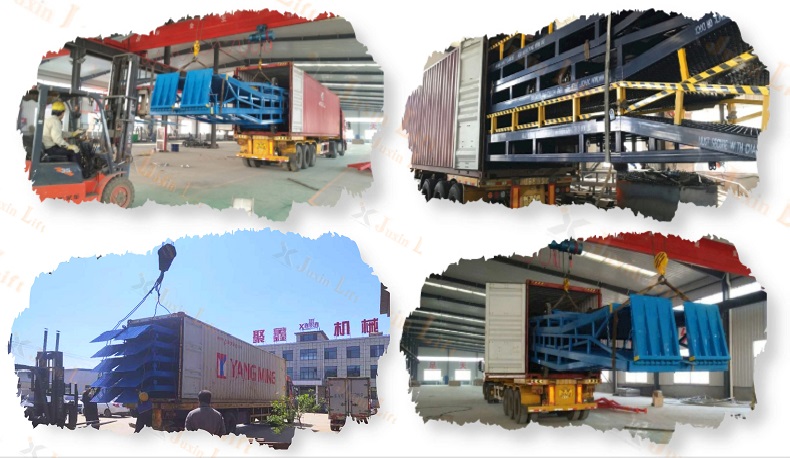

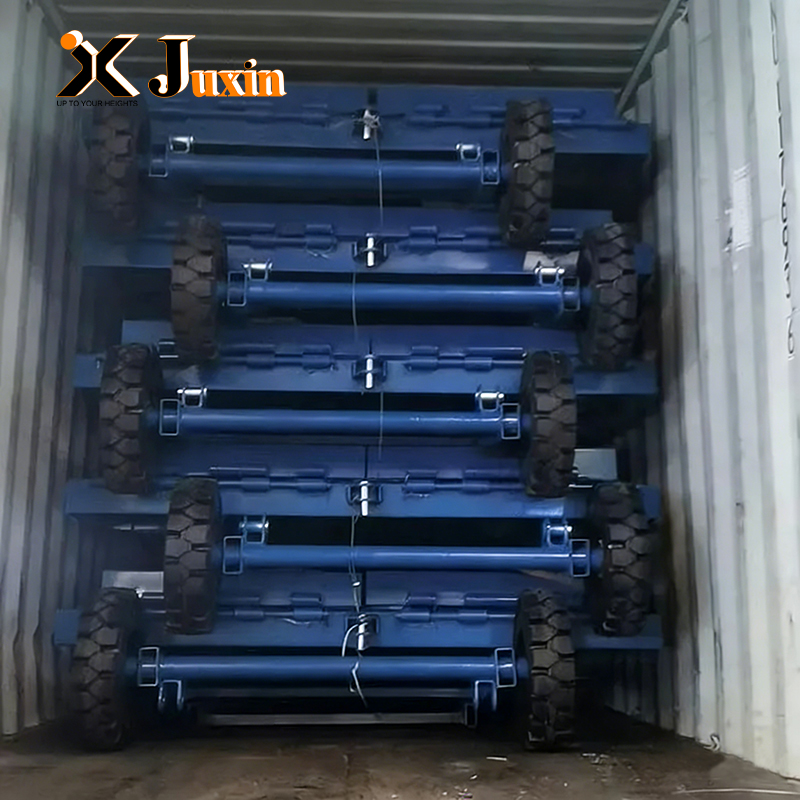

Packing and Delivery
