| Product Name | Aluminum garage door |
| Model Number | GRG-40 |

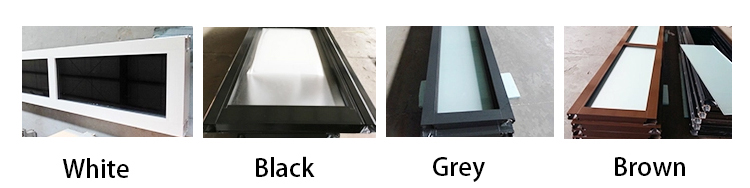

| Size & Design & Color | Customized |
| Door Material | Aluminum alloy with glass / PC board |
| Aluminum type | 1.4/2.5mm thickness in powder coated or anodized |

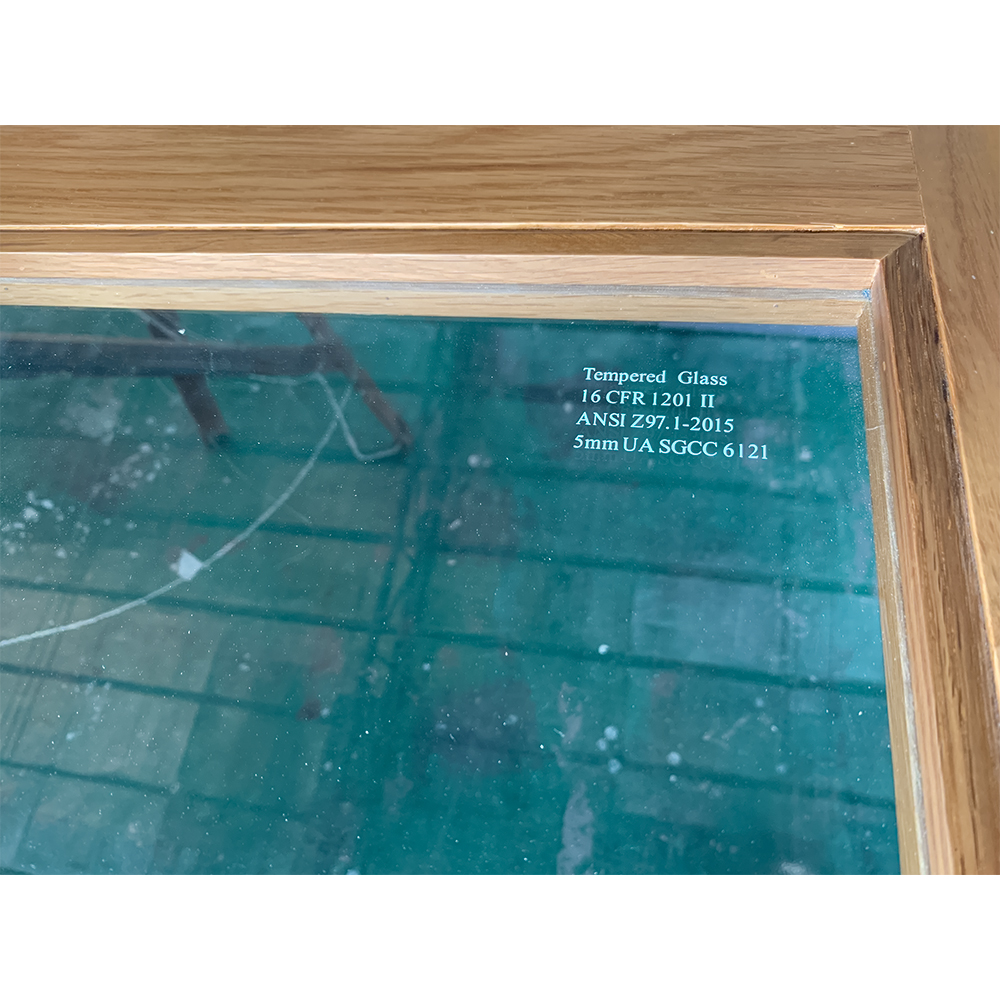

| Glass Specification | 1. Single toughened glazing: 4mm 2. Double toughened glazing: 4+9A+4/5+6A+5 |
| Glass Type | Frosted glass, clear glass, low-e glass, art glass, crystal glass, tinted glass etc. |
| Door Leaf Thickness | 40mm |
| Open Style | Automatic & manual |
| Hardware | China or Germany brand (galvanized steel or stainless steel) |
| Open Motor Tension | 600N/800N/1000N/1200N base on different door size |
| Pedestrian doors | Yes, as your request |
| Package | 1. Protective tape protecting frames from scratches; 2. Tie up products on the iron pallets with plastic belts; 3. Fill in the space between each two iron pallets by air bags; 4. Tie up iron pallets in container with plastic belts. |
| Delivery | 25-30 day after confirm the shop drawing |

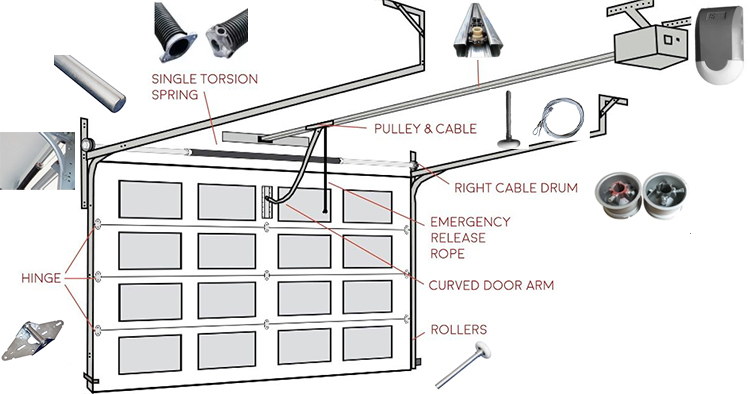

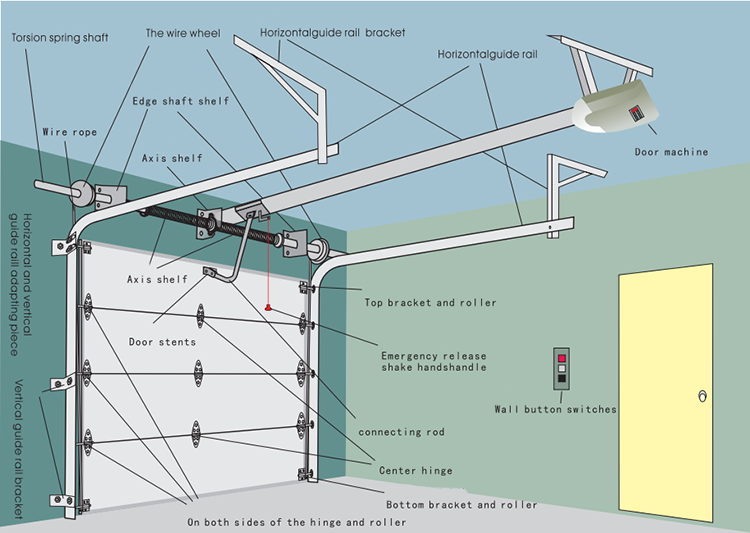

Below is the door structure, kindly check.

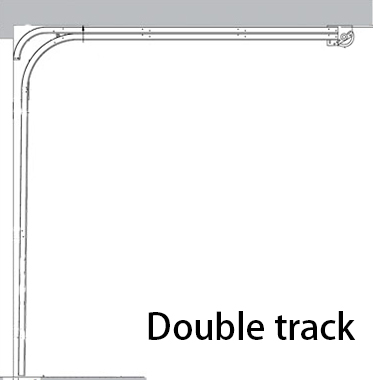

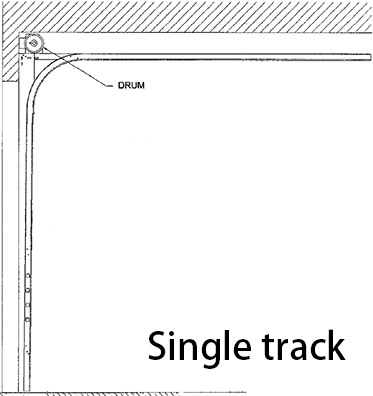

Left: Single track | Right: Double track

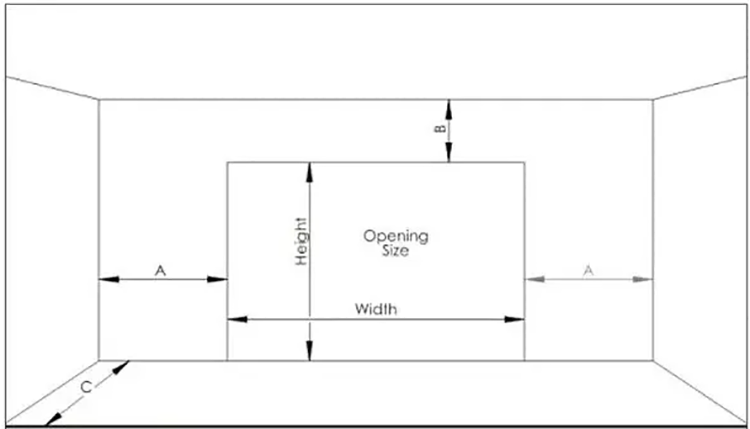

Width: width of opening (distance from left edge to right edge of opening).
Height: height of opening (distance from floor to opening top).
B - Lintel: distance from opening top to ceiling, minimum 150mm.
A - Lateral Distance: distance from opening edge to lateral interior wall, minimum 130mm.
C - Garage Depth: distance from opening to interior garage wall, should be more than height + 500mm.
Note: If the garage door is installed inside, the door leaf size will be: Width = RO + 80mm, Height = RO + 50mm.
