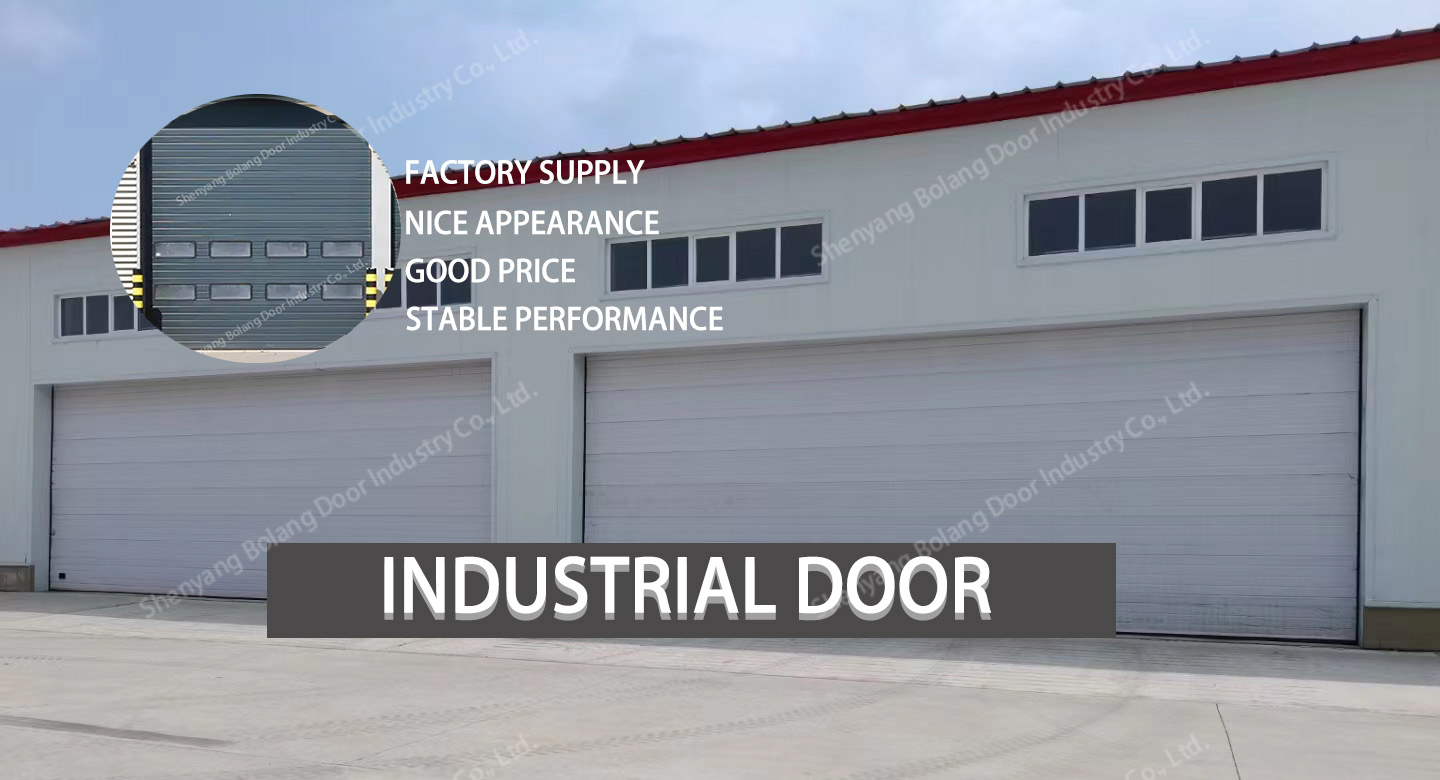

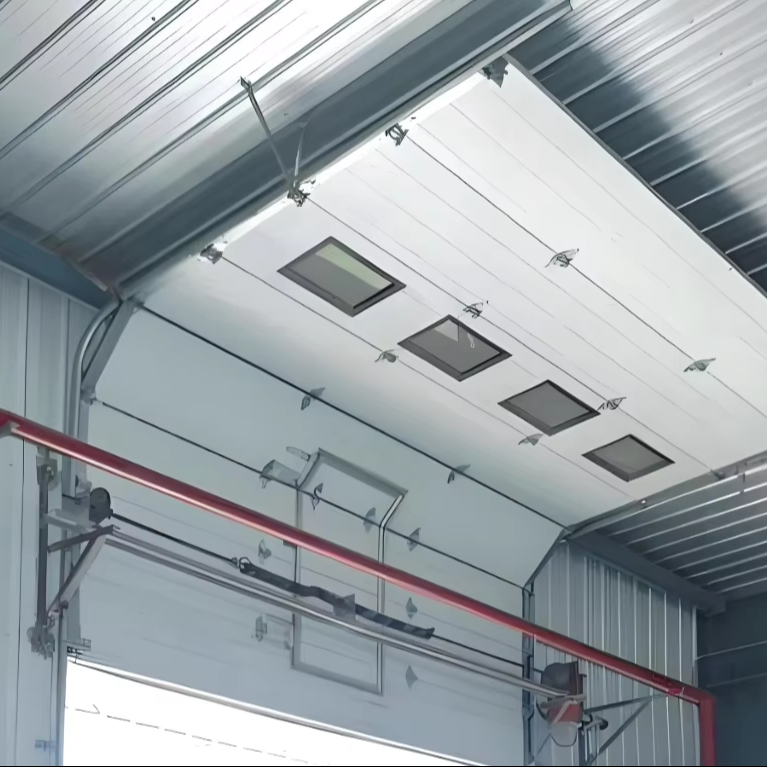

| Product Name | Sectional industrial door |
| Color | White or customized |
| Material | Aluminum plate and PU foam insulation |
| Rail track | Double or single track |
| Application | Industrial buildings, warehouses and so on |
| Package | Plastic foam, Paper box, Strong carton and Wood box |

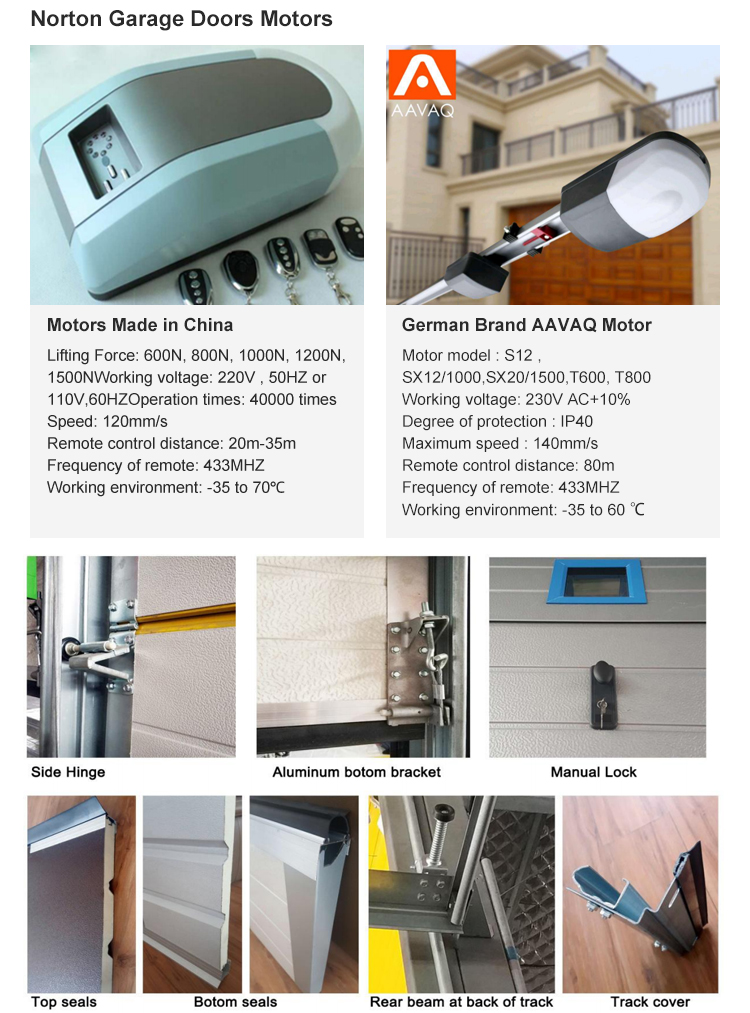

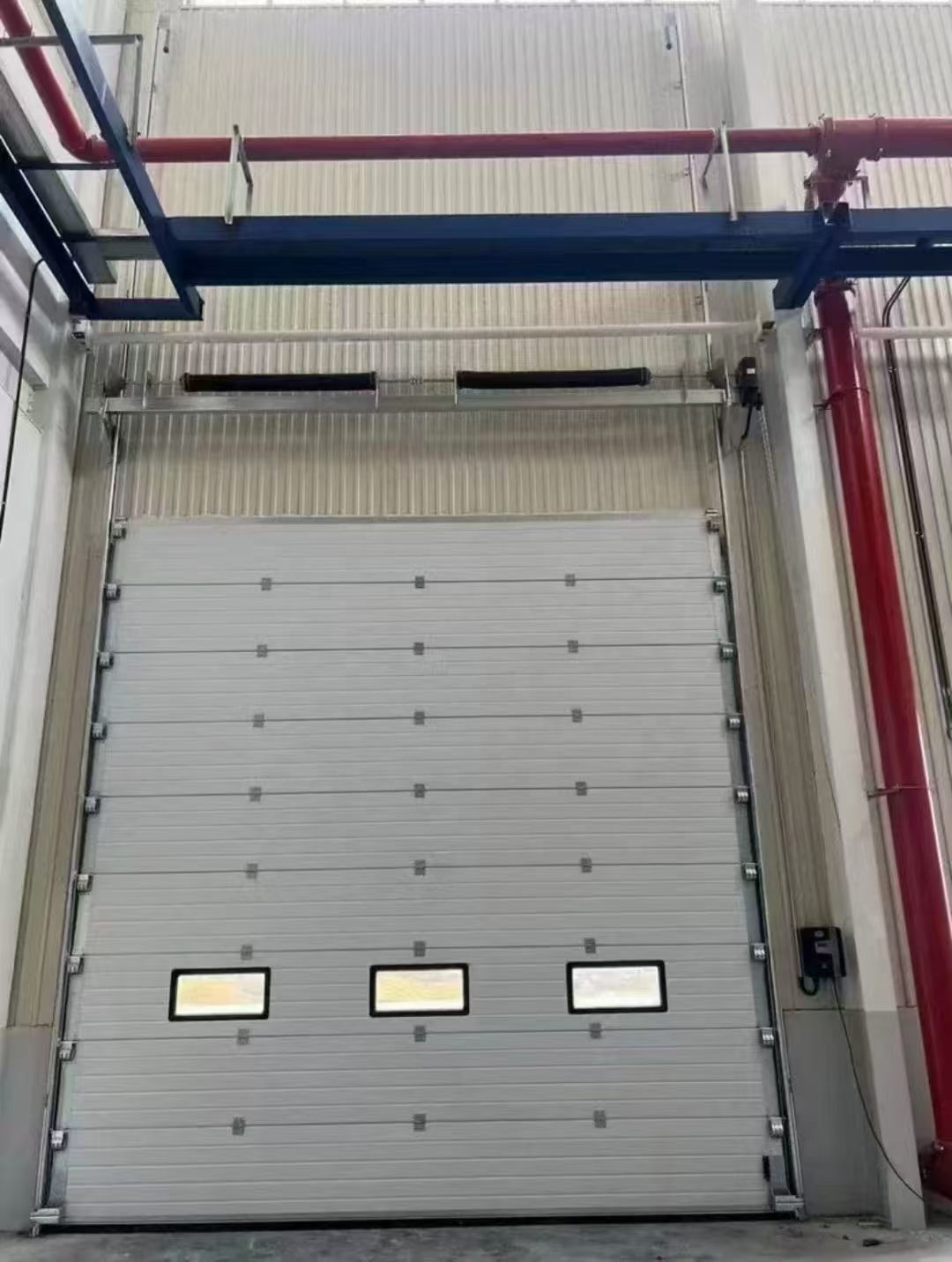

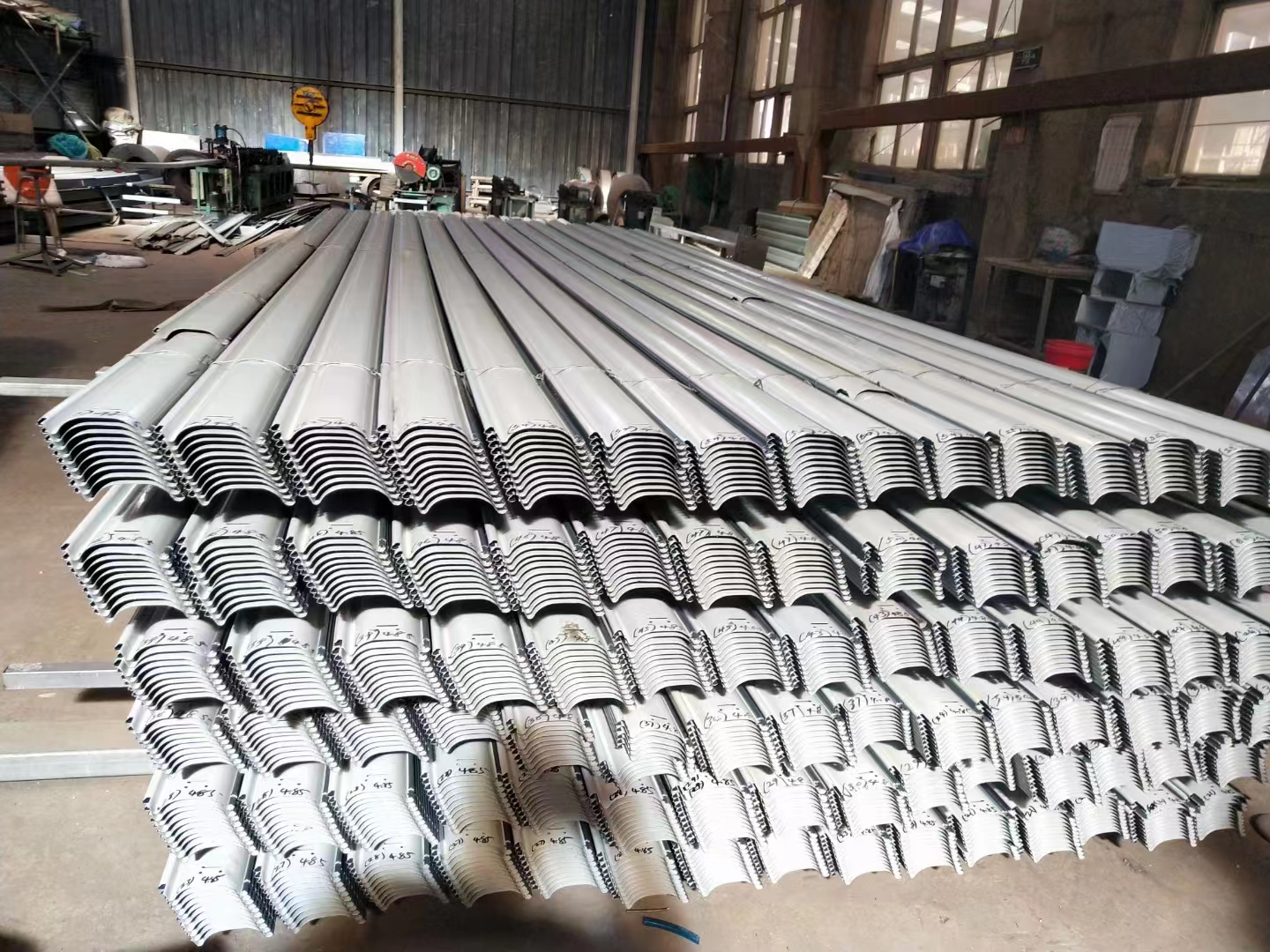

The doors are designed advanced and cost-effective. The door panels are made of high quality painted steel or aluminum alloy plate and insulated by environment friendly polyurethane foam. We have white, silver, gray, dark gray, red, blue and many other colors to choose from. The thickness of the door panel is 40mm, 50mm, 40/70mm optional. The door is equipped industrial motor, with soft start and close function, and quiet operation.
| Slat Option | 40mm, 50mm, 40/70mm |

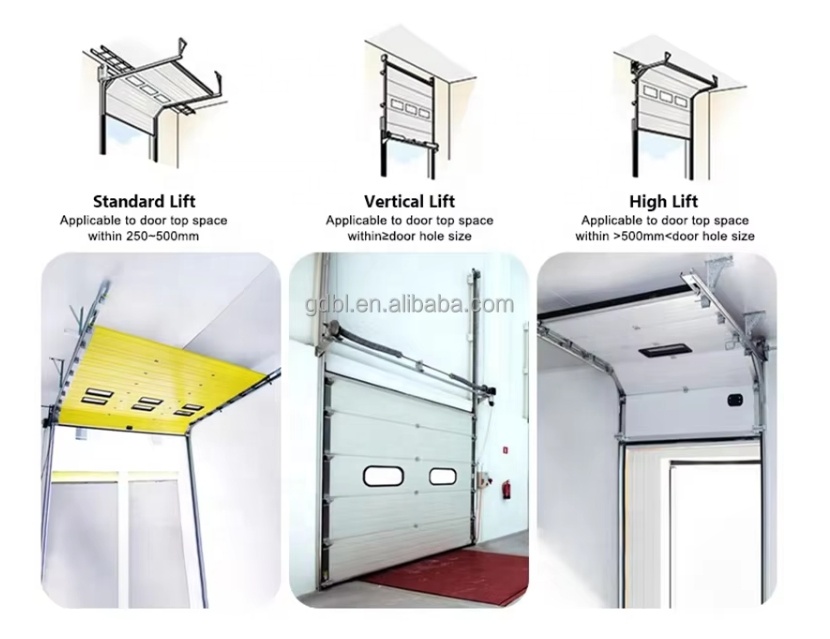

| Lift Methods | Vertical lift / Standard lift / High position lift / Special lift |

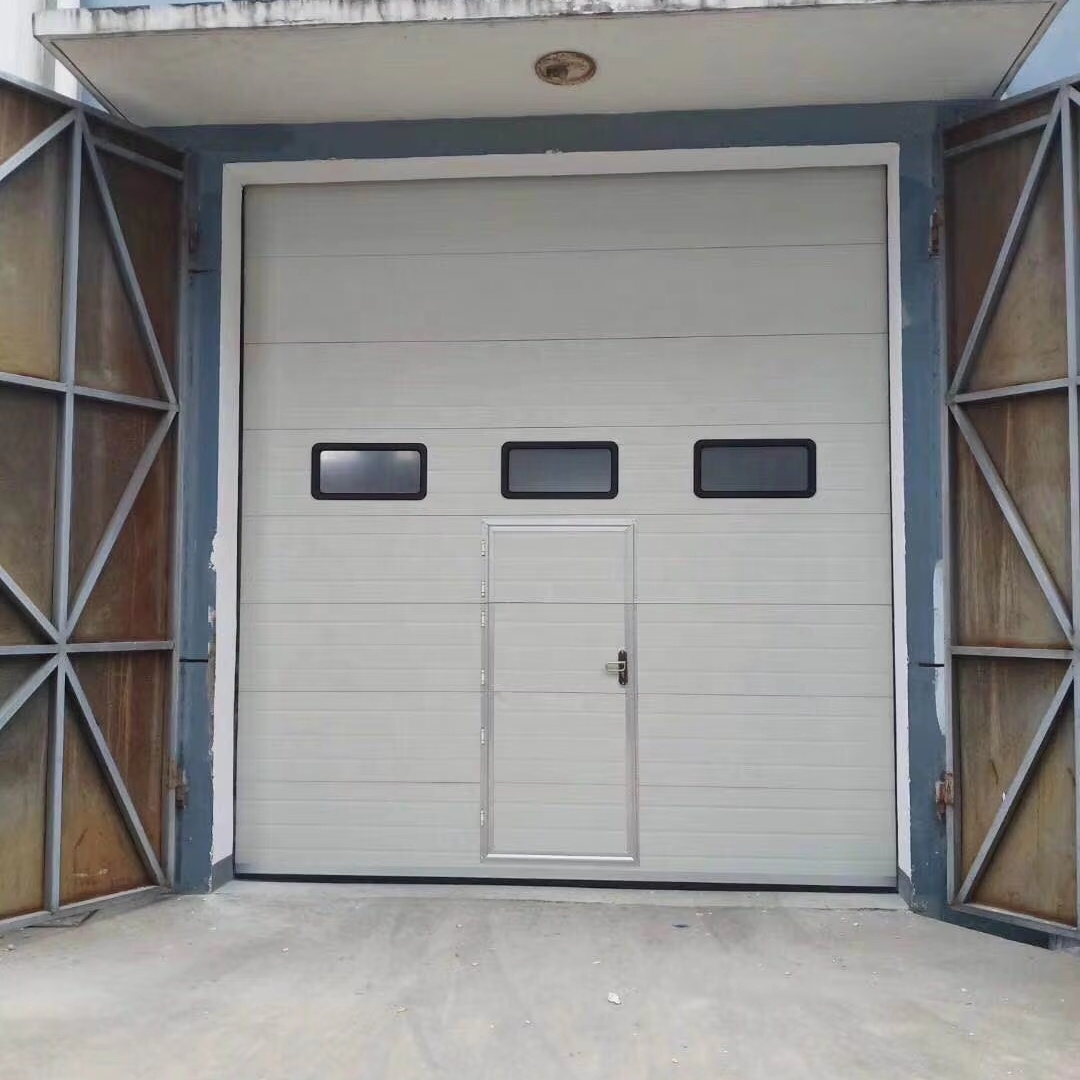

| Door Designs | Visible window / Door in door |

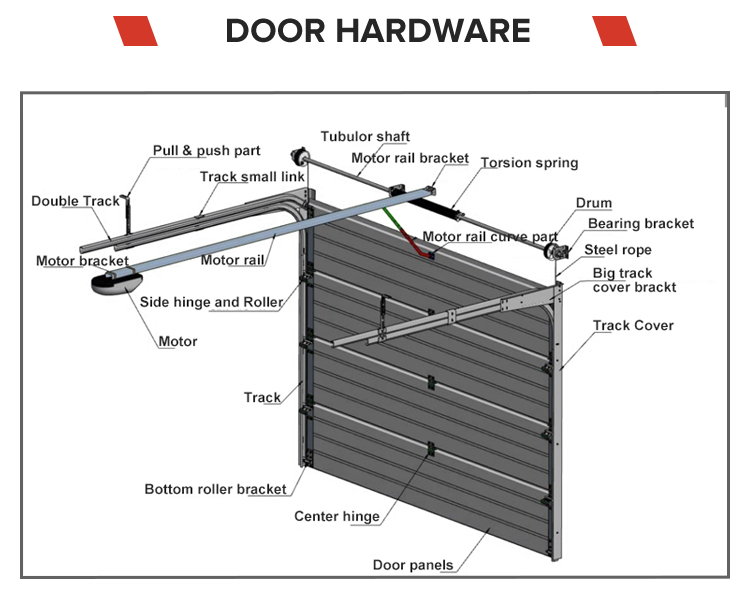

1. Double Track 2. Motor bracket 3. Pull & push part 4. Track small link 5. Motor rail 6. Side hinge and Roller 7. Motor 8. Tubular shaft 9. Motor rail bracket 10. Torsion spring 11. Motor rail curve part 12. Drum 13. Bearing bracket 14. Steel rope 15. Big track cover bracket 16. Track Cover 17. Track 18. Bottom roller bracket 19. Center hinge 20. Door panels

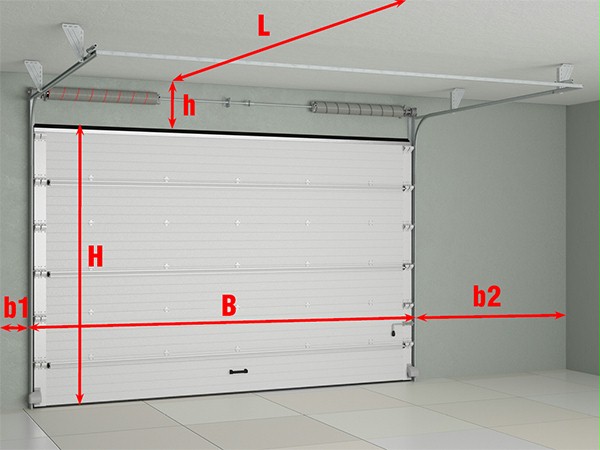

Measurements should be taken indoors at three different points:
Note: For H and B, use the maximum value. For h, b1, b2, and L, use the minimum value.
We offer different packing options to meet customer requirements:
