Motion Sensor is ideal for automatic industrial doors, vehicle gates / barriers, vehicle detection where motion detection is required. Industrial Door Motion Sensors are the premier microwave activation solution for indoor and outdoor industrial applications.
Our sensor family is ideal for automatic industrial doors, vehicle gates / barriers, vehicle detection, loading docks or any other industrial application where motion detection is required.

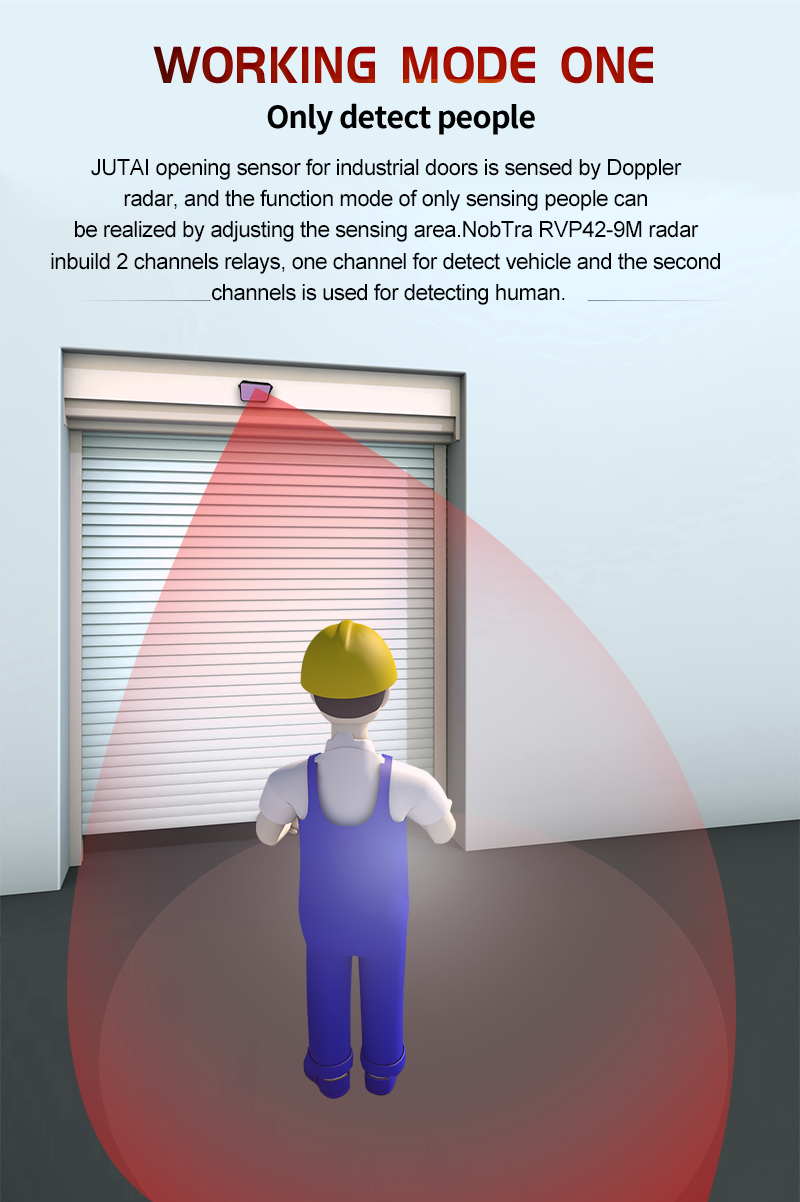

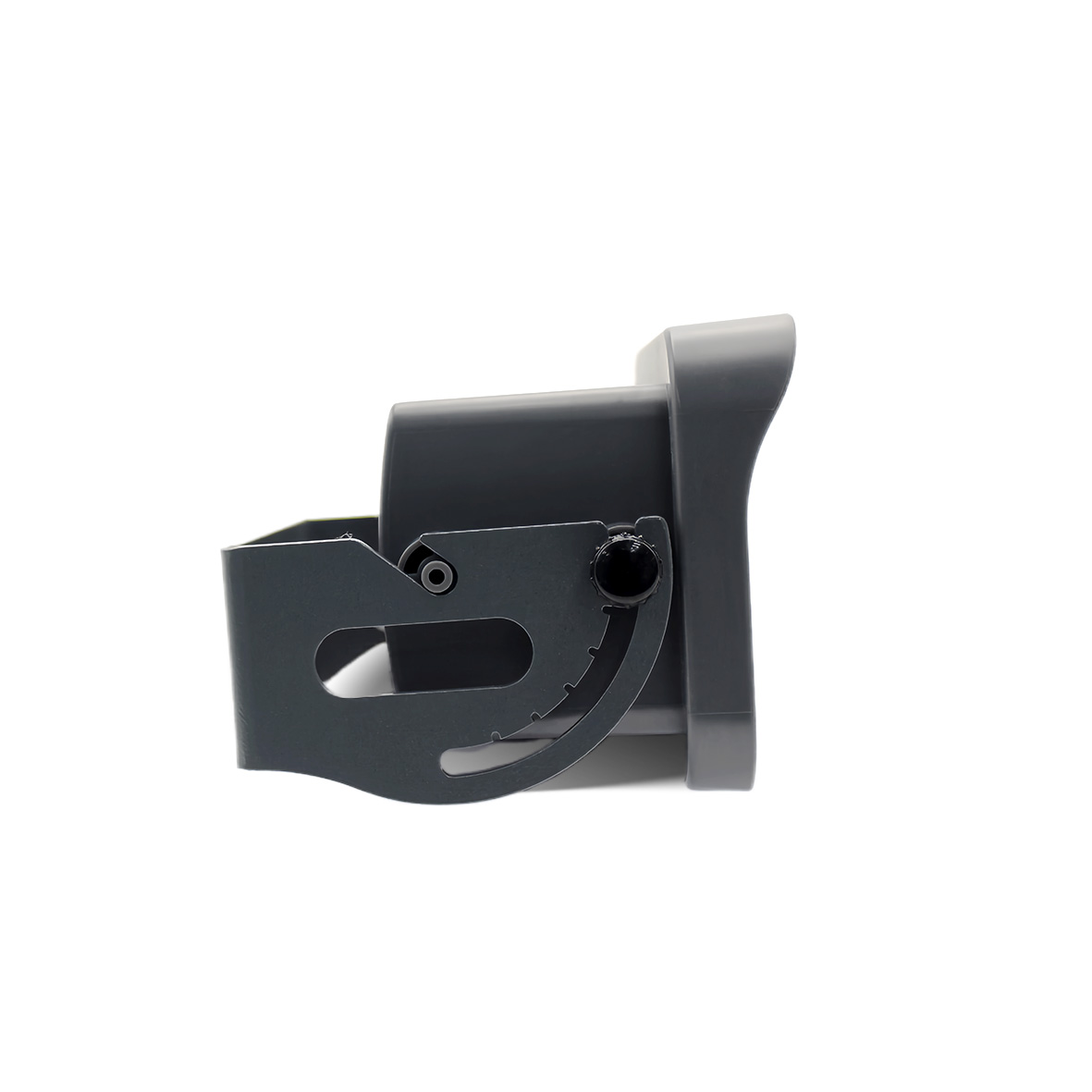

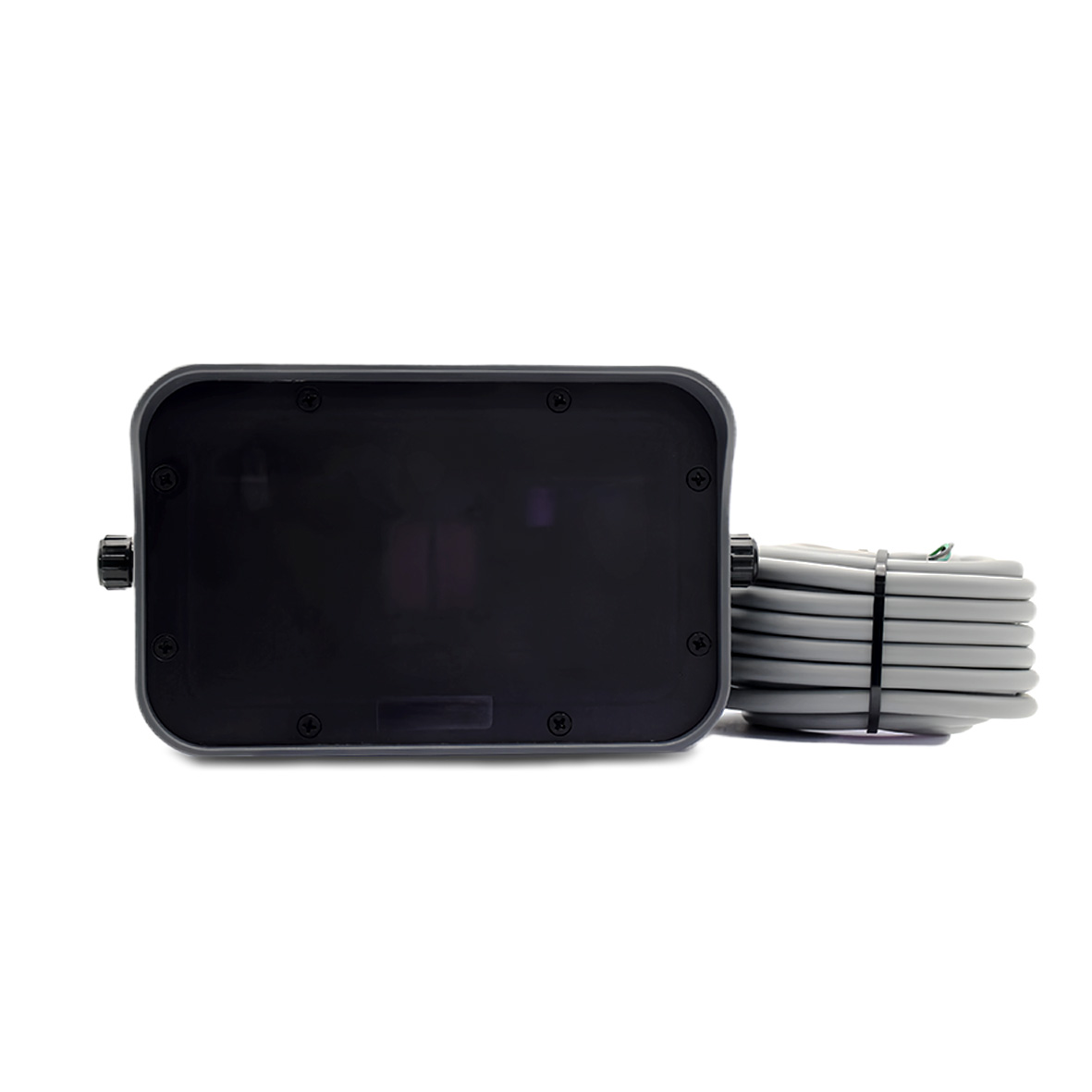

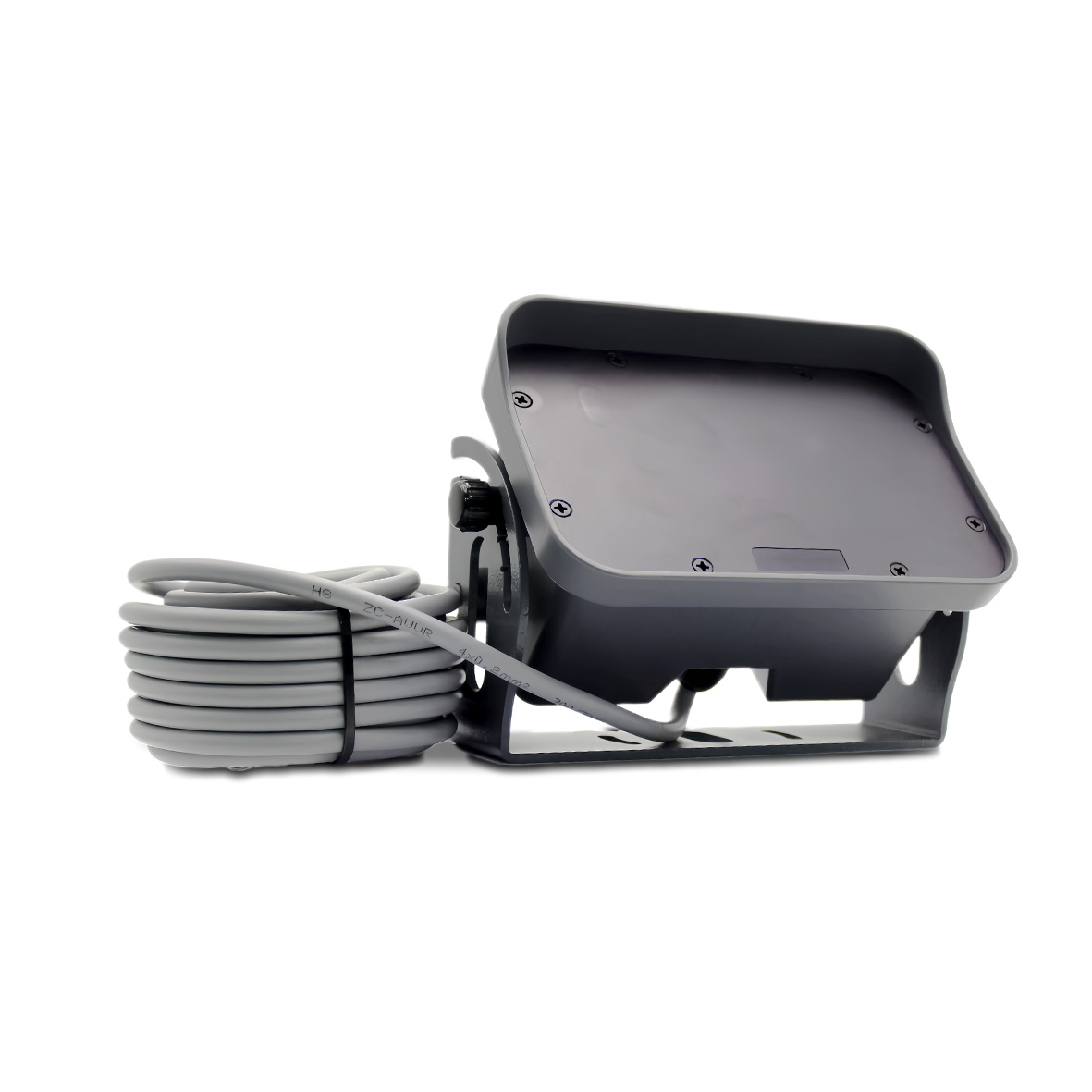

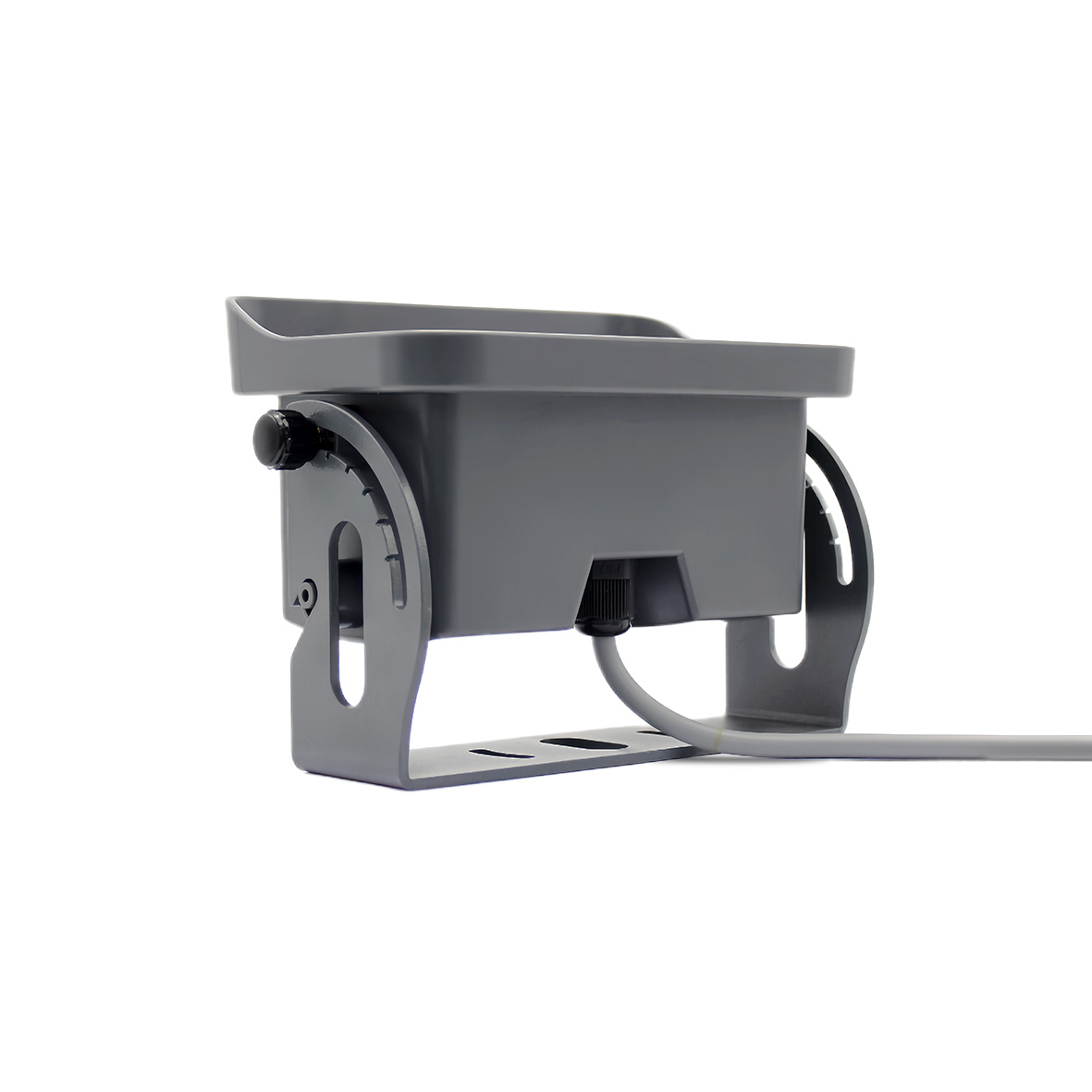

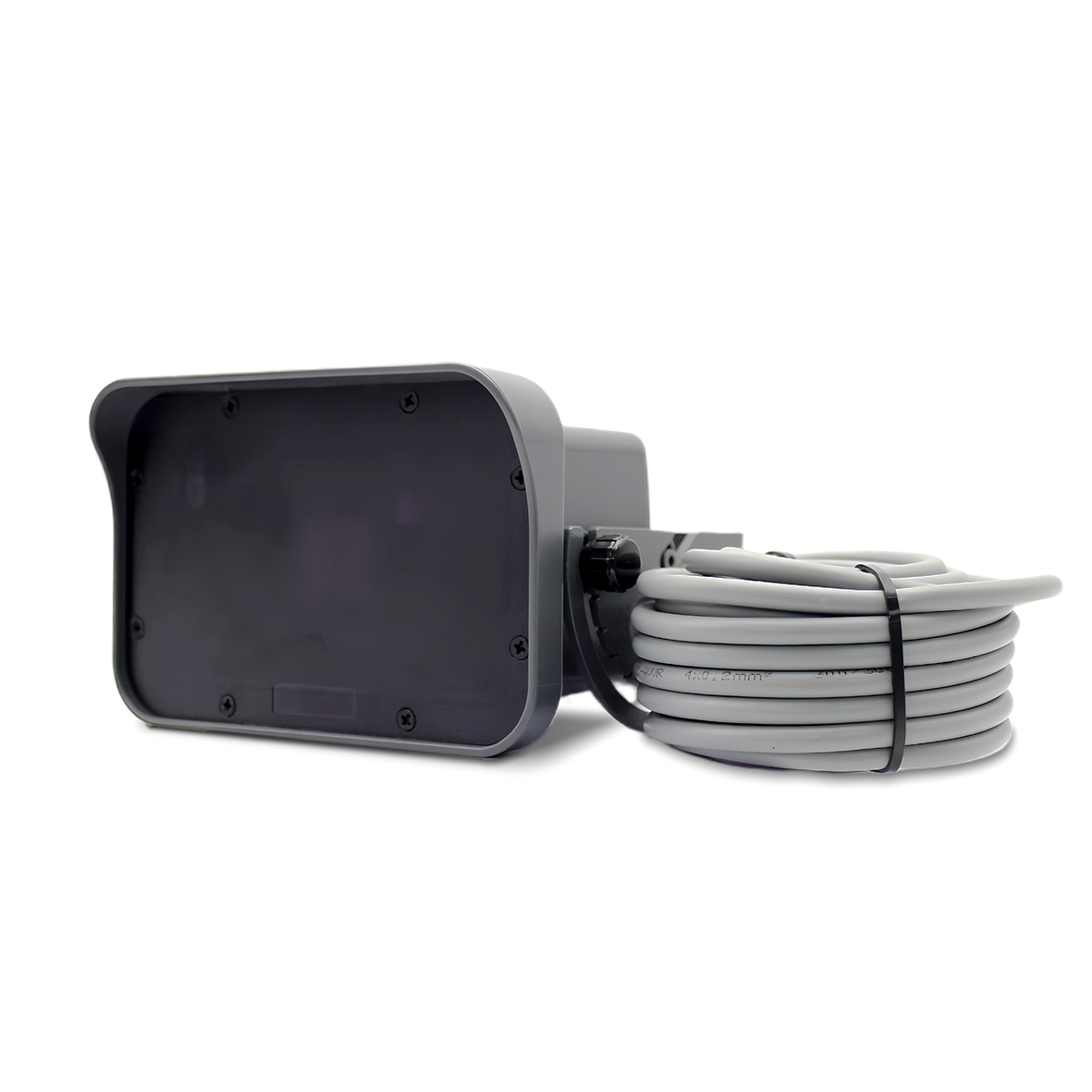

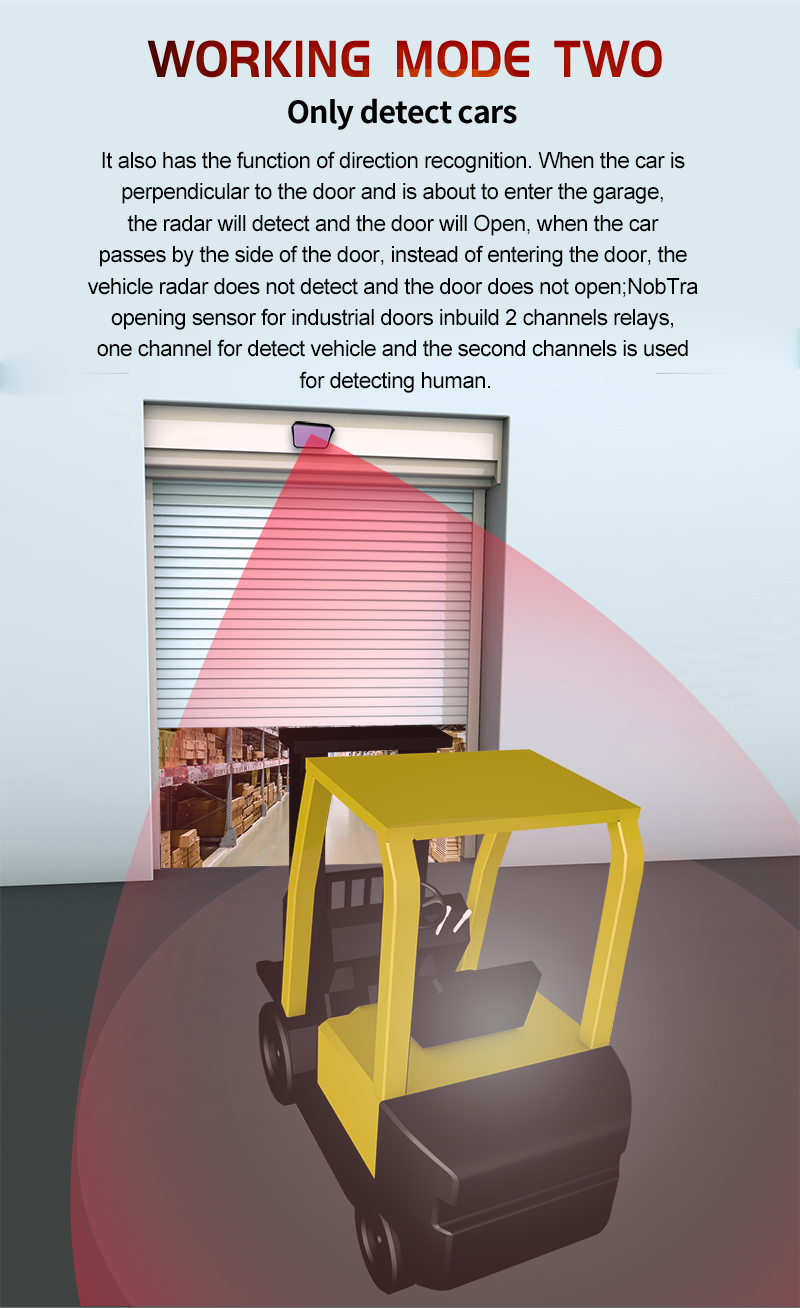

RVP42-7M is a high-performance pedestrian-vehicle separation radar developed for industrial doors, garage doors, cold storage doors, gates and other industries, which can distinguish between vehicles and pedestrians individually, and can also turn on the corresponding relay outputs separately as needed while the RVP42-7M has a recognition filtering function for vehicles or pedestrians moving horizontally.
| Item | Value |
|---|---|
| Mounting Type | Top installation |
| Description | Industrial door sensor |
| Model Number | RVP42-7M |
| Type | Motion & Position Sensor |
| Use | Industrial door opening |
| Output | NO NC COM |
| Technology | Doppler radar with planar module |
| Frequency | 24.05-24.25GHz |
| Firing Power | Less than 20dBm |
| Working Voltage | 12-36VDC, 12-28VAC |
| Working Current | Max 75mA |
| Temperature | -30 to +60 |
| Mounted Height | 2-7m |
| Waterproof | IP65 |
| Max Detection Speed | 25km/h for vehicle |
| Cable | 10m long, 6 x 0.20mm² |

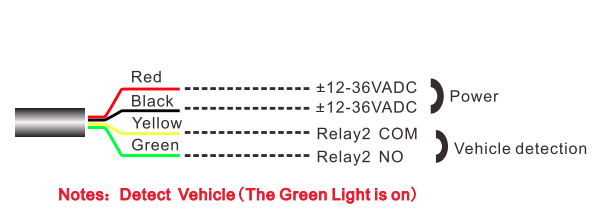

Diagram Connection:

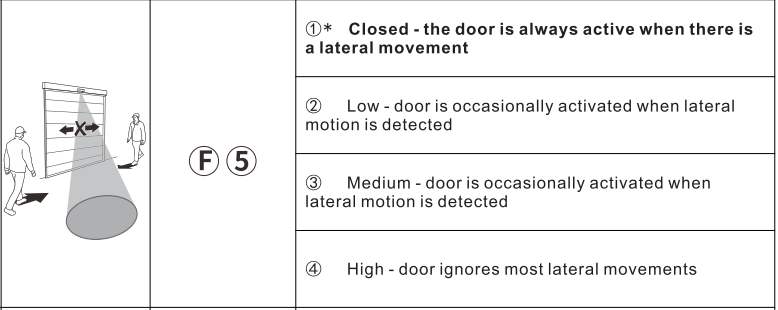

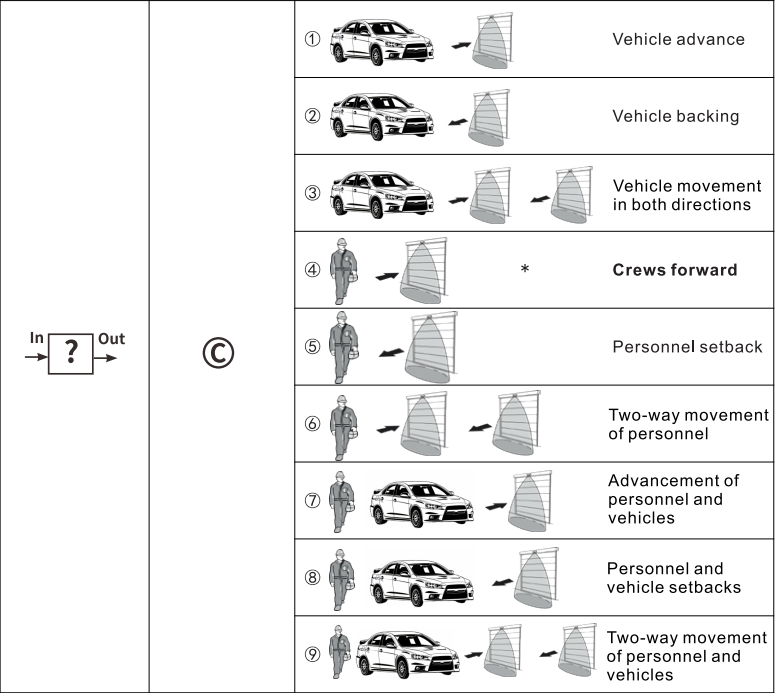

Functional Overviews:

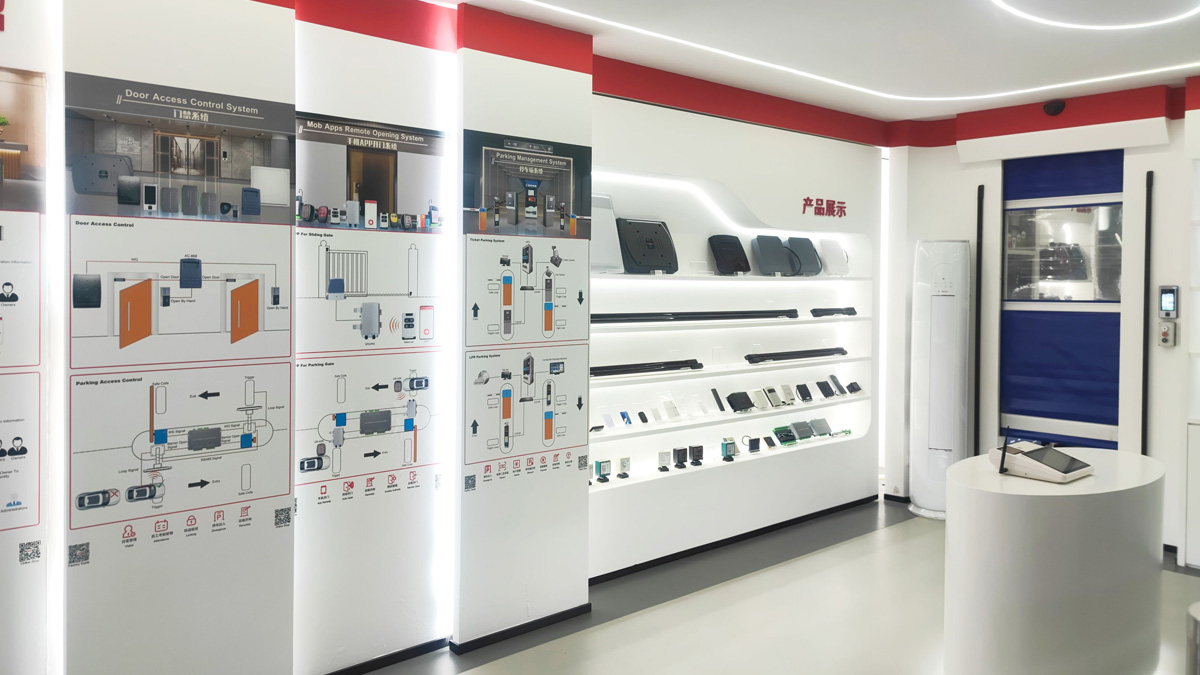

We are committed to developing a series of gates/doors opening entrance system solutions and gate safety. Products for free-access mode: Motion sensors, gate buttons and vehicle detectors. Products for access-manage mode: Keypad or PIN Code, remote control, face Recognition, RFID Card, QR code, ANPR and smart phone APP.
The project solutions include parking management systems, card reader access control systems, visitor management systems, automatic door access remote control systems, and large-scale cloud software management platforms.
