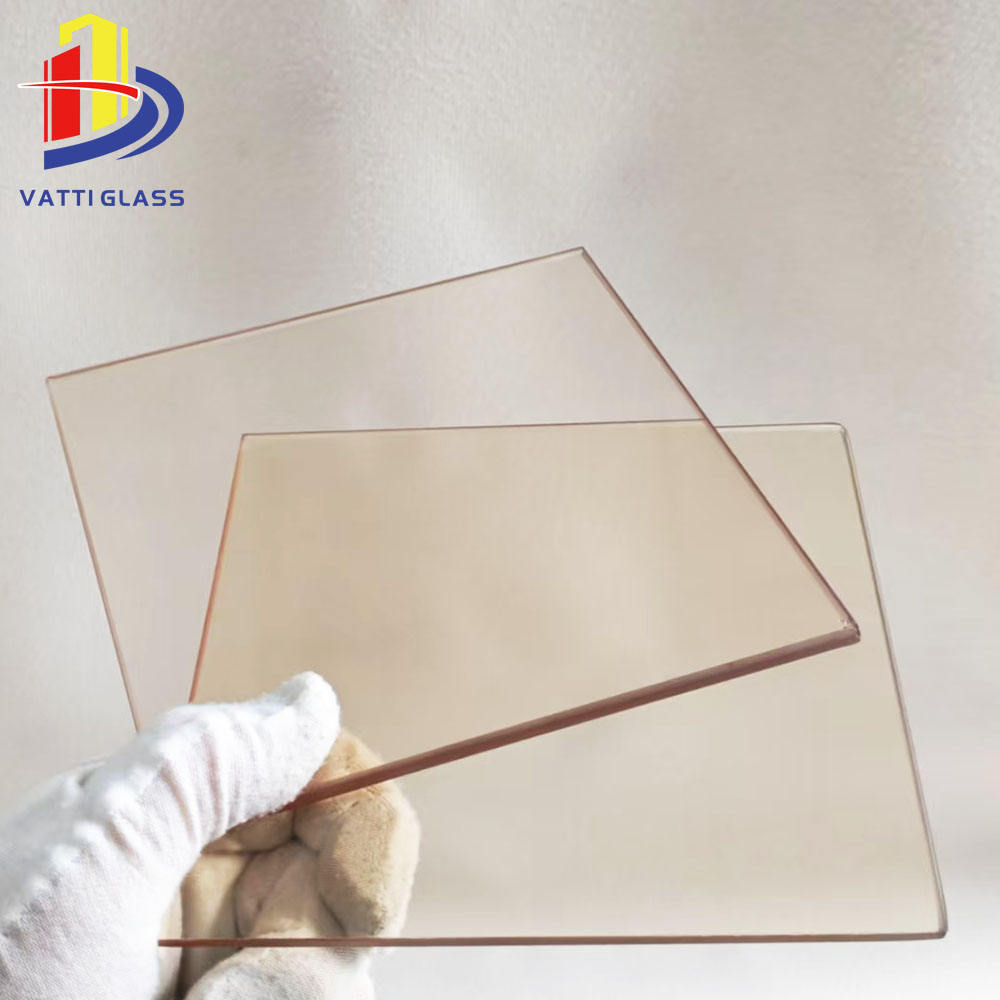

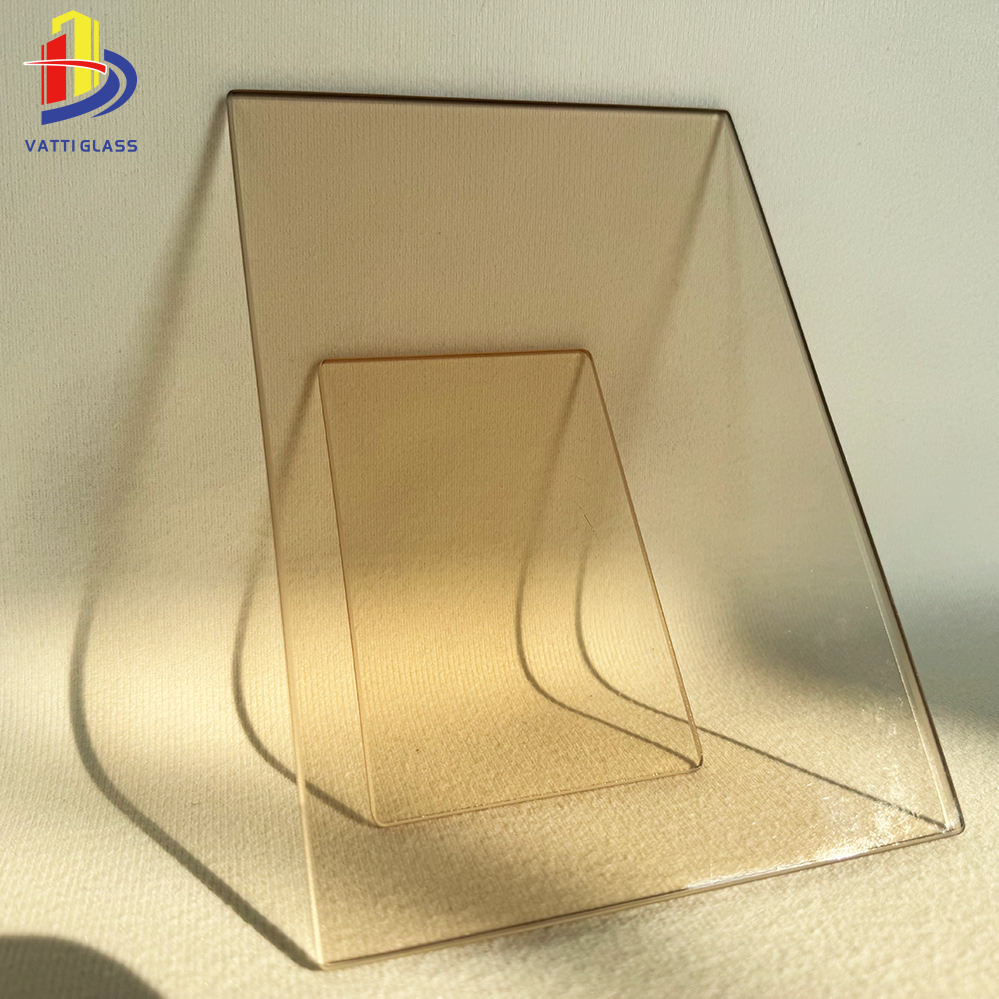

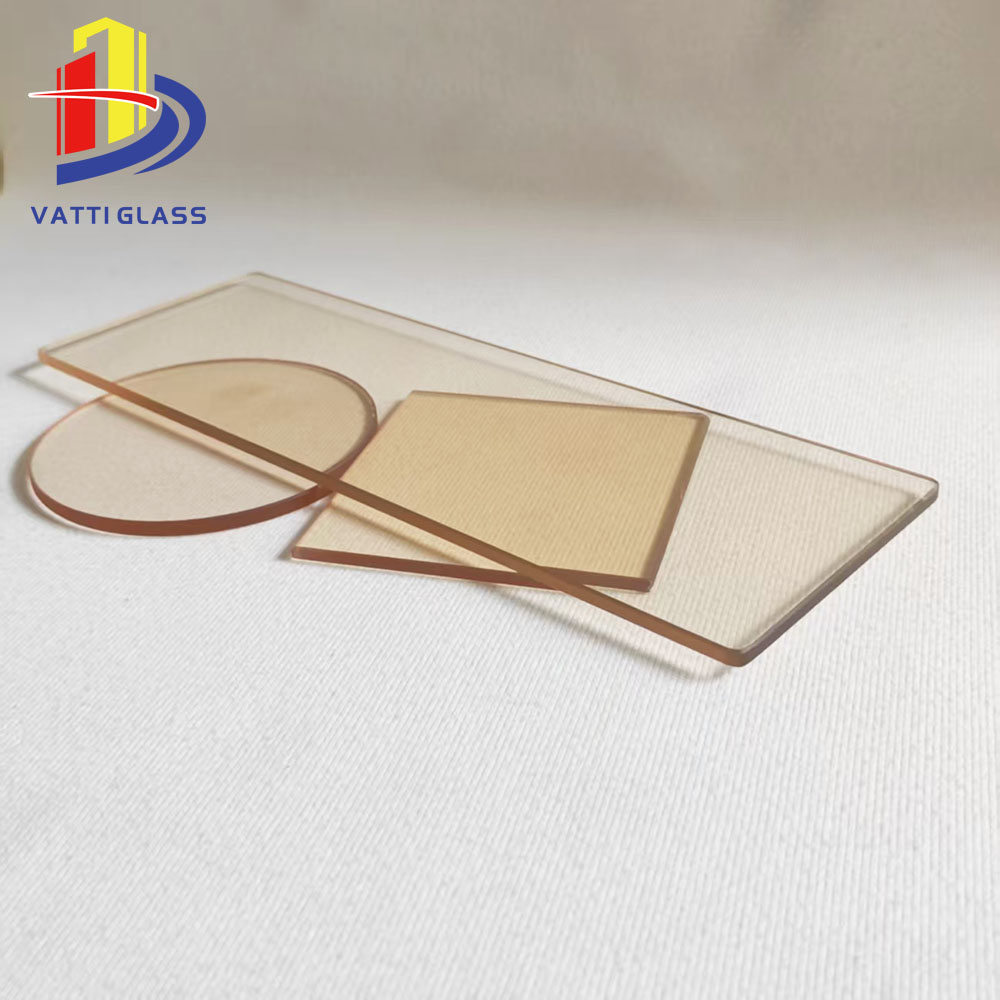

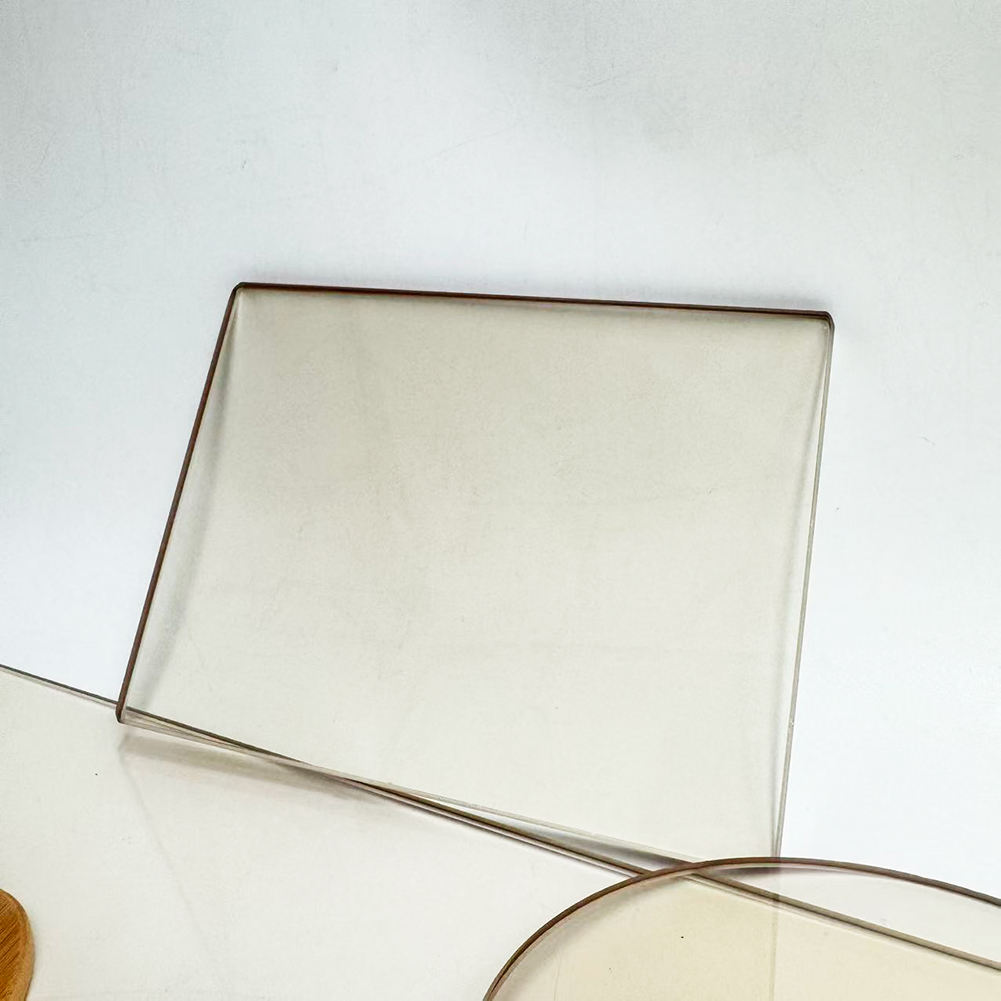

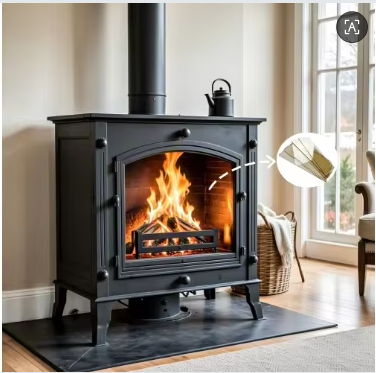

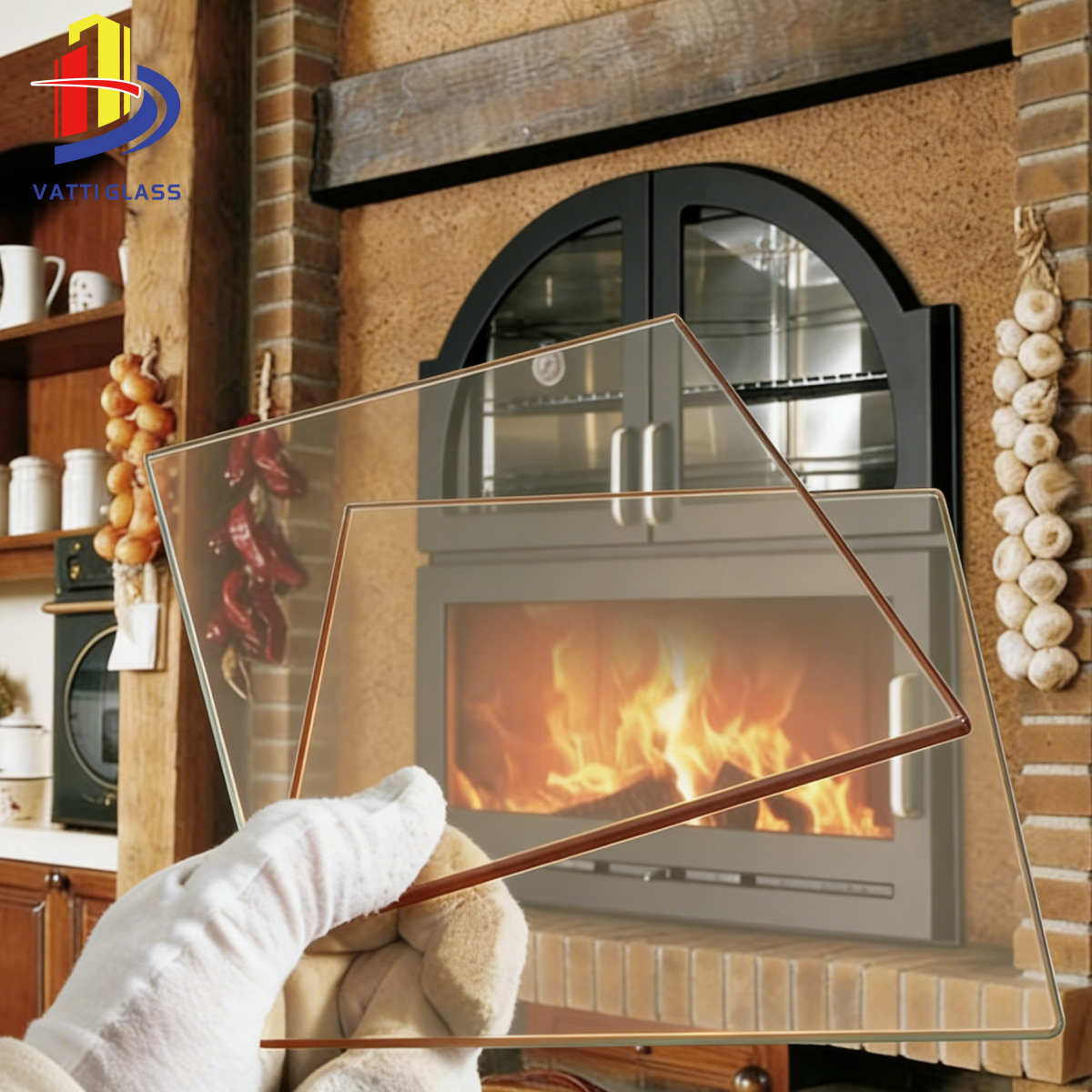

1. Transparent Microcrystalline Glass: Used as the viewing window of fireplaces, enabling a clear view of the flames.
High temperature resistance and thermal stability: The working point is 750℃—850℃. The coefficient of thermal expansion is extremely low (close to zero expansion), and it does not crack in sudden cooling and heating environments.

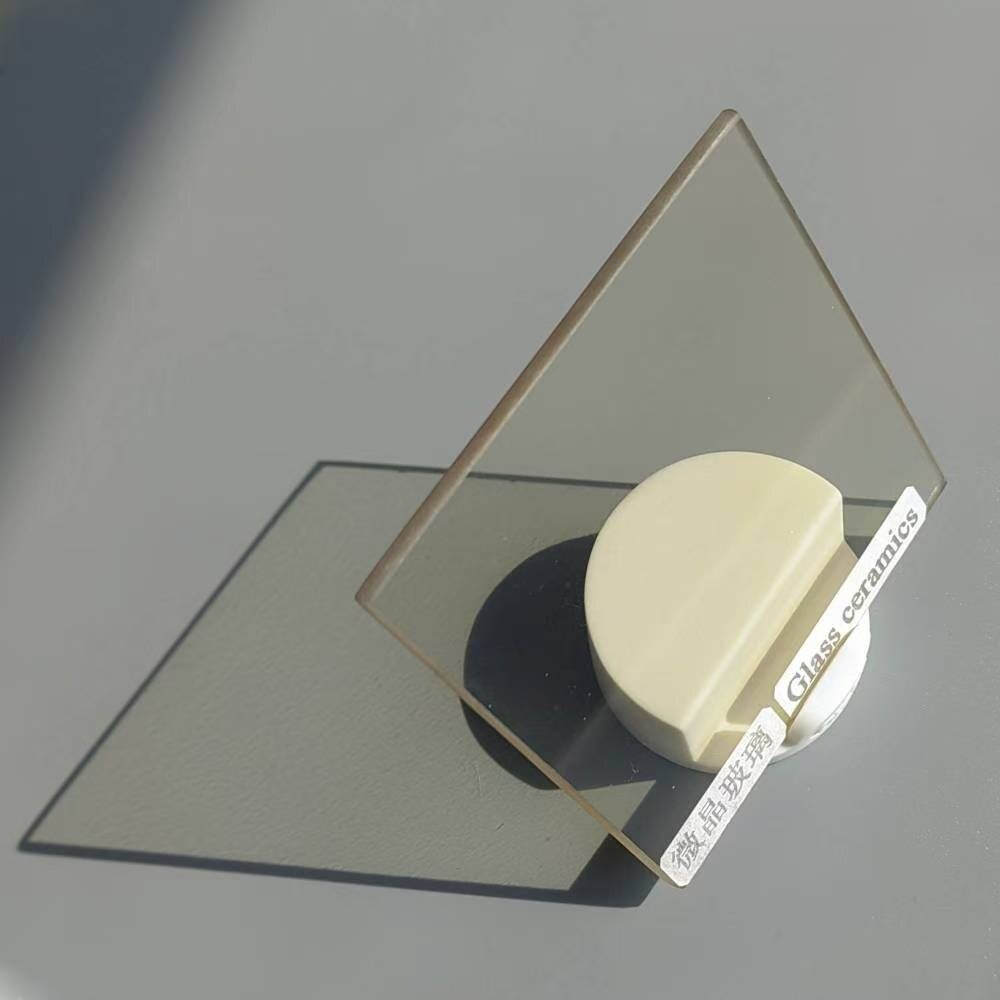

2. Industrial Applications: Used in industrial heating equipment for components such as insulation panels. Features over 90% light transmittance and customizable matte or glossy effects.
3. Fire Resistance: High fire resistance for fireproof doors and windows in public places. Strong chemical stability against acid and alkali corrosion.

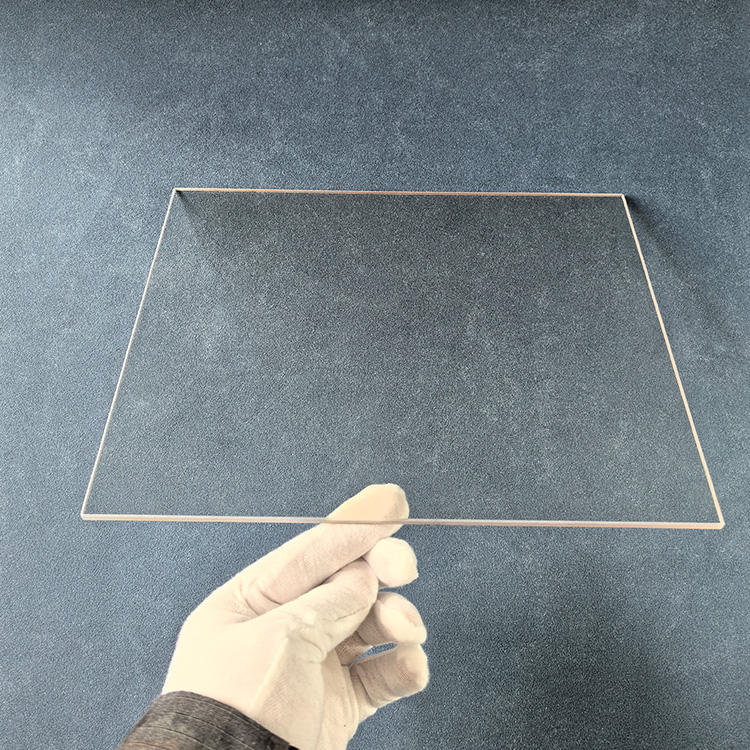

4. Cooking Plates: Ideal for induction/infrared cooking plates, withstanding rapid temperature rises up to 750°C with excellent thermal conductivity.
| Item | Parameter |
|---|---|
| Bending Strength | 180 - 220 MPa |
| Coefficient of Thermal Expansion (-50-600℃) | ±8×10-7/℃ |
| Work Temperature | ≥750 ℃, ≤850℃ |
| Thickness | 4mm, 5mm |
| Size | 1954*1100mm / Customization |

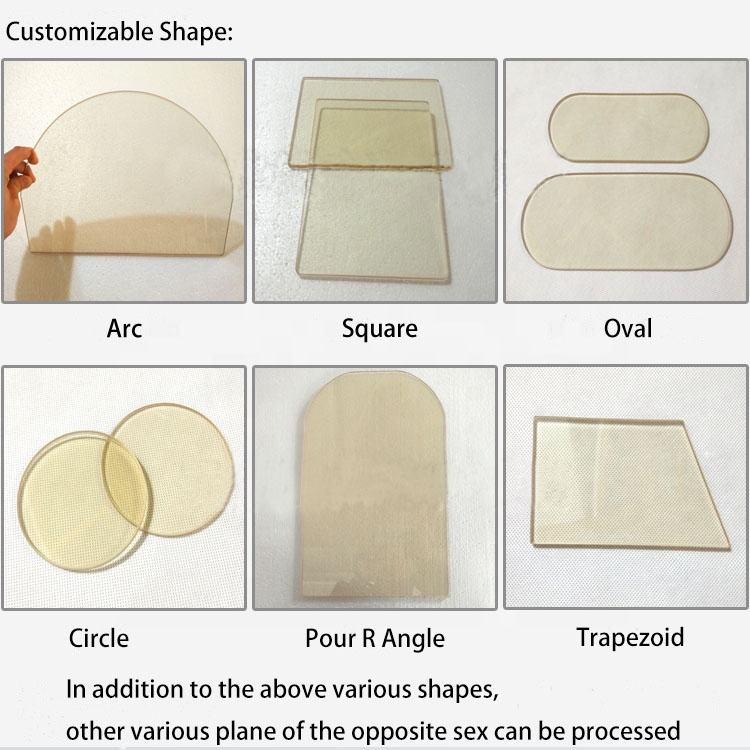

| Deep Process | Polished, Edge Grinding, Safety corner, Bend |
| Density | 2.5±0.1g/cm2 |
| Water resistant | ISO719/DIN12111 HGB1 |
| Acid resistant | ISO1776/DIN12116 3 |
| Alkalinity resistant | IS0695/DIN52322 A2 |
We are a modern enterprise specializing in the research, development, production, and export of high-end glass products. With years of industry expertise, we provide premium furniture glass, industrial glass, and architectural glass.

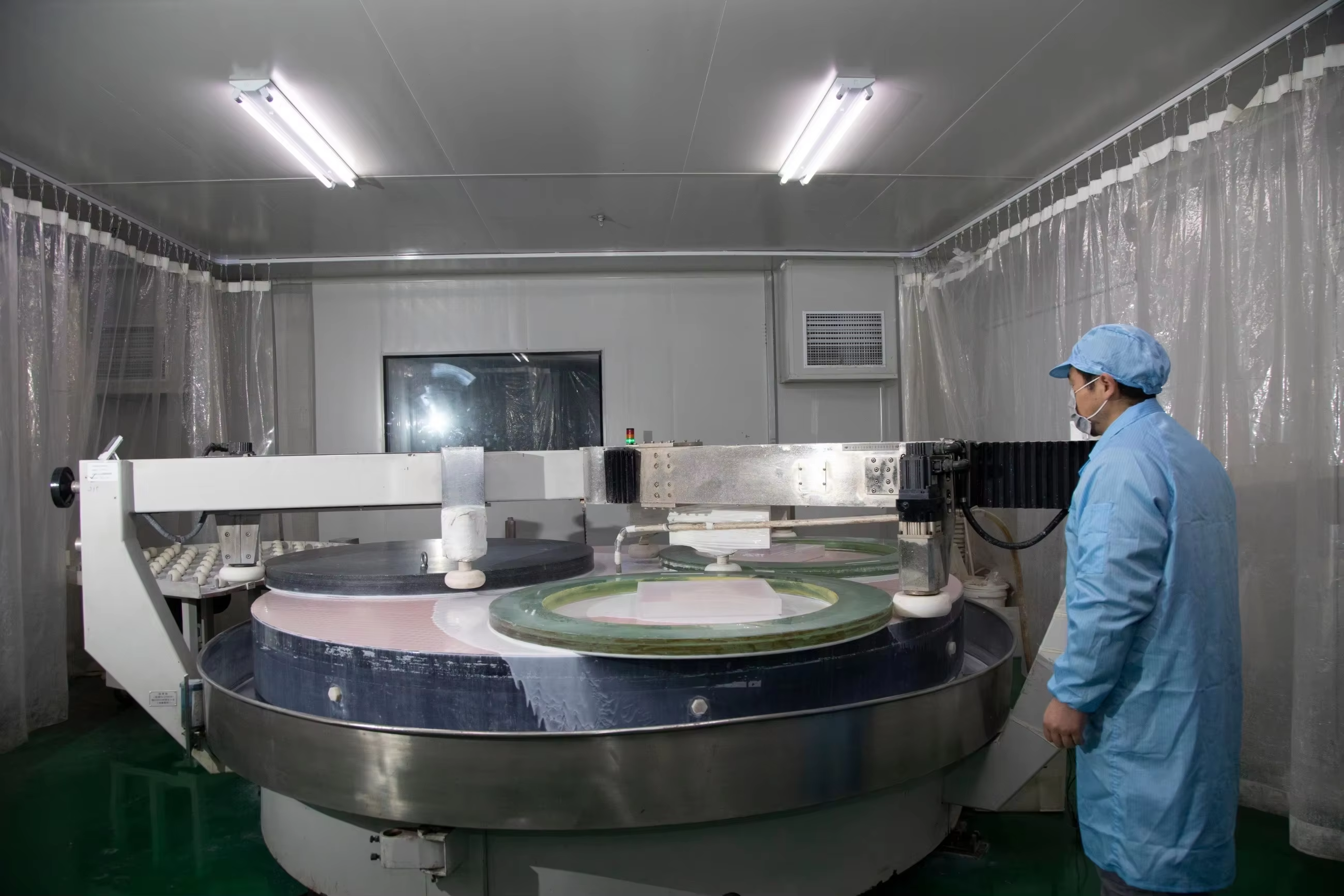

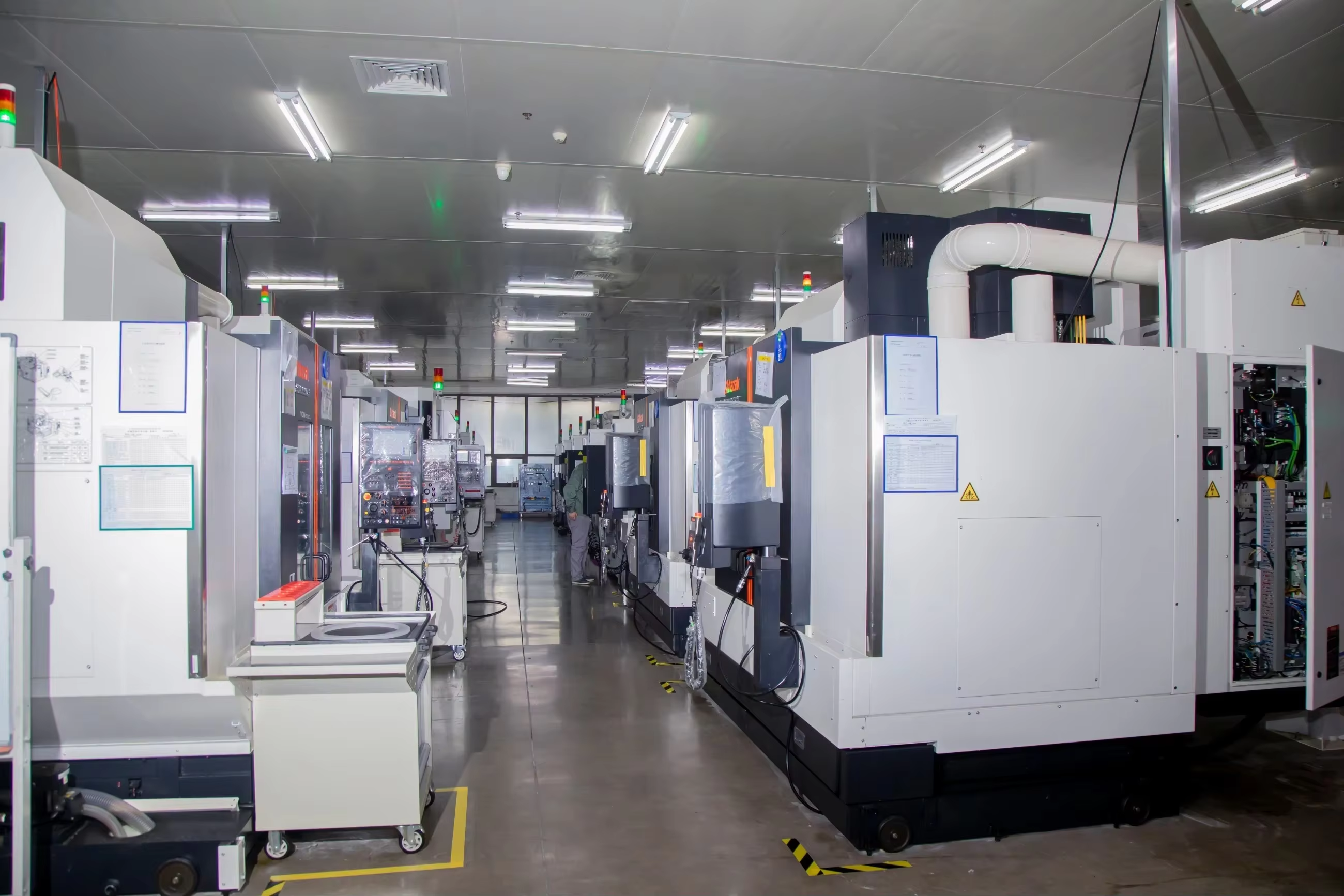

Our production facilities include imported cutting machines and tempering furnaces, utilizing advanced processes such as screen printing, glaze spraying, and laser engraving. Our products meet international standards including ISO9001, CE, and FDA.
A variety of transport methods for your principle of wooden packing can better protect the glass.
